3M Products & Supplies

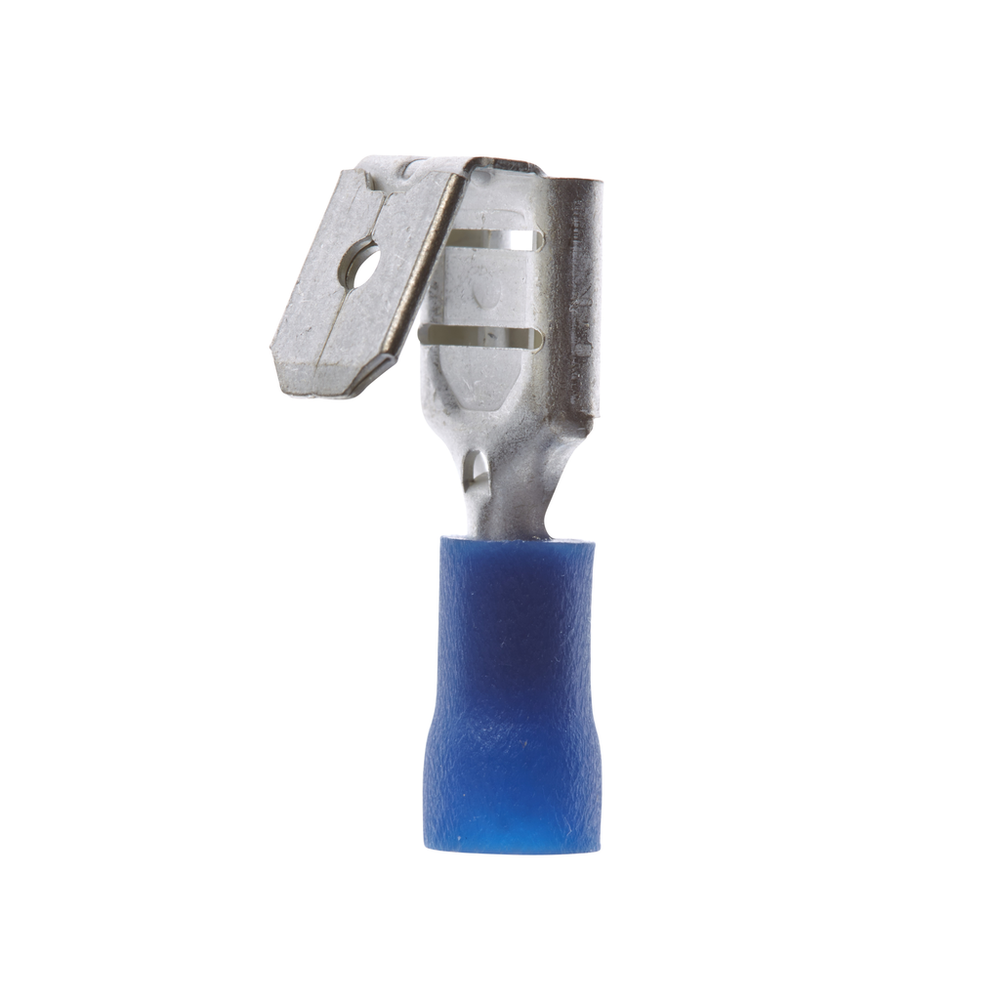

3M™ Nylon Insulated with Insulation Grip Multi-Stack Disconnect, 772-250-NB-A, Max. Temp. -40 to 221 °F (-40 to 105 °C) - 7100165165

Sold As: 1000-Pack
SKU: 7100165165
MPN: 7100165165
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138980665
3M ID: 80611444110
MPN: 772-250-NB-A
$269.72 ($0.27 / Count)
Hurry up! Current stock:

Product Description

3M™ Male-Female Disconnect Terminal has a tongue portion with fingers that grip a male quick-slide and a tongue extension that is to be gripped by a female quick-slide. This is a multi-stack disconnect terminal with a nylon-insulated, butted-seam barrel. It has durable brass construction for good conductivity and a tin-plated finish for corrosion resistance.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • RoHS 2011/65/EU Compliant
  • Connects a male or female counterpart
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating

Downloads

Specifications

RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Imperial)16 AWG
Minimum Conductor Size (Metric)1.5 mm²
Connection Width (Imperial)0.25
Connection Width (Imperial) UOMin
Connection Width (Metric)6.35
Maximum Conductor Size (Metric)2.5 mm²
Connection Width (Metric) UOMmm
Terminal TypeDisconnect
Country of OriginTaiwan
Maximum Conductor Size (Imperial)14 AWG
