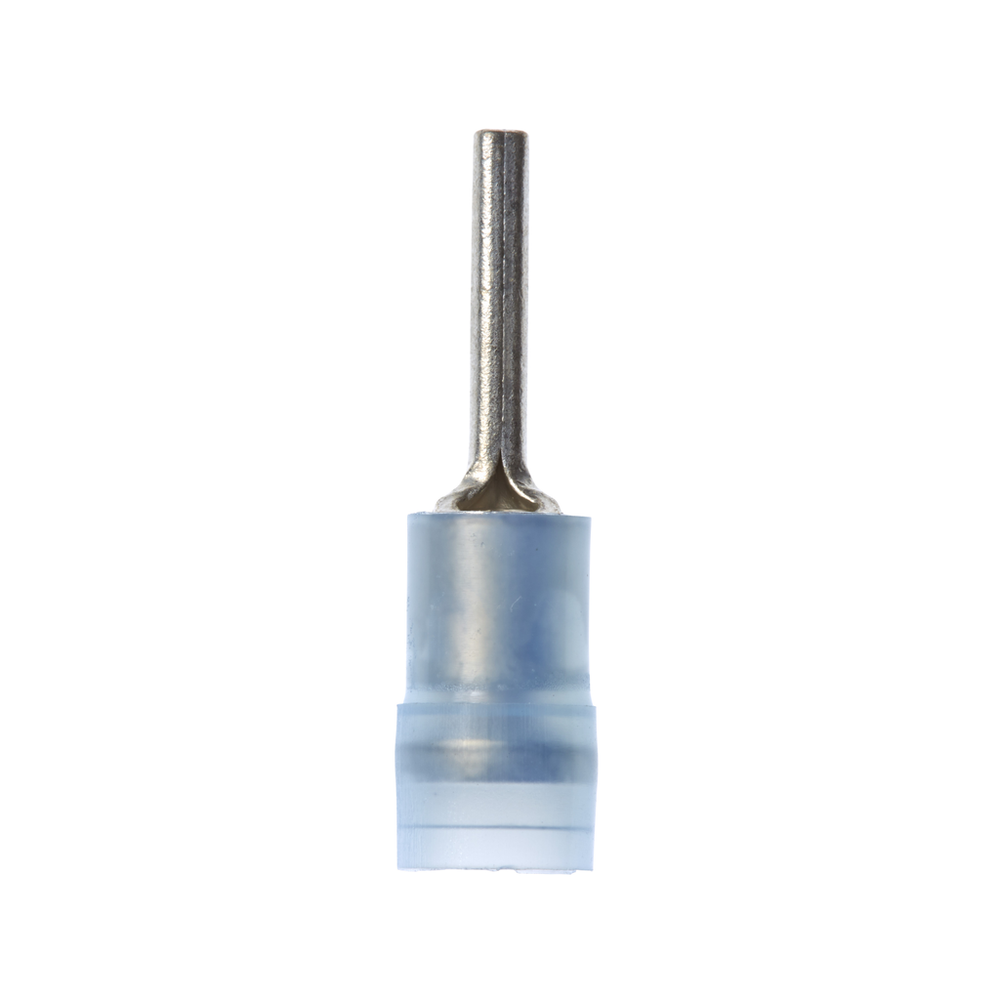

3M™ Nylon Insulated with Insulation Grip Pin Terminal, 82P-47-NB-A - 7100165197

Sold As: 1000-Pack
SKU: 7100165197
MPN: 7100165197
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138981655
3M ID: 80611445109
MPN: 82P-47-NB-A
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

3M™ Pin Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Provides quick connection for set screws or clamps that are used to make electrical contact
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Terminal TypePin
Connection Width (Metric) UOMmm
Connection Width (Imperial)0.47
Minimum Conductor Size (Metric)1.5 mm²
Connection Width (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
Connection Width (Metric)11.938
Country of OriginTaiwan
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Imperial)14 AWG
Maximum Conductor Size (Metric)2.5 mm²
