3M Products & Supplies

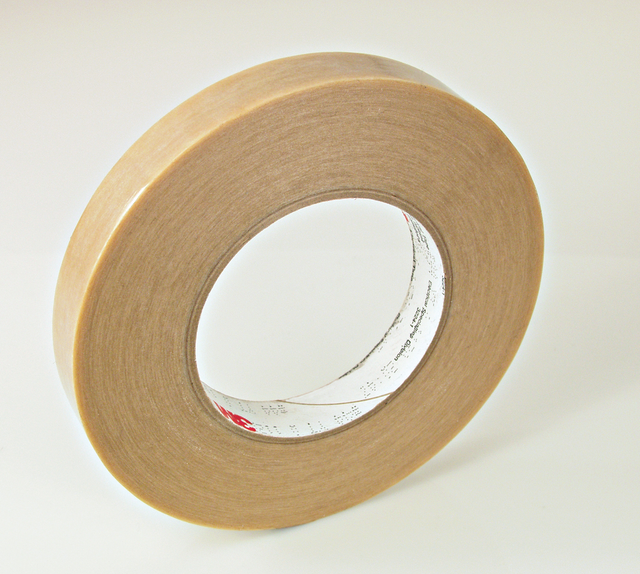

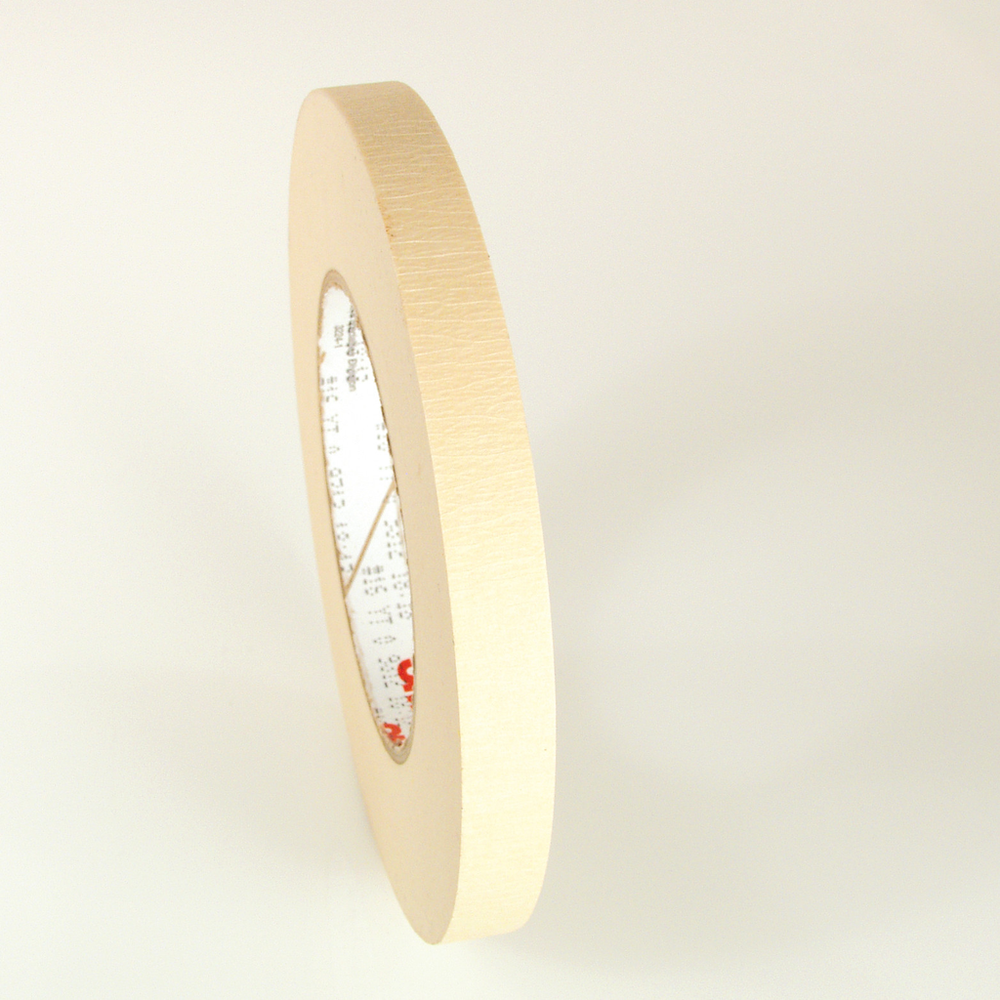

3M™ Paper Electrical Tape 12, 23-1/4 in x 60 yd, 3 in Paper Core, Log Roll, 1 Roll/Case - 7000006119

SKU: 7000006119
MPN: 7000006119
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138562366
3M ID: 80610918981
5 Digit UPC: 56236
$544.91 each
Hurry up! Current stock:

Product Description

3M™ 12 Flat Backed Paper Electrical Tape is used for banding coils and for cover on bobbin wound coils.

Features

  • Paper tapes provide good cushoning, puncture resistance and toughness
  • Pressure-sensitive, thermosetting rubber adhesive for secure adhesion
  • Comes in cream color
  • Flatback backing
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Total Tape Thickness without Liner (Metric)0.14
Backing (Carrier) Thickness (Metric) UOMmm
ApplicationInsulation
Backing (Carrier) MaterialPaper
Maximum Operating Temperature (Celsius)105.0
Product ColorCream
Overall Width (Imperial) UOMin
Overall Width (Metric)590.0
Overall Width (Imperial)23.27
Total Tape Thickness without Liner (Imperial)5.51
Overall Length (Metric) UOMm
Overall Width (Metric) UOMmm
Overall Length (Metric)55.0
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial) UOMmil
Specifications MetRoHS 2011/65/EU
Adhesive TypeThermosetting Rubber
Overall Length (Imperial)60.0
Shelf Life UOMYear
Backing (Carrier) Thickness (Metric)0.089
