3M Products & Supplies

3M™ Polycarbonate Carrier 3000, Prototype,13BPR6-4 , 8 mm x 250 m, 2 Rolls/Case - 7100195759

Sold As: 2-Pack
SKU: 7100195759
MPN: 7100195759
Lead Time: 58 working days.
UPC: 00051111904930
3M ID: XA006805080
5 Digit UPC: 90493
$170.82 ($85.41 / Count)
Hurry up! Current stock:

Product Description

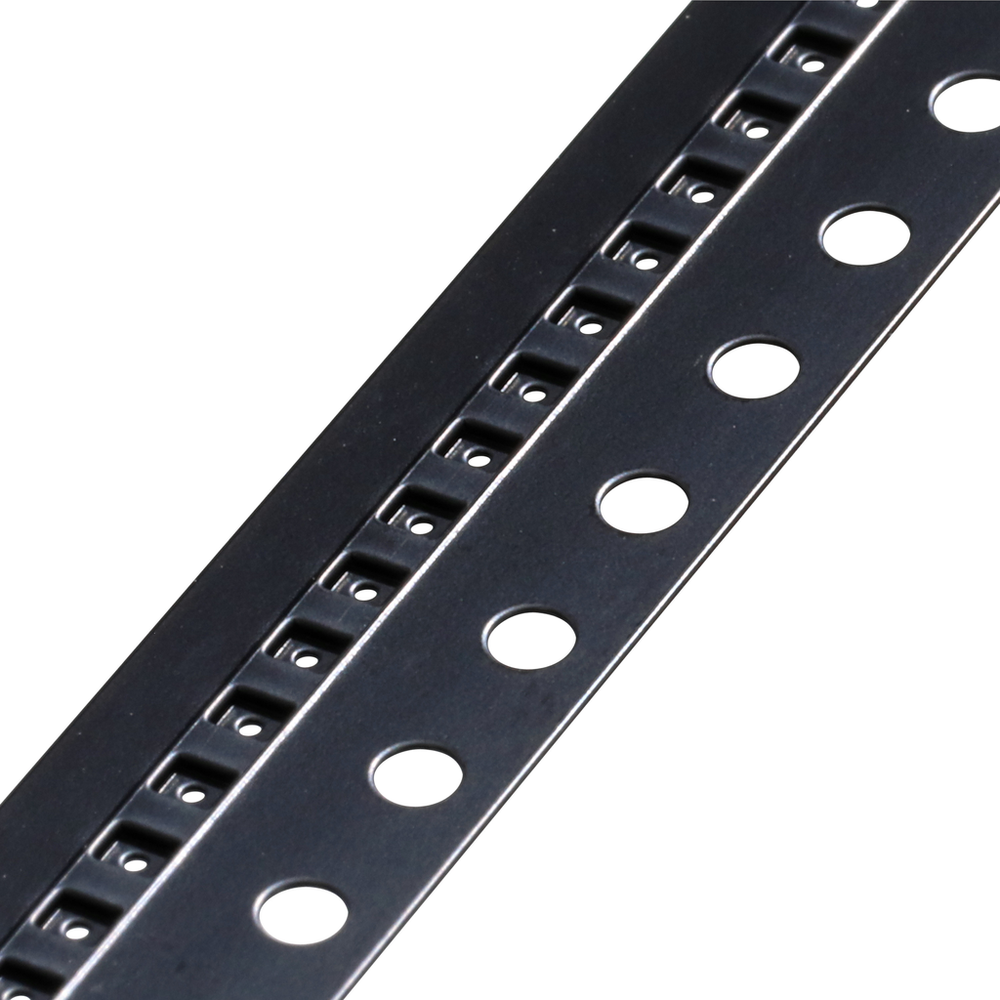

3M™ Polycarbonate Ultra Precision Carrier 3000UB is a black, splice free, polycarbonate carrier with typical surface resistivity of E5 ohms/sq.

Features

  • Same materials and physical characteristics as 3M™ Polycarbonate Carrier 3000; black, splice free, polycarbonate carrier with a typical surface resistivity at E5 ohms/sq., and precisely formed pockets to ensure component fit per ANSI/EIA guidelines
  • Recommended for small static-sensitive components requiring tight precision and cleanroom applications, such as packages of 1 mm x 1 mm or below
  • 3M carrier 3000UB is cleaned and packaged in a Class 10,000 cleanroom environment
  • Lower shrinkage percentage than such materials as polyester providing stable pocket dimension after formation
  • Tight pocket dimensional tolerance at +/- 0.03 mm with a small pocket hole of 0.12 mm - 0.2 mm featuring small draft angle and flat pocket bottom to contain component securely in pocket with less risk of tilting, flipping and rotating
  • Good impact strength and resistance for improved component protection

Specifications

Country of OriginSingapore
