3M Products & Supplies

3M™ Polyester Film Electrical Tape 1350F-1, 24 in x 72 yd Log, 3 in Paper Core, White, 1 Roll/Case - 7000132837

SKU: 7000132837
MPN: 7000132837
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128550793
3M ID: 80611088701
5 Digit UPC: 55079
$605.36 each
Hurry up! Current stock:

Product Description

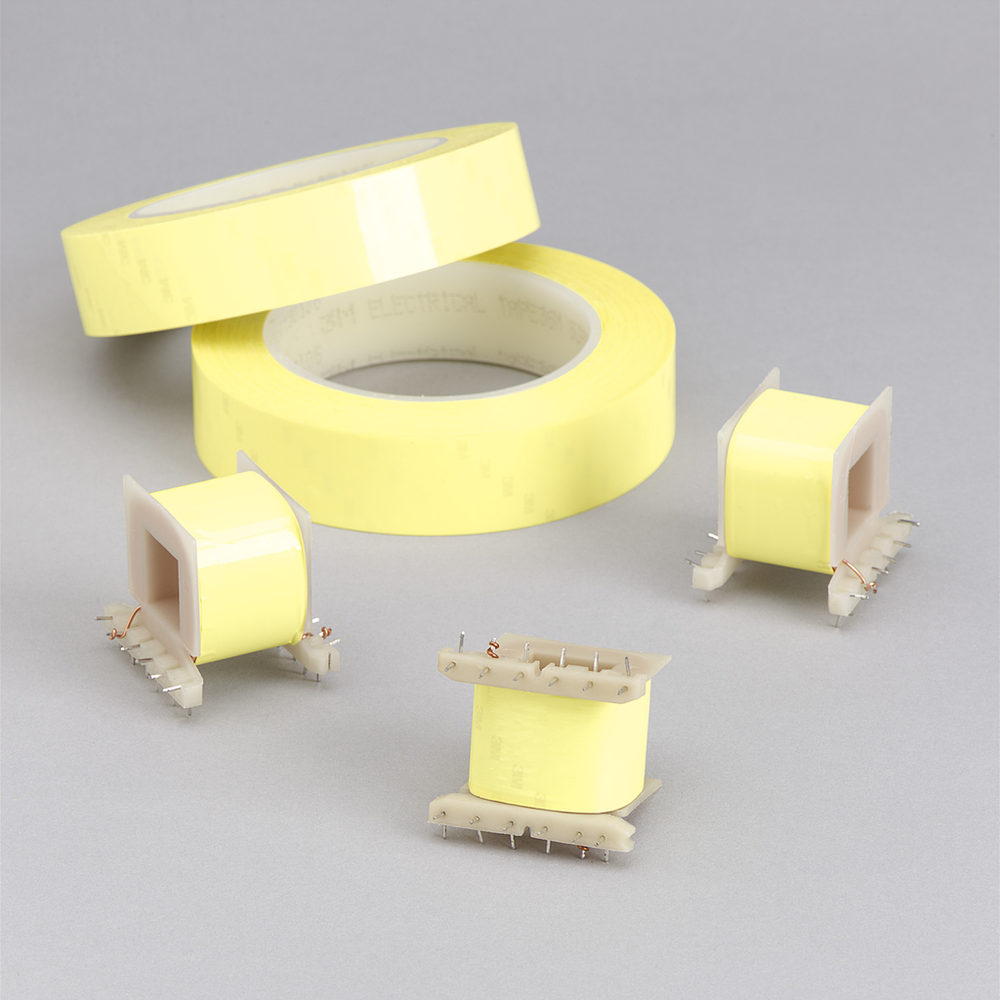

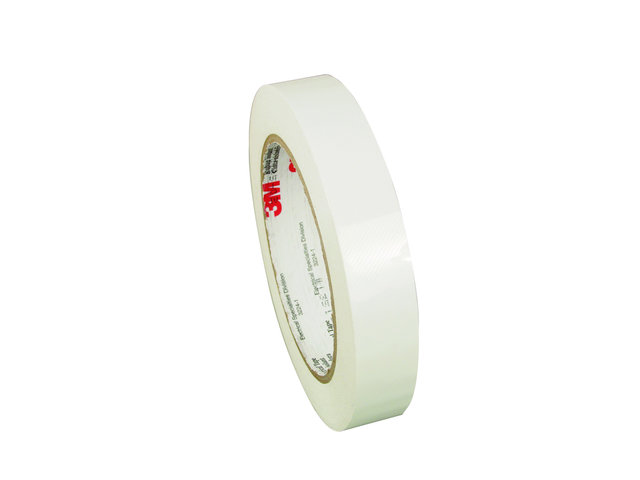

3M™ Polyester Film Electrical Tape 1350F-1 tape is a yellow, white, or black, UL recognized flame retardant, 2.5-mil (0.064 mm) thick tape composed of a 1-mil (0.025 mm) polyester film backing coated on one side with a non-corrosive, acrylic pressure-sensitive adhesive.

Features

  • UL Recognized and CSA certified 130°C temperature rating
  • Pressure-sensitive acrylic adhesive with polyester film backing
  • Nominal thickness: 0.064 mm (2.5 mil)
  • UL Recognized flame retardant
  • Printable
  • 5 year shelf-life when stored per 3M recommended conditions
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Total Tape Thickness without Liner (Imperial) UOMmil
Insulation Resistance> 10^6 megohms
Electrolytic Corrosion Factor1.0
Overall Width (Metric)609.6
Total Tape Thickness without Liner (Metric) UOMmm
Product MarketsElectrical Equipment Manufacturing
Product ColorWhite
Minimum Operating Temperature (Celsius)0.0
ApplicationInsulation
Maximum Operating Temperature (Fahrenheit)266.0
Tape GradeProfessional
Shelf Life UOMYear
Backing (Carrier) MaterialPolyester
Total Tape Thickness without Liner (Imperial)2.5
Adhesive TypeAcrylic
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric)0.064
Maximum Operating Temperature (Celsius) UOMDegree
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed
Overall Width (Imperial)24.0
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Dielectric Strength5500.0
Maximum Operating Temperature (Celsius)130.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit)32.0
Dielectric Strength UOMV
