3M Products & Supplies

3M™ Polyester Film Electrical Tape 54, 1/2 in X 72 yds, 3-in paper core, Bulk, 72 Rolls/Case - 7100033546

Sold As: 72-Pack
SKU: 7100033546
MPN: 7100033546
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128573167
3M ID: 80611439169
5 Digit UPC: 57316
$1,105.79 ($15.36 / Count)
Hurry up! Current stock:

Product Description

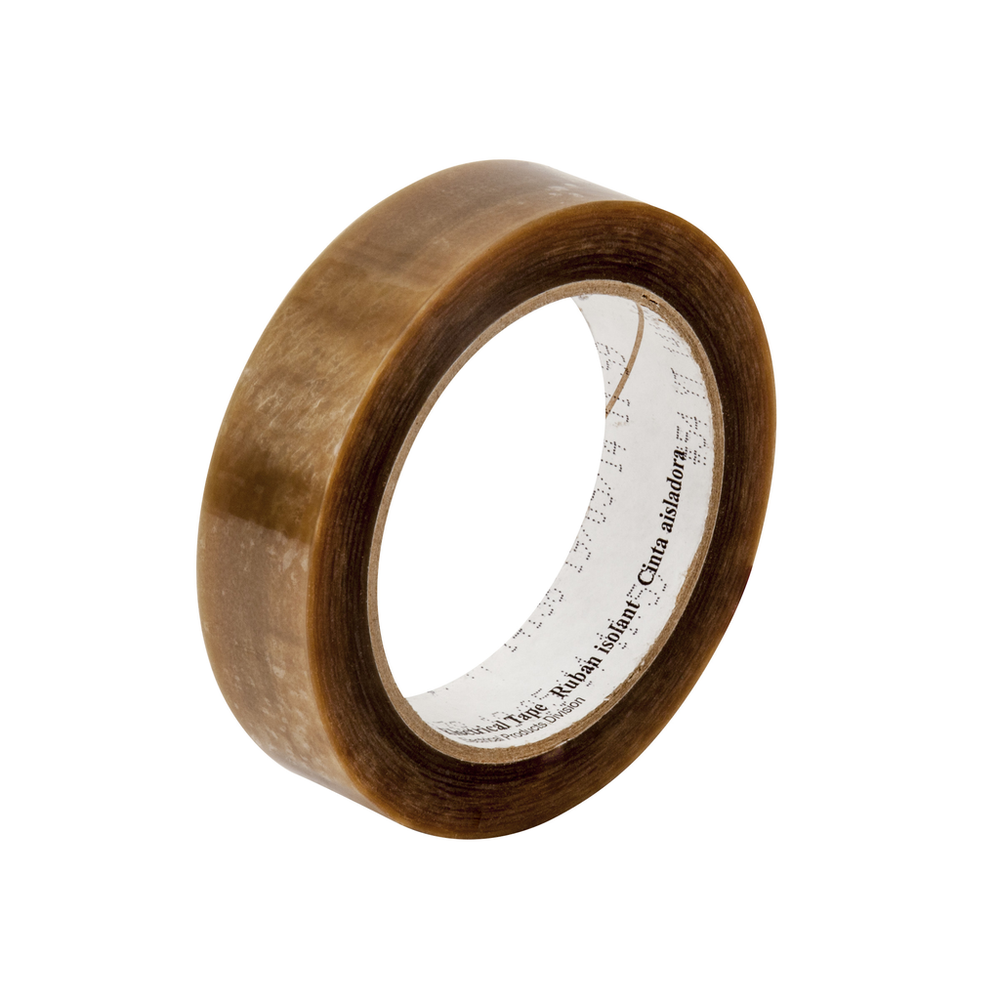

3M™ Tape 54 is a polyester film electrical tape that is suitable for wrapping fine wire coils. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • UL Listed and RoHS 2011/65/EU Compliant
  • Highly conformable with a thermosetting, rubber adhesive
  • Suitable for wrapping fine wire coils
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
  • General-purpose tape

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit) UOMDegree
Electrolytic Corrosion Factor1.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric)0.064
Maximum Operating Temperature (Celsius)130.0
Product ColorTransparent
Product MarketsElectrical Equipment Manufacturing
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)12.7
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Shelf Life UOMYear
Backing (Carrier) MaterialPolyester
Minimum Operating Temperature (Fahrenheit)32.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial)0.5
Specifications MetCSA Certified, RoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Adhesive TypeThermosetting Rubber
Total Tape Thickness without Liner (Imperial)2.5
ApplicationInsulation
Maximum Operating Temperature (Fahrenheit)266.0
Minimum Operating Temperature (Celsius)0.0
