3M Products & Supplies

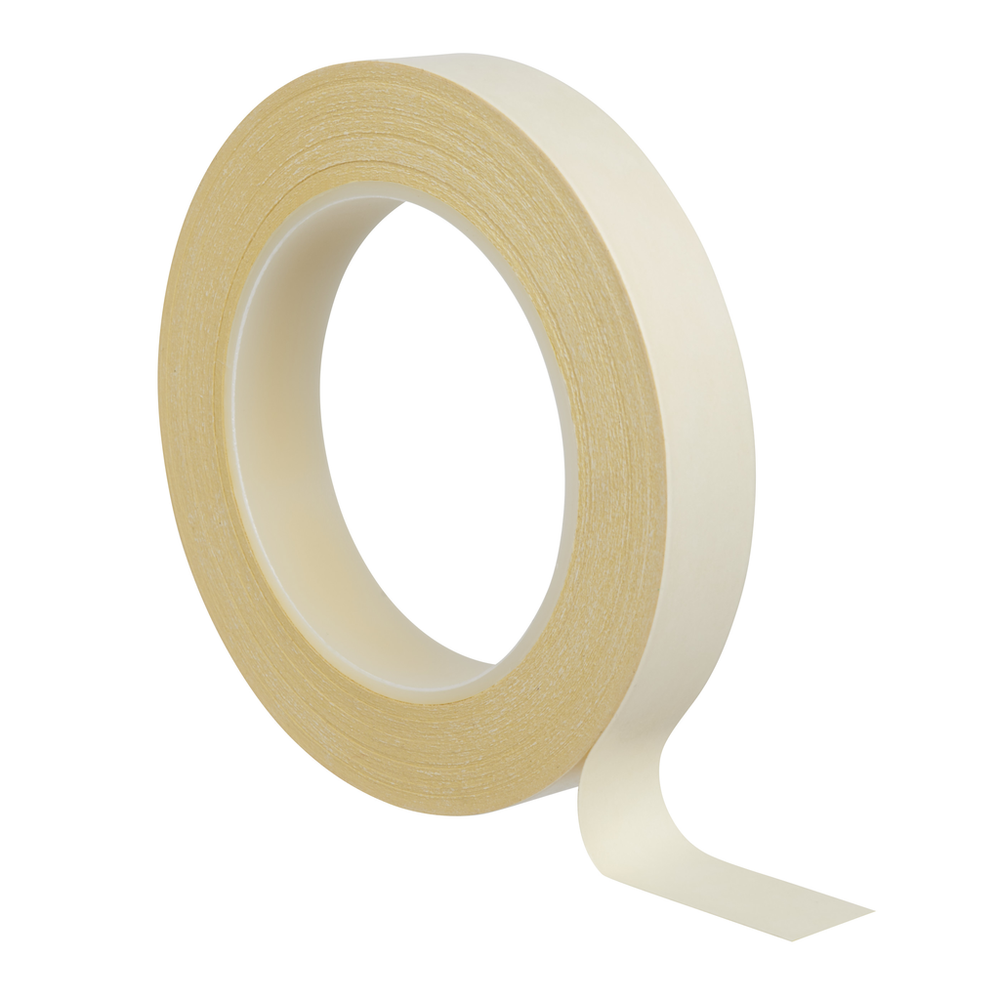

3M™ Polyester Film Electrical Tape 75, 3/4 in x 36 yd, paper core, 48 Rolls/Case - 7010045325

Sold As: 48-Pack
SKU: 7010045325
MPN: 7010045325
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128568293
3M ID: 80611434178
5 Digit UPC: 56829
$1,556.02 ($32.42 / Count)
Hurry up! Current stock:

Product Description

3M™ Polyester Film Electrical Tape 75 is a double coated polyester film electrical tape for use in bonding applications requiring a positive insulation barrier.

Features

  • Made of semi-rigid polyolefin
  • Offers the advantage of integral, adhesive-lined construction
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Flame-retardant tubing is rated for 600V applications

Downloads

Specifications

Shelf Life1825
Country of OriginMexico
Overall Width (Imperial)0.75
Product ColorYellow
Tape GradeProfessional
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Rolls per Case48.0
Electrolytic Corrosion Factor1.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric)19.0
Total Tape Thickness without Liner (Imperial)3.5
Minimum Operating Temperature (Fahrenheit)32.0
Backing (Carrier) MaterialPolyester
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric) UOMmm
Dielectric Strength UOMV
Overall Length (Metric) UOMm
Shelf Life UOMYear
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Minimum Operating Temperature (Celsius)0.0
Total Tape Thickness without Liner (Metric)0.089
Elongation at Break100
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)36.0
Overall Length (Imperial) UOMyd
Overall Length (Metric)32.9
Adhesive TypeThermosetting Rubber
Maximum Operating Temperature (Fahrenheit)266.0
Insulation Resistance1 x 10^6 megohms
Dielectric Strength6500.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)130.0
Product MarketsElectrical Equipment Manufacturing
