3M Products & Supplies

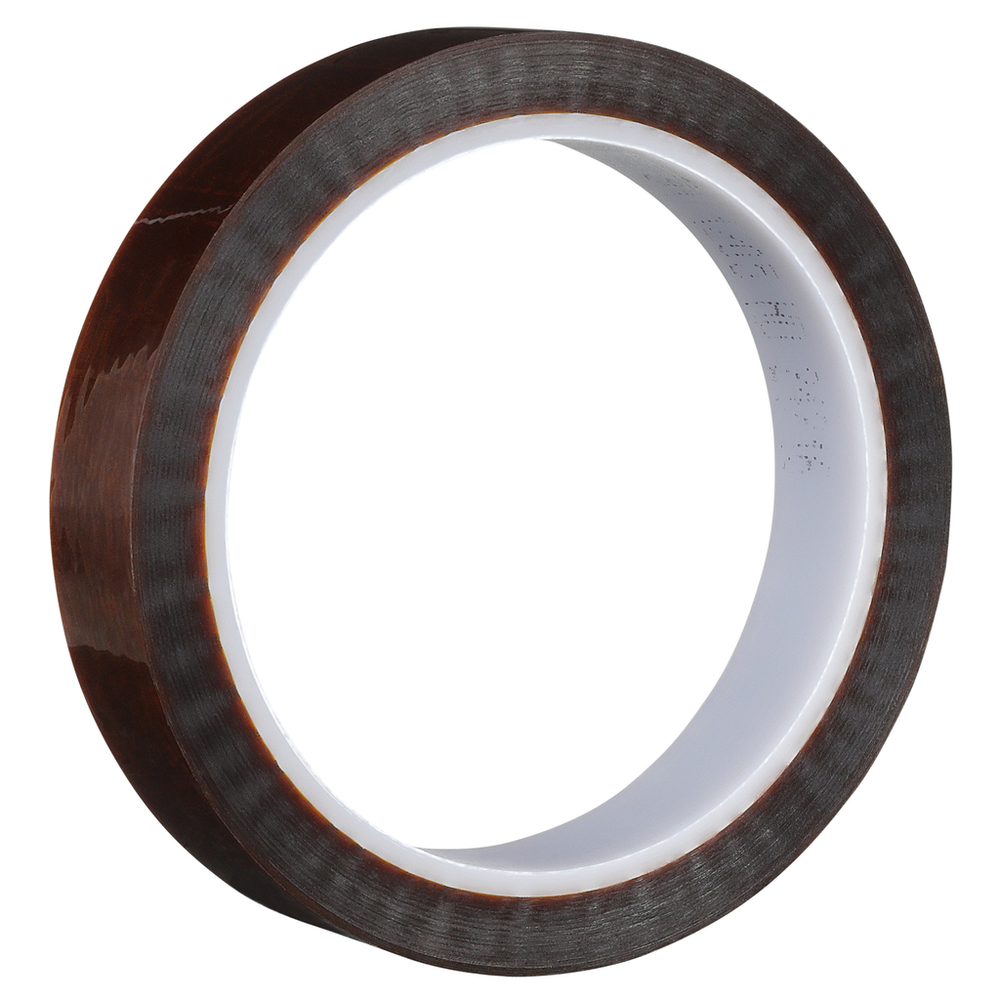

3M™ Polyimide Film Electrical Tape 1205, Amber, Acrylic Adhesive, 1 mil film, 3/4 in x 36 yd (19,05 mm x 33 m), 12/Case - 7100035654

Sold As: 12-Pack
SKU: 7100035654
MPN: 7100035654
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007275275
3M ID: 80018000234
5 Digit UPC: 27527
$686.94 ($57.25 / Count)
Hurry up! Current stock:

Product Description

3M™ Polyimide Film Electrical Tape 1205 is a polyimide film backed electrical tape. This flame retardant tape is suitable for use in applications that require thin insulating material for wrapping transformers, capacitors and wire harnesses. This tape withstands a temperature range of -40°C to 155°C (-40 to 311 °F) without the loss of electrical properties and tensile strength.

Features

  • UL Listed and RoHS Compliant
  • Designed for anchoring leads and terminal boards
  • Flame-retardant and has polyimide backing
  • Withstands a temperature rating of -40°C to 155°C (-40°F to 311°F)
  • Suitable for use as wave solder masking tape in a printed circuit board assembly
  • Highly conformable with a pressure-sensitive, acrylic adhesive

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Total Tape Thickness without Liner (Metric)0.081
Shelf Life UOMYear
Overall Width (Imperial) UOMin
Backing (Carrier) MaterialPolyimide Film
Tensile Strength (Metric)53.0
Overall Width (Metric) UOMmm
Electrolytic Corrosion Factor1.0
Maximum Operating Temperature (Fahrenheit)311.0
Adhesive MaterialAcrylic
Overall Width (Imperial)0.75
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Celsius) UOMDegree
Dielectric Strength7500.0
Overall Width (Metric)19.05
Overall Length (Imperial)36.0
Dielectric Strength UOMV
Elongation at Break55%
Total Tape Thickness without Liner (Imperial) UOMmil
Product ColorAmber
Product MarketsElectrical Equipment Manufacturing
Overall Length (Metric)33.0
Total Tape Thickness without Liner (Metric) UOMmm
Adhesive TypeAcrylic
ApplicationInsulation
Tensile Strength (Metric) UOMN/cm
Total Tape Thickness without Liner (Imperial)3.2
Overall Length (Metric) UOMm
Specifications MetRoHS 2011/65/EU
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)155.0
