3M Products & Supplies

3M™ Polyimide Hybrid Bond Diamond Wheels and Tools, 11V9, 5X1-3/4X2, X=1/8 D220 686HN, U=7/16 - MMMPBDW41210-1 - 7010495779

SKU: 7010495779
MPN: 7010495779
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060000564
3M ID: 65500400489
5 Digit UPC: 56
$607.53 each
Hurry up! Current stock:

Product Description

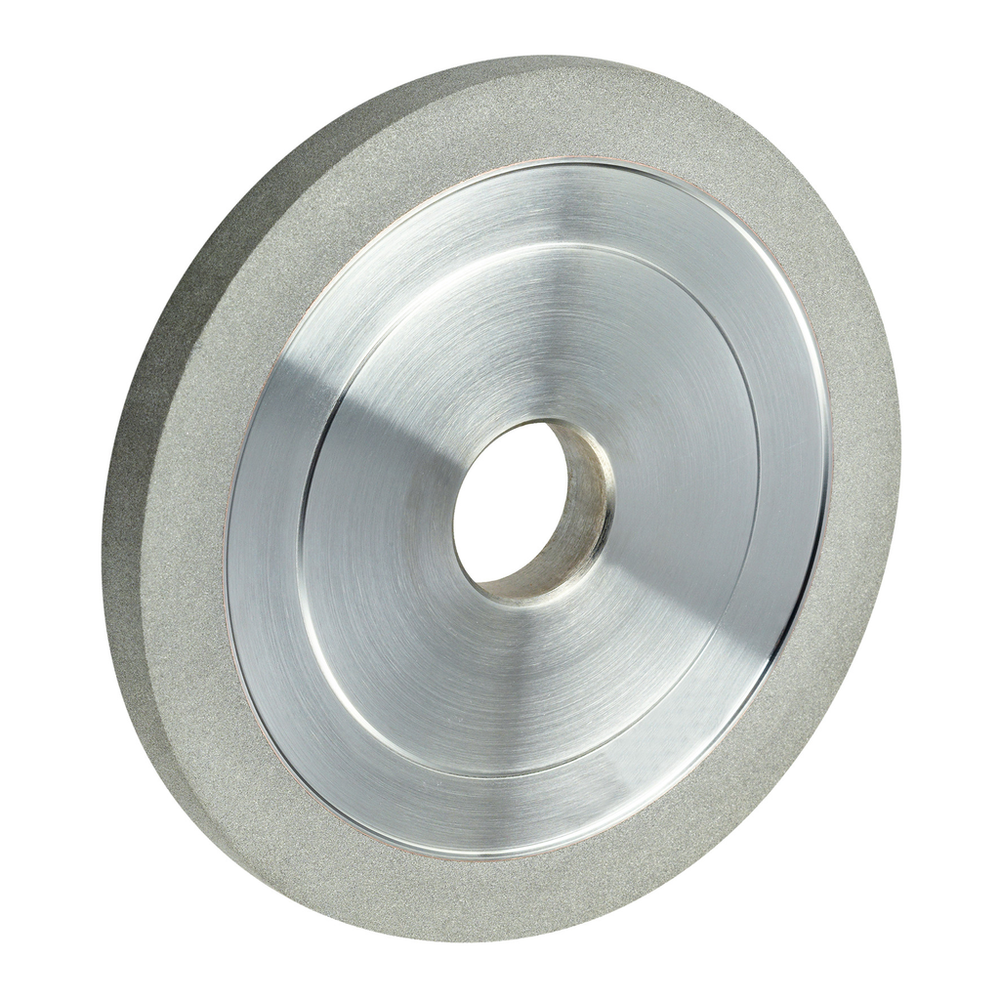

3M™ Diamond Wheel 686HN is a special hybrid bond diamond wheel used for grinding primary and secondary relief angles on round tools made of tungsten carbide. This highly engineered wheel offers the excellent form retention and long wheel life which is ideal for long production runs where tighter control on tolerances are required.

Features

  • Ideal for long production runs and where tight tolerances are required
  • Diamond mineral for use when grinding Tungsten Carbide
  • Arbor holes are made to customer specifications, so you get exactly the size you need
  • Hybrid bond system offers excellent form retention and wheel stability
  • Used for grinding on round tools

Downloads

Specifications

Country of OriginUnited States
Abrasive MaterialDiamond
Center Hole Diameter (Metric) UOMmm
Overall Thickness (Metric) UOMmm
Overall Diameter (Imperial) UOMin
Overall Thickness (Imperial)1.75
Center Hole Diameter (Imperial) UOMin
Overall Thickness (Metric)44.45
Overall Thickness (Imperial) UOMin
Center Hole Diameter (Metric)50.8
Overall Diameter (Metric)127.0
Bond TypePolyimide
Overall Diameter (Imperial)5.0
Overall Diameter (Metric) UOMmm
Center Hole Diameter (Imperial)2.0
IndustriesCutting Tool Manufacturing, Precision Grinding & Finishing
Product FormWheel
