3M Products & Supplies

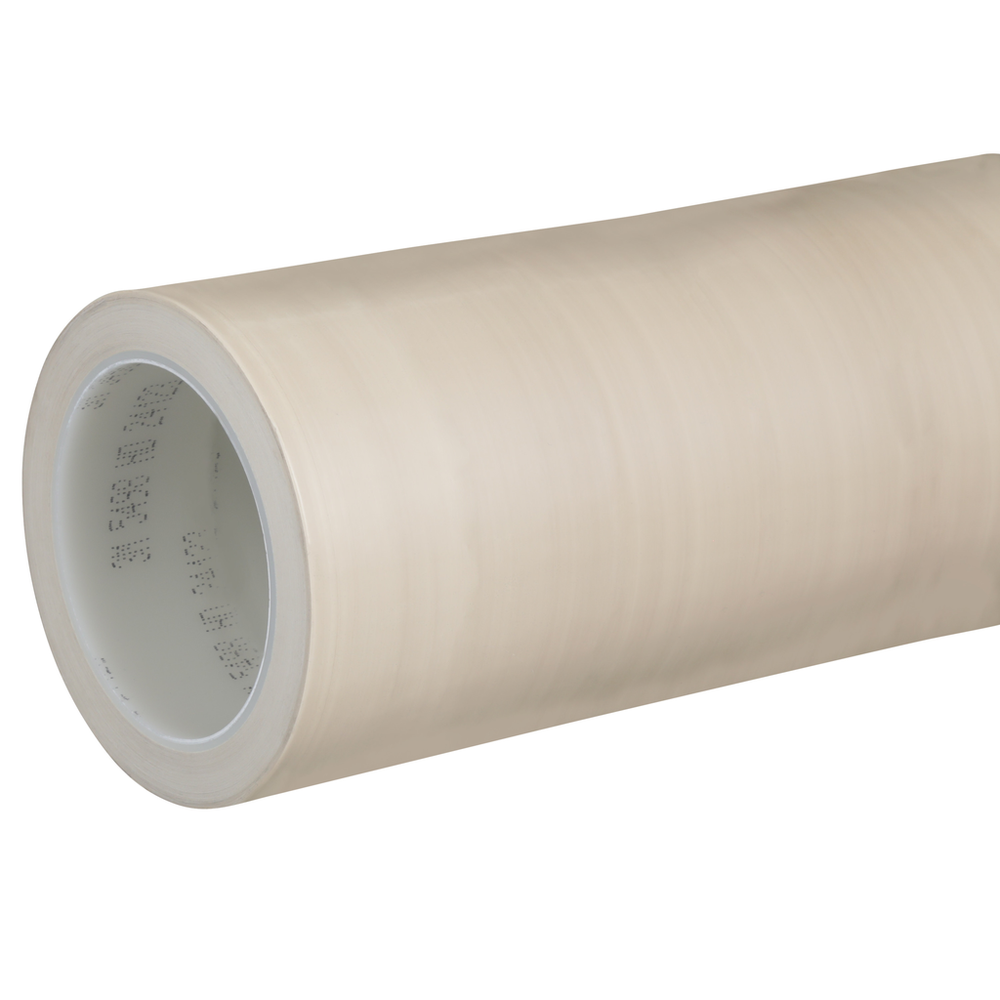

3M™ PTFE Film Tape 5498, Beige, 14 in x 36 yd, 4.2 mil, 1 Roll/Case - 7000144713

SKU: 7000144713
MPN: 7000144713
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 50051138948776
3M ID: 70006383379
5 Digit UPC: 94877
$1,526.73 each
Hurry up! Current stock:

Product Description

3M™ PTFE Film Tape 5498 uses an extruded polytetrafluoroethylene (PTFE) film backing. This tape offers an extremely low coefficient of friction which, in combination with a pressure sensitive rubber adhesive, creates a smooth, non-stick surface over a variety of substrates to assist in mold release applications where a non-silicone tape is required.

Features

  • Resists high temperatures in manufacturing operations
  • Extruded 3M™ PTFE Film Tape lies flatter than typical skived PTFE film tapes
  • Non-stick PTFE film provides an exceptionally slick surface for easy clean-up
  • Rubber adhesive provides clean removal from a variety of surfaces where silicone is not permitted
  • High strength and abrasion resistance ensures reliability and performance to reduce friction, rattle and machinery noise
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Operating Temperature (Fahrenheit)40.0
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)36.0
Tensile Strength (Imperial)19.0
Total Tape Thickness without Liner (Imperial)4.2
Overall Length (Metric)32.91
Maximum Operating Temperature (Fahrenheit)300.0
Minimum Operating Temperature (Celsius)4.0
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Metric)33.3
Tensile Strength (Imperial) UOMlb/in
Overall Width (Imperial)14.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Units per Case UOMRoll
Overall Width (Metric) UOMmm
Overall Width (Metric)355.6
IndustriesAerospace
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Imperial)2.2
Units per Case1.0
Adhesive TypeRubber
Maximum Operating Temperature (Celsius)149.0
Backing (Carrier) MaterialExtruded PTFE
Total Tape Thickness without Liner (Metric)0.107
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.06
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
