3M Products & Supplies

3M™ PTFE Glass Cloth Tape 5453, Brown, 1 in x 36 yd, 8.2 mil, 9 Roll/Case - 7000050131

Sold As: 9-Pack
SKU: 7000050131
MPN: 7000050131
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200161605
3M ID: 70016054457
5 Digit UPC: 16160
$2,410.92 ($267.88 / Count)
Hurry up! Current stock:

Product Description

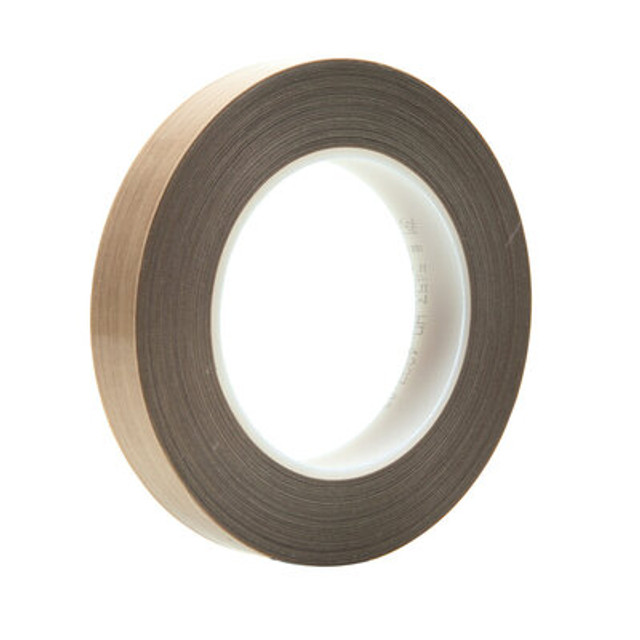

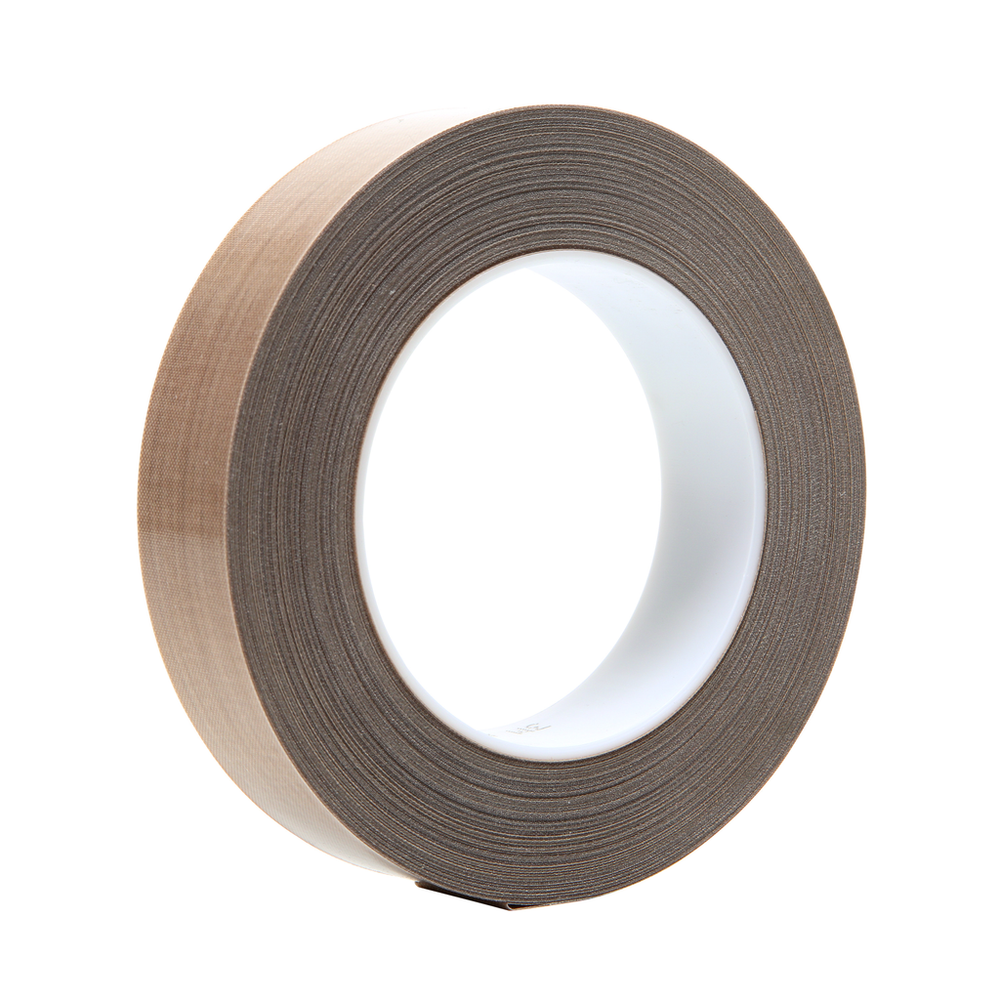

Premium performance 3M™ PTFE Glass Cloth Tape 5453 has a brown woven glass cloth backing impregnated with PTFE (polytetrafluoroethylene). This tape provides a slick surface on process machinery and offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a non-stick surface that performs at elevated temperatures.

Features

  • Performs under a wide range of temperatures, including up to 500°F/260°C
  • Premium glass cloth reinforced backing provides greater tensile strength and resistance to tears and punctures than typical PTFE film backed tapes
  • Very low moisture absorption allows the tape to perform in many humid environments
  • Silicone adhesive offers high temperature performance and long aging
  • Provides a non-stick, low friction surface on heat sealing and packaging equipment
  • Thicker backing helps extend the service life over thinner versions when subjected to abrasion and wear
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Metric) UOMcm
Core Size (Imperial)3.0
Adhesive TypeSilicone
Total Tape Thickness without Liner (Metric)0.21
Minimum Operating Temperature (Celsius)-73.0
Overall Length (Imperial)36.0
Backing (Carrier) Thickness (Metric)0.15
Back Side Adhesive Thickness (Imperial)2.3
Core Size (Metric) UOMcm
Backing (Carrier) MaterialGlass Cloth
Total Tape Thickness without Liner (Imperial) UOMmil
Core Size (Metric)7.62
Overall Length (Metric)32.9
Tensile Strength (Metric)60.0
Back Side Adhesive Thickness (Metric)0.06
Maximum Operating Temperature (Celsius)260.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)500.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit)-100.0
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Specifications MetASTM D3330, ASTM D3758, D3652, F.A.R. 25.853(a)
Core Size (Imperial) UOMin
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Tensile Strength (Imperial)2800.0
Tensile Strength (Imperial) UOMoz/in
Units per Case9.0
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Elongation at Break0.05
Backing (Carrier) Thickness (Imperial)6.0
Total Tape Thickness without Liner (Metric) UOMmm
Back Side Adhesive Thickness (Metric) UOMmm
Overall Width (Imperial)1.0
Overall Width (Metric)2.5
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Imperial) UOMmil
Shelf Life UOMMonth
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial)8.2
Product ColorBrown
Indoor/OutdoorIndoor/Outdoor
Tensile Strength (Metric) UOMN/100mm
Back Side Adhesive Thickness (Imperial) UOMmil
