3M Products & Supplies

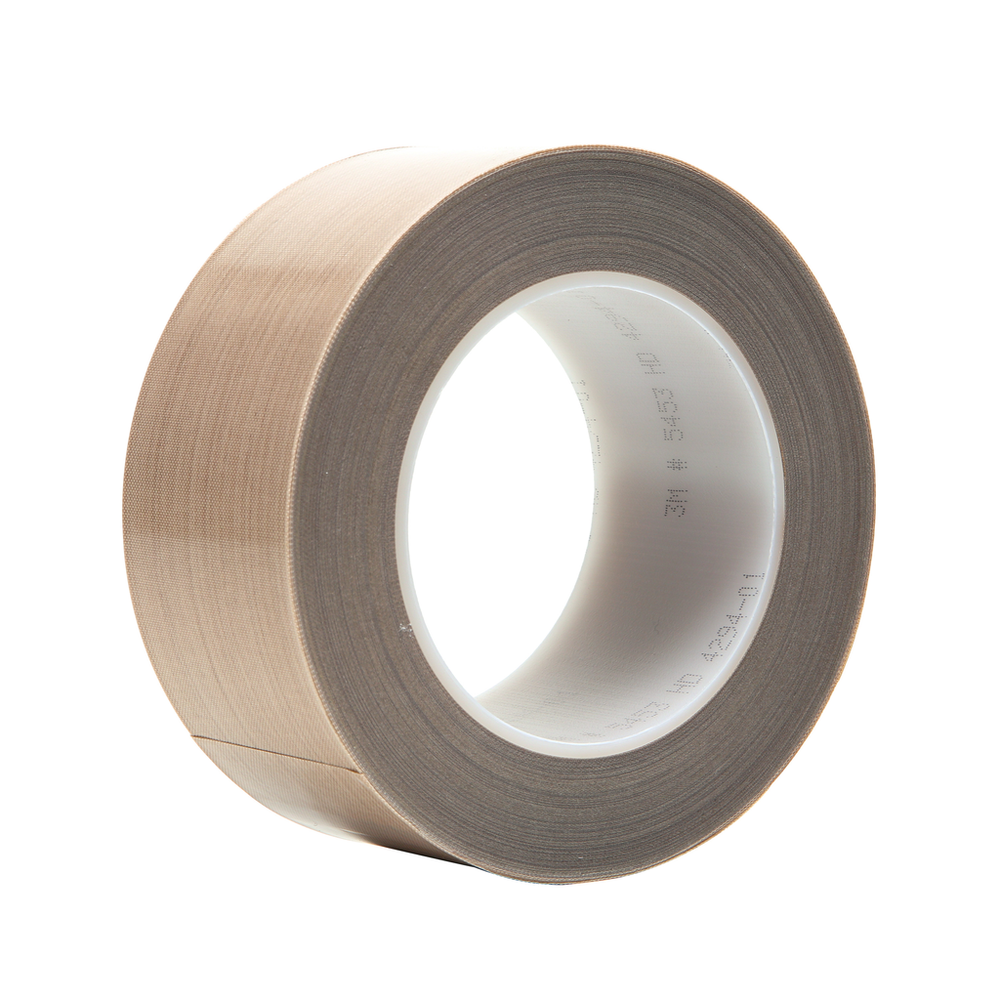

3M™ PTFE Glass Cloth Tape 5453, Brown, 2 in x 36 yd, 8.2 mil, 6 Roll/Case - 7000144794

Sold As: 6-Pack
SKU: 7000144794
MPN: 7000144794
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200161629
3M ID: 70016054432
5 Digit UPC: 16162
$3,214.55 ($535.76 / Count)
Hurry up! Current stock:

Product Description

Premium performance 3M™ PTFE Glass Cloth Tape 5453 has a brown woven glass cloth backing impregnated with PTFE (polytetrafluoroethylene). This tape provides a slick surface on process machinery and offers an extremely low coefficient of friction which, in combination with a pressure sensitive silicone adhesive, creates a non-stick surface that performs at elevated temperatures.

Features

  • Very low moisture absorption allows the tape to perform in many humid environments
  • Silicone adhesive offers high temperature performance and long aging
  • Thicker backing helps extend the service life over thinner versions when subjected to abrasion and wear
  • Premium glass cloth reinforced backing provides greater tensile strength and resistance to tears and punctures than typical PTFE film backed tapes
  • Provides a non-stick, low friction surface on heat sealing and packaging equipment
  • Performs under a wide range of temperatures, including up to 500°F/260°C
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Core Size (Imperial)3.0
Overall Length (Imperial) UOMyd
Product ColorBrown
Maximum Operating Temperature (Celsius) UOMDegree
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)2.0
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Core Size (Imperial) UOMin
Adhesive TypeSilicone
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Specifications MetASTM D3330, ASTM D3758, D3652, F.A.R. 25.853(a)
Backing (Carrier) Thickness (Imperial)6.0
Back Side Adhesive Thickness (Metric) UOMmm
Tensile Strength (Imperial)2800.0
Overall Length (Imperial)36.0
Minimum Operating Temperature (Celsius)-73.0
Overall Length (Metric)32.9
Overall Width (Metric)50.4
Total Tape Thickness without Liner (Metric)0.21
Elongation at Break5
Back Side Adhesive Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric) UOMmm
Core Size (Metric) UOMcm
Maximum Operating Temperature (Fahrenheit)500.0
Backing (Carrier) Thickness (Metric) UOMmm
Indoor/OutdoorIndoor/Outdoor
Units per Case6.0
Minimum Operating Temperature (Fahrenheit)-100.0
Backing (Carrier) Thickness (Metric)0.15
Back Side Adhesive Thickness (Metric)0.06
Shelf Life UOMMonth
Total Tape Thickness without Liner (Imperial)8.2
Tensile Strength (Metric) UOMN/100mm
Back Side Adhesive Thickness (Imperial)2.3
Core Size (Metric)7.62
Tensile Strength (Imperial) UOMoz/in
Backing (Carrier) MaterialGlass Cloth
Tensile Strength (Metric)60.0
Product CategorySpecialty Tapes
Maximum Operating Temperature (Celsius)260.0
