3M Products & Supplies

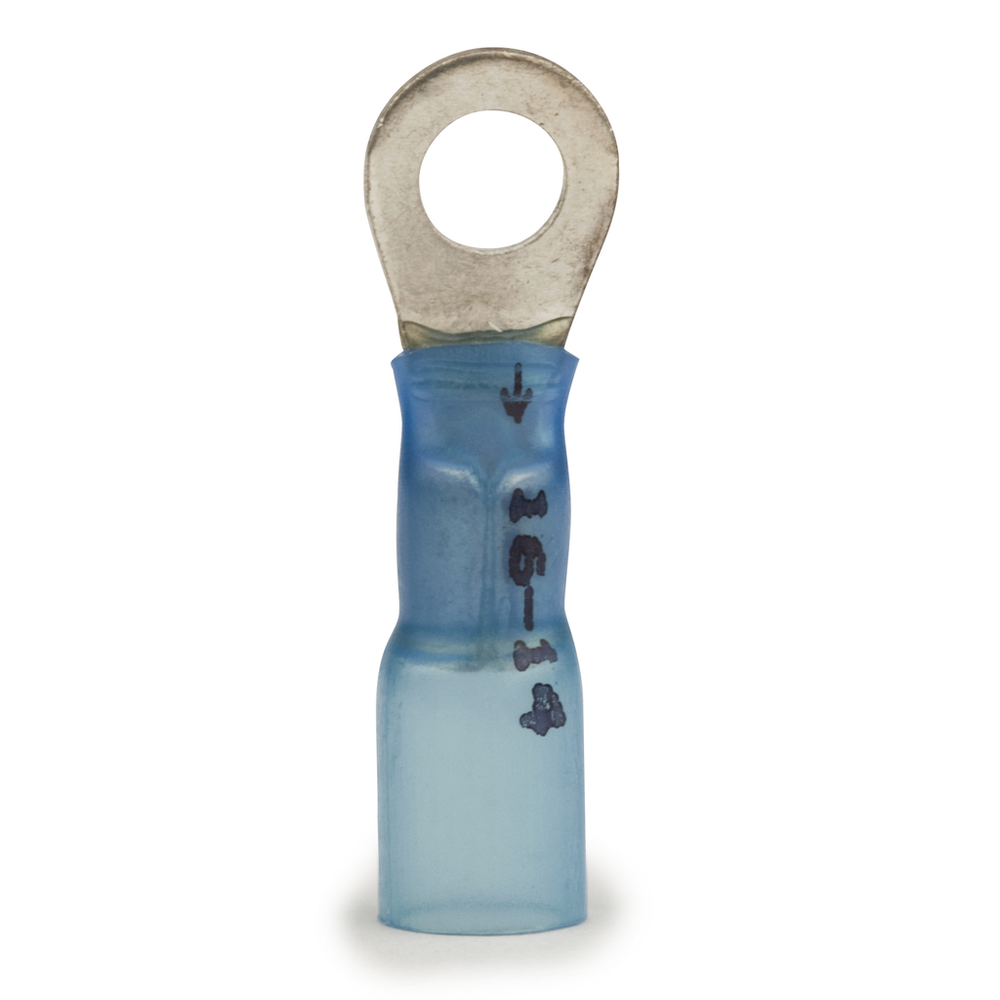

3M™ Ring Tongue, Heat Shrink Brazed Seam 16-14 AWG, 94851, MH14-10R/L - 7010304078

Sold As: 10-Pack
SKU: 7010304078
MPN: 7010304078
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007948513
3M ID: 80611253511
MPN: 94851
$184.15 ($18.41 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Heat Shrink Brazed Seam Ring Tongue ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)

Downloads

Specifications

Connection Width (Metric)4.826
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Country of OriginUnited States
Maximum Conductor Size (Imperial)14 AWG
Connection Width (Imperial)0.19
Terminal TypeRing
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)105.0
Minimum Conductor Size (Imperial)16 AWG
Minimum Conductor Size (Metric)1.31 mm²
Connection TypeCrimp
Maximum Conductor Size (Metric)2.08
