3M Products & Supplies

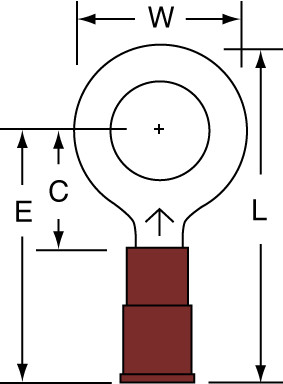

3M™ Ring Tongue, Nylon Insulated w/Insulation Grip 22-18, 94718, 11-14S-NB - 7010319489

Sold As: 10-Pack
SKU: 7010319489
MPN: 7010319489
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007947189
3M ID: 80611252182
MPN: 94718
$318.40 ($31.84 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)

Downloads

Specifications

Ring TypeStandard
Minimum Conductor Size (Imperial)22 AWG
Minimum Conductor Size (Metric)0.326 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Stud Diameter (Metric) UOMmm
Connection TypeCrimp
Country of OriginUnited States
UL File NumberE23438
Barrel StyleBrazed
Minimum Stud Diameter (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Stud Size0.25 in
Barrel Length (Imperial)0.25 Inch
Minimum Stud Diameter (Metric)6.35
Maximum Conductor Size (Metric)0.823
Maximum Operating Temperature (Celsius)175.0
Insulation MaterialNylon with Insulation Grip
Terminal StyleStandard
Maximum Conductor Size (Imperial)18 AWG
Terminal TypeRing
