3M Products & Supplies

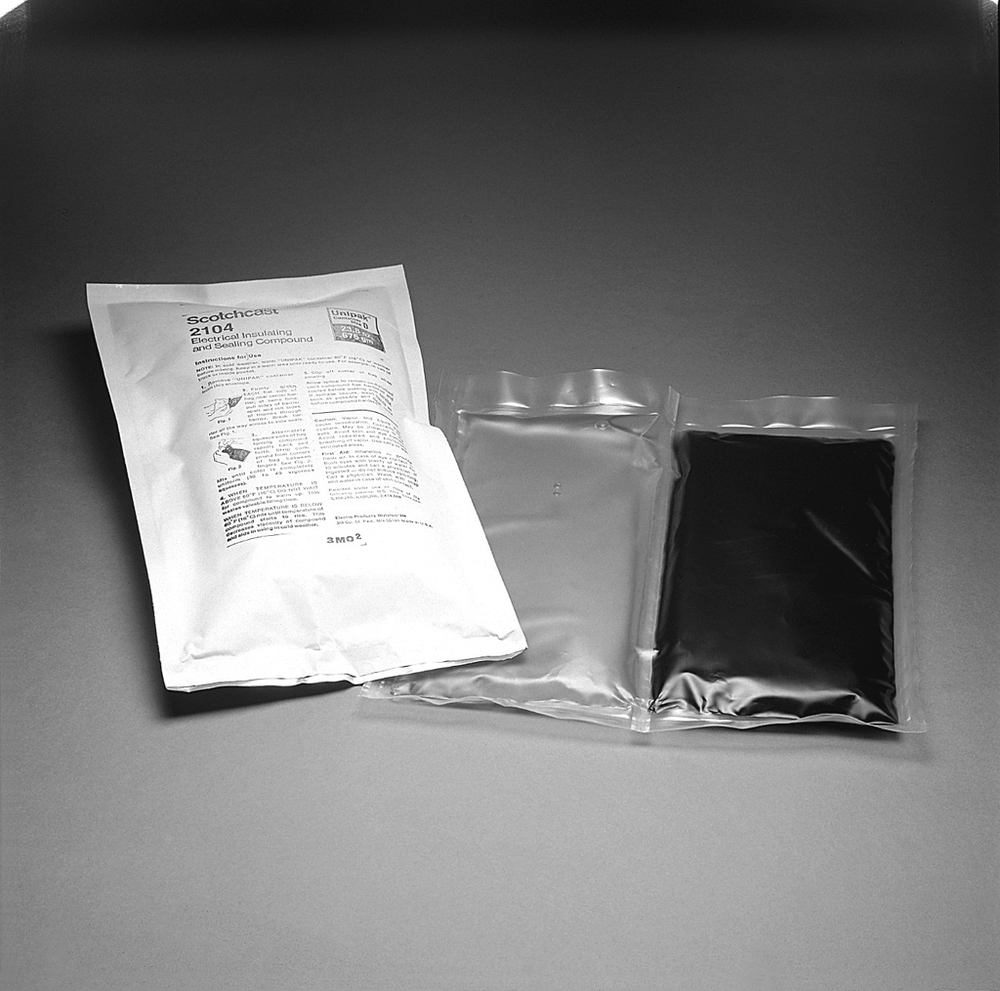

3M™ Scotchcast™ Electrical Insulating and Sealing Compound 2104A , 3.46 oz, 10 /Case - 7100003209

Sold As: 10-Pack
SKU: 7100003209
MPN: 7100003209
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007311898
3M ID: 80610073654
5 Digit UPC: 31189
$317.43 ($31.74 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchcast™ Electrical Insulating Resin 2104 is a 2 part, liquid type, semi-flexible resin useful for providing permanent splice repair and protection. This polyurethane resin has a good wetting and impregnating property, which makes it easy to infuse on any surface. It is useful for applications that include filling, potting, sealing, insulating, repairing and more.

Features

  • Withstands a voltage rating of 1 kV or less
  • Elongates 98% longer than its original size for easy insulation or wrapping
  • Rated for continuous use at 90°C (194°F) with an overload rating of 130°C (266°F).
  • Useful for replacing or repairing the jacket on both single and multi-core power cables
  • 70 Shore A hardness
  • Has 18 minute gel time at 23 °C (73 °F)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Operating Temperature (Celsius)0.0
Dielectric Strength (V/mil)524 V/mil
Maximum Operating Temperature130 Degree Celsius
Voltage1 kV
Units per Case10.0
Container Size (Imperial)3.46 oz
Elongation UOM%
Hardness70 Shore A
Temperature RatingClass B
FlexibilitySemi-flexible
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Cable Typemulti core, non shielded, polymeric insulated cable
Minimum Operating Temperature (Celsius) UOMDegree
Cure MethodRoom
Product ColorGreen
Splice TypeInline Repair
Lug/Stem Connector Included in KitNo
Product TypeSplice
