3M Products & Supplies

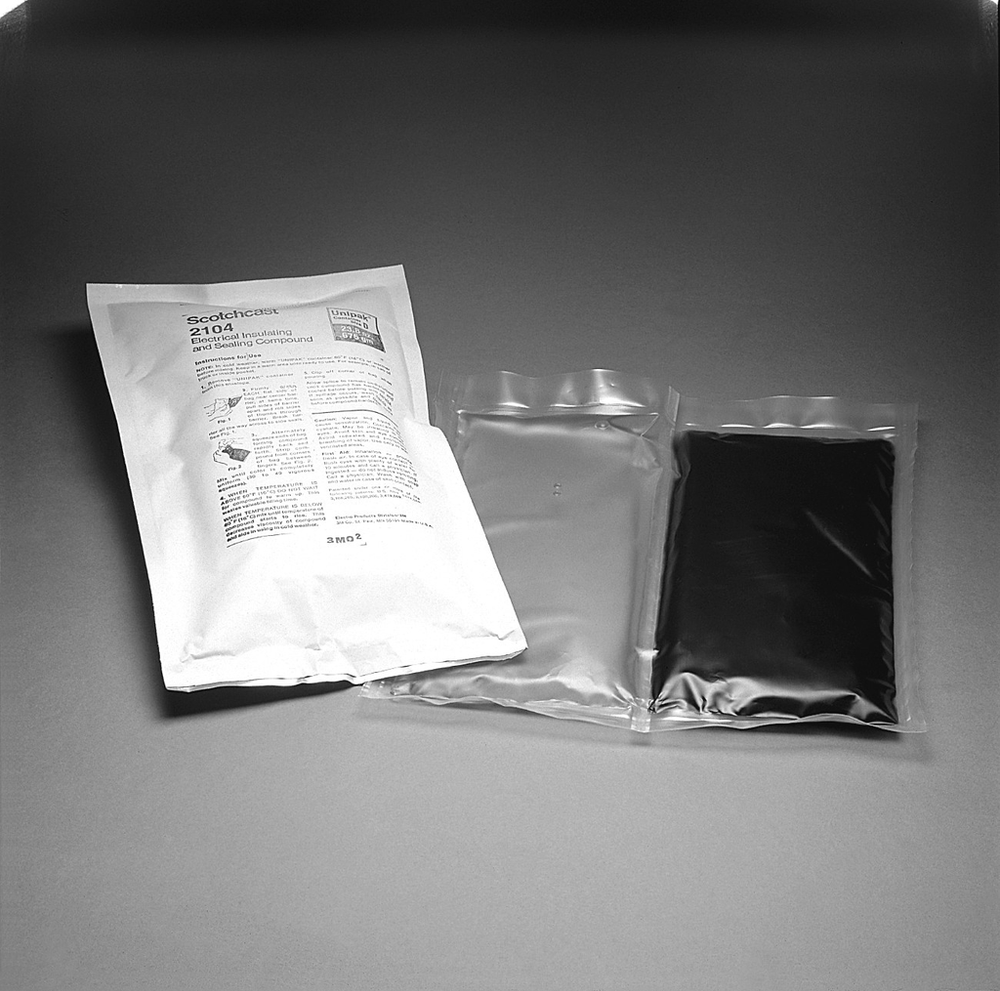

3M™ Scotchcast™ Electrical Insulating and Sealing Compound 2104D, 23.8 oz, 10 /Case - 7000005905

Sold As: 10-Pack
SKU: 7000005905
MPN: 7000005905
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007118497
3M ID: 80610071435
5 Digit UPC: 11849
$1,322.76 ($132.28 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchcast™ Electrical Insulating Resin 2104 is a 2 part, liquid type, semi-flexible resin useful for providing permanent splice repair and protection. This polyurethane resin has a good wetting and impregnating property, which makes it easy to infuse on any surface. It is useful for applications that include filling, potting, sealing, insulating, repairing and more.

Features

  • Withstands a voltage rating of 1 kV or less
  • Has 18 minute gel time at 23 °C (73 °F)
  • Elongates 98% longer than its original size for easy insulation or wrapping
  • Useful for replacing or repairing the jacket on both single and multi-core power cables
  • Rated for continuous use at 90°C (194°F) with an overload rating of 130°C (266°F).
  • 70 Shore A hardness
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Temperature RatingClass B
Elongation UOM%
Minimum Operating Temperature (Celsius)0.0
Container Size (Imperial)23.8 oz
Units per Case10.0
Cable Typemulti core, non shielded, polymeric insulated cable
Maximum Operating Temperature130 Degree Celsius
Cure MethodRoom
Dielectric Strength (V/mil)524 V/mil
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Voltage1 kV
FlexibilitySemi-flexible
Minimum Operating Temperature (Celsius) UOMDegree
Product ColorGreen
Hardness70 Shore A
Splice TypeInline Repair
Lug/Stem Connector Included in KitNo
Product TypeSplice
