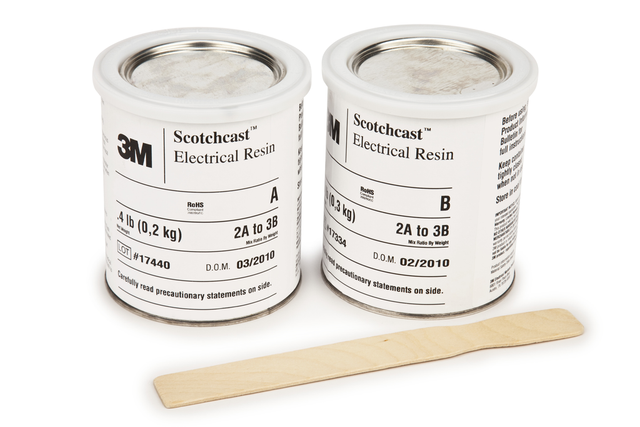

3M Scotchcast Electrical Resin, parts A and B
3M Scotchcast Electrical Resin, parts A and B
3M Scotchcast Electrical Resin, parts A and B
Previous Next

3M Products & Supplies

3M Scotchcast Electrical Resin 210N, (16 - 2# units = 1 case)

SKU: 7010351904
MPN: 7010351904
For an accurate lead time please contact us
UPC: 50051128613844
3M ID: 80611617145
5 Digit UPC: 61384
Shelf Life: 730 Days
Country of Origin: USA
Manufacturer: 3M
Color: Reddish Brown
$1,811.73 each
Hurry up! Current stock:
Product Description
3M Scotchcast Electrical Resin 210N is a 2 part, thixotropic, liquid resin. It is useful for insulating and sealing motor winding end turns and slot sections. This filled epoxy based resin has a good wetting and impregnating property, which makes it easy to infuse on any surface. It is useful for applications that include filling, patching, insulating and more.3M Scotchcast Electrical Resin 210N has a low gel point rating to ensure curing at room temperature. The high tensile strength of the resin exhibits a semi flexible and good adhesion property after curing. It is ideal for applications that need excellent thermal shock and mechanical shock resistance. Its high dielectric strength offers excellent electrical insulating property to the resin. It has a high flash point, helping prevent any fire hazard due to quick ignition. Since the resin exhibits hydrolytic stability property, it minimizes quick chemical decomposition, thus providing long lasting usage. MIL I 16923E Certified and RoHS 2011/65/EU Compliant.

Extra Details

  • 70 Shore D hardness
  • Chemical- and moisture-resistant
  • Elongates 15% longer than its original size for easy insulation or wrapping
  • Has 30-minute gel time at 140 ?? (60 ??)
  • Useful for coating coils, transformers, motors, modules, electrical and electronic components
  • Withstands a temperature range of 32 to 266 ?? (0 to 130 ??)

Data Sheet

  1. Safety Data Sheet
