3M™ Scotchcast™ Electrical Resin 250 Part A (40 lb), 1 Drum - 7010293976

SKU: 7010293976
MPN: 7010293976
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 50054007080560
3M ID: 80700250048
5 Digit UPC: 8056
$1,478.50 each
Hurry up! Current stock:

Product Description

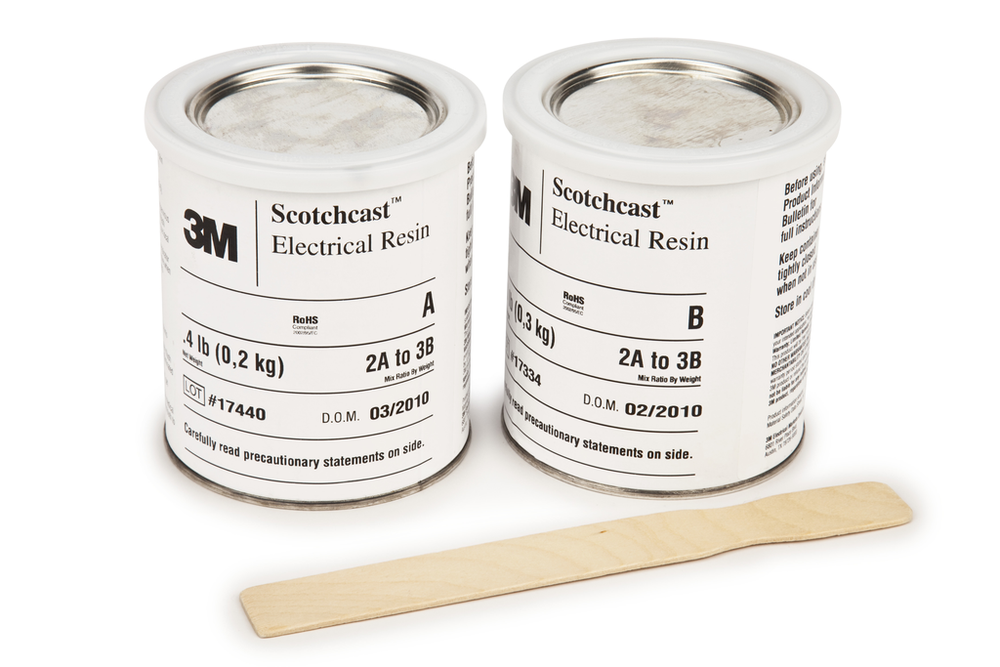

3M™ Scotchcast™ Resin 250 is a 2 part, oven curing, unfilled, epoxy based, liquid resin. The rigid resin is formulated for use in applications where adhesion, mechanical strength and good electrical properties at high temperatures are required.

Features

  • 25 Barcol hardness
  • For use in applications where adhesion, mechanical strength and good electrical properties at high temperatures are required
  • Withstands temperatures of 155 °C (311 °F)
  • Excellent high-temperature, physical strength and electrical properties
  • Has 17 minute gel time at 121 °C (250 °F)
  • Elongates 2.5% longer than its original size for easy insulation or wrapping

Downloads

Specifications

Country of OriginUnited States
Cure MethodOven
MaterialEpoxy
Resin CureOven Cure Unfilled Resins
FlexibilityRigid
Resin MatrixUnfilled
Product TypeElectrical Resin
Dielectric Strength (V/mil)325 V/mil
Flammability RatingNot Self Extinguishing
Hardness25 Barcol
Base PolymerEpoxy
Cure Temperature>75 Degree Celsius
Temperature RatingClass F (
Mixed ViscosityLow (
Elongation UOM%
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
