3M Products & Supplies

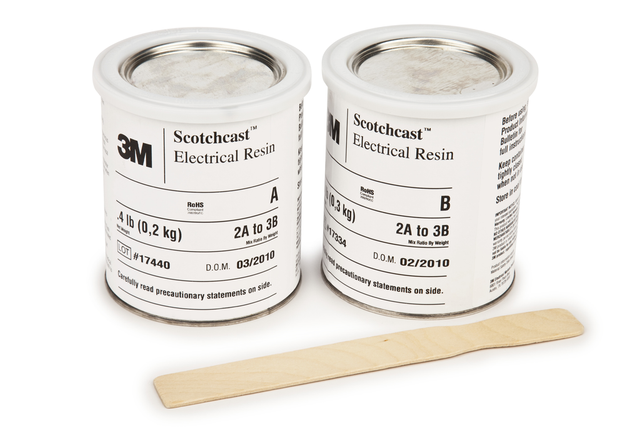

3M™ Scotchcast™ Electrical Resin 3 (10 lb), 1 Kits/Case - 7100116190

SKU: 7100116190
MPN: 7100116190
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007344995
3M ID: 80700003025
5 Digit UPC: 34499
$378.01 each
Hurry up! Current stock:

Product Description

3M™ Scotchcast™ Electrical Resin 3 is a 2 part, oven curing, unfilled, rigid, epoxy based, liquid resin. The resin is characterized by an outstanding physical and electrical stability. It is highly resistant to moisture and is suitable for impregnating, potting and encapsulating applications such as coils, transformers, modules and other electrical as well as electronic components.

Features

  • Has 21 minute gel time at 121 °C (250 °F)
  • Elongates 2% longer than its original size for easy insulation or wrapping
  • Withstands a temperature range of 0 to 130 °C (32 to 266 °F)
  • Low-viscosity and fine-wetting properties allow complete impregnation of fine wires in coils
  • Suitable for impregnating, potting and encapsulating applications such as coils, transformers and modules
  • 80 Shore D hardness
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Dielectric Strength (V/mil)300 V/mil
Temperature RatingClass B (
MaterialEpoxy
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Flammability RatingNot Self Extinguishing
FlexibilityRigid
Product ColorClear Amber
Elongation UOM%
Resin CureOven Cure Unfilled Resins
Cure Temperature>75 Degree Celsius
Hardness80 Shore D
Thermal ConductivityLow (
Cure MethodOven
Product TypeElectrical Resin
Resin MatrixUnfilled
Base PolymerEpoxy
Mixed ViscosityLow (
