3M Products & Supplies

3M™ Scotchcast™ Inline Splice Kit 72-N1, 0 - 600 V, 10/Case - 7000005906

Sold As: 10-Pack
SKU: 7000005906
MPN: 7000005906
For an accurate lead time please contact us
UPC: 00054007106234
3M ID: 80610072086
5 Digit UPC: 10623
$948.09 ($94.81 / Count)
Hurry up! Current stock:

Product Description

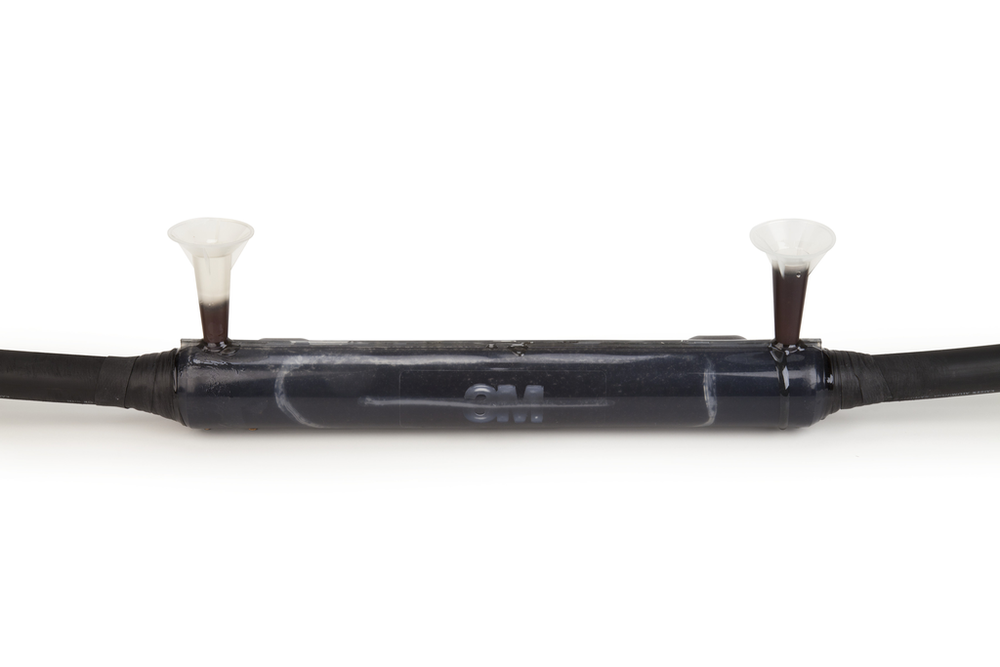

3M™ Scotchcast™ 72 N Series Inline Splice Kit is a 1 kV rated, rigid body splice designed to join signal and control cables. It fits shielded or unshielded constructions of plastic or rubber jacketed cables. It is perfect for inline splicing of shielded or unshielded cables, underground systems, joining of cable reel ends, direct burial applications, repair of cable failures and dig ins.

Features

  • RoHS 2011/65/EU Compliant
  • Rigid body splice for joining signal and control cables
  • Rated for 1 kV applications
  • The polypropylene mold has a built-in spacer web that automatically offers cable centering and compound coverage
  • Fits unshielded construction of plastic or rubber-jacketed cables
  • Designed for inline splicing of underground systems, joining of cable reel ends, direct burial applications and repair of cable failures
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Cable ShieldingNon-shielded
Minimum Insulation Outer Diameter (Metric) UOMmm
Maximum Insulation Outer Diameter (Imperial)0.625
Minimum Insulation Outer Diameter (Metric)6.4
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Insulation Outer Diameter (Imperial) UOMin
Minimum Insulation Outer Diameter (Imperial) UOMin
Insulation Outside Diameter Range0.25 - 0.625 Inch
Product TypeResin Splice
Molded Body Length (Metric)181.0 mm
Insulation O.D. Range0.25 - 0.625 Inch
Maximum Insulation Outer Diameter (Metric)15.9
Insulation Outside Diameter Range (Metric)6.4-15.9 mm
Minimum Insulation Outer Diameter (Imperial)0.25
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
