3M Products & Supplies

3M™ Scotchlok™ Block Fork, High Temperature Butted Seam MU14-6FBHTK, 16-14 AWG, suitable for use in a terminal block, 1000/Case - 7100164062

Sold As: 1000-Pack
SKU: 7100164062
MPN: 7100164062
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007018438
3M ID: 80610047708
5 Digit UPC: 1843
$190.31 ($0.19 / Count)
Hurry up! Current stock:

Product Description

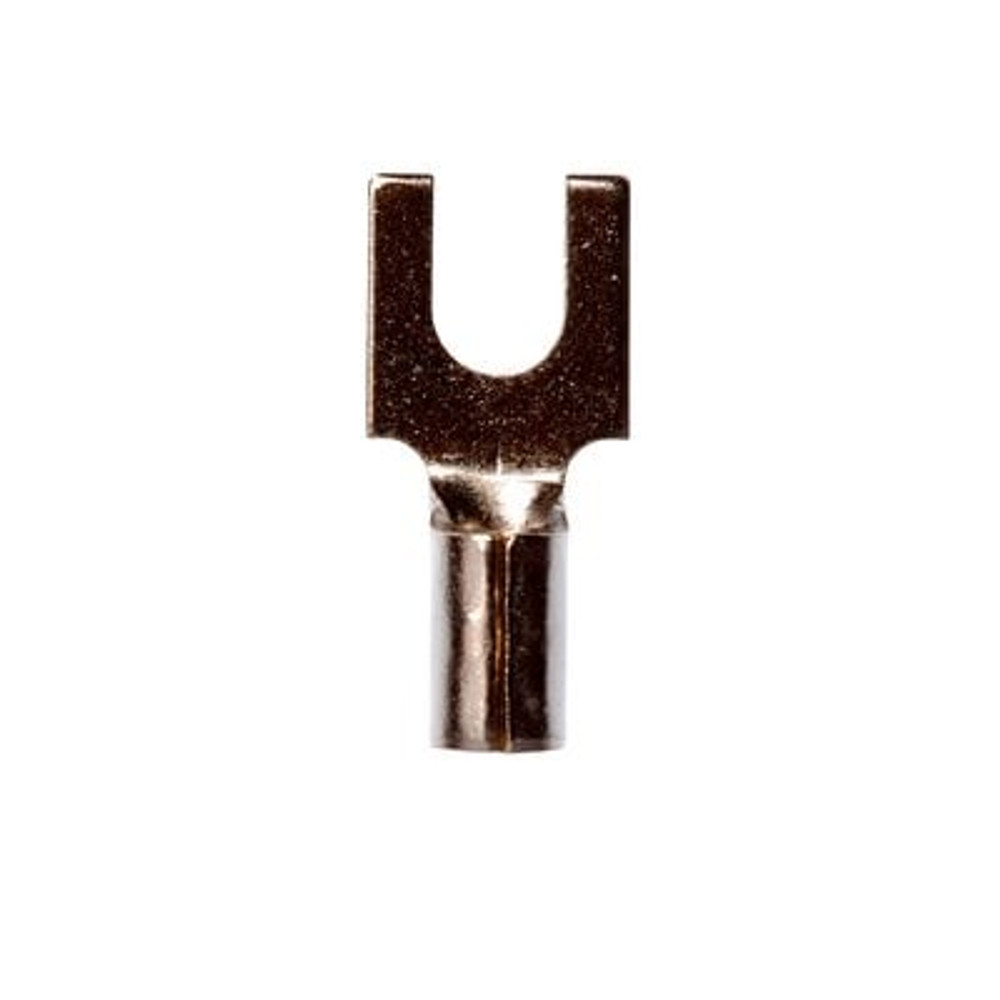

3M™ Scotchlok™ Butted Seam High-Temperature Block Forks is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Steel construction offers durability and a nickel-plated finish resists corrosion.

Features

  • Suitable for use in a terminal block
  • Beveled mouth offers easy insertion of wires
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)14 AWG
Overall Width (Imperial) UOMin
Clearance (C)0.25 Inch
Stud Size#6
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Metric)2.08 mm²
Barrel StyleButted
Minimum Conductor Size (Metric)1.31 mm²
Minimum Conductor Size (Imperial)16 AWG
Terminal TypeFork
Overall Length (Imperial) UOMin
Insulation MaterialNon-insulated
Overall Length (Imperial)0.65
Fork TypeBlock
Packaging1000 per bulk box
Dimension E0.5 Inch
Barrel Inside Diameter0.09 Inch
Overall Width (Imperial)0.3
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
MaterialCopper
Units per Case1000.0
Terminal StyleBlock
