3M Products & Supplies

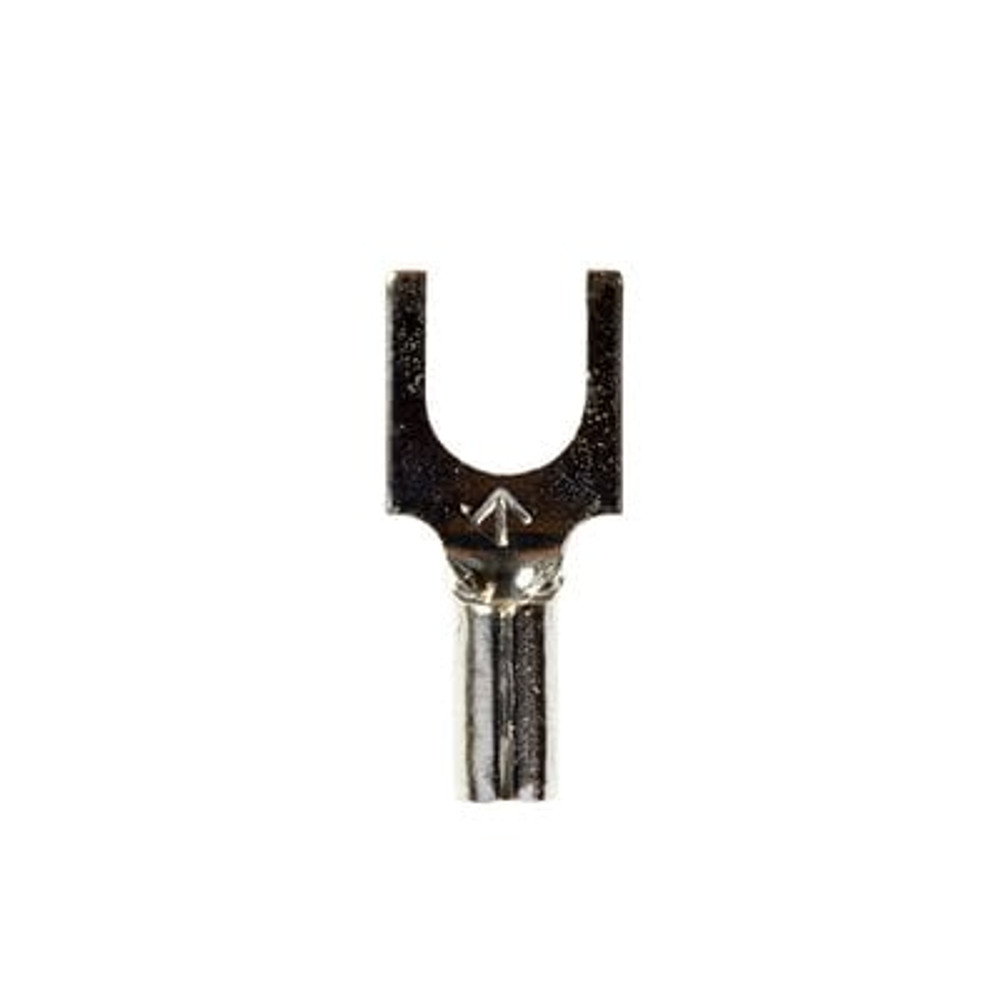

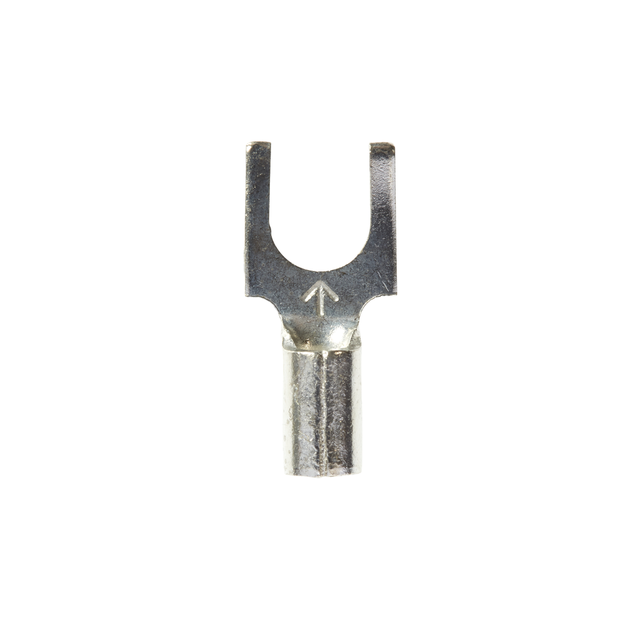

3M™ Scotchlok™ Block Fork Non-Insulated, 100/bottle, M18-10FBX, 500/Case - 7010320787

Sold As: 500-Pack
SKU: 7010320787
MPN: 7010320787
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128589493
3M ID: 80611465958
5 Digit UPC: 58949
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Metric).0823 mm²
Terminal TypeFork
Terminal StyleBlock
Minimum Conductor Size (Metric)0.326 mm²
Stud Size#10
Overall Width (Imperial) UOMin
Maximum Conductor Size (Imperial)18 AWG
UL File NumberE23438
Overall Length (Imperial) UOMin
Clearance (C)0.25 Inch
Units per Case500.0
Packaging100 per bottle
Overall Width (Imperial)0.3
Minimum Conductor Size (Imperial)22 AWG
Barrel Inside Diameter0.070 Inch
Barrel StyleBrazed
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Fork TypeBlock
Overall Length (Imperial)0.65
Insulation MaterialNon-insulated
Dimension E0.50 Inch
