3M Products & Supplies

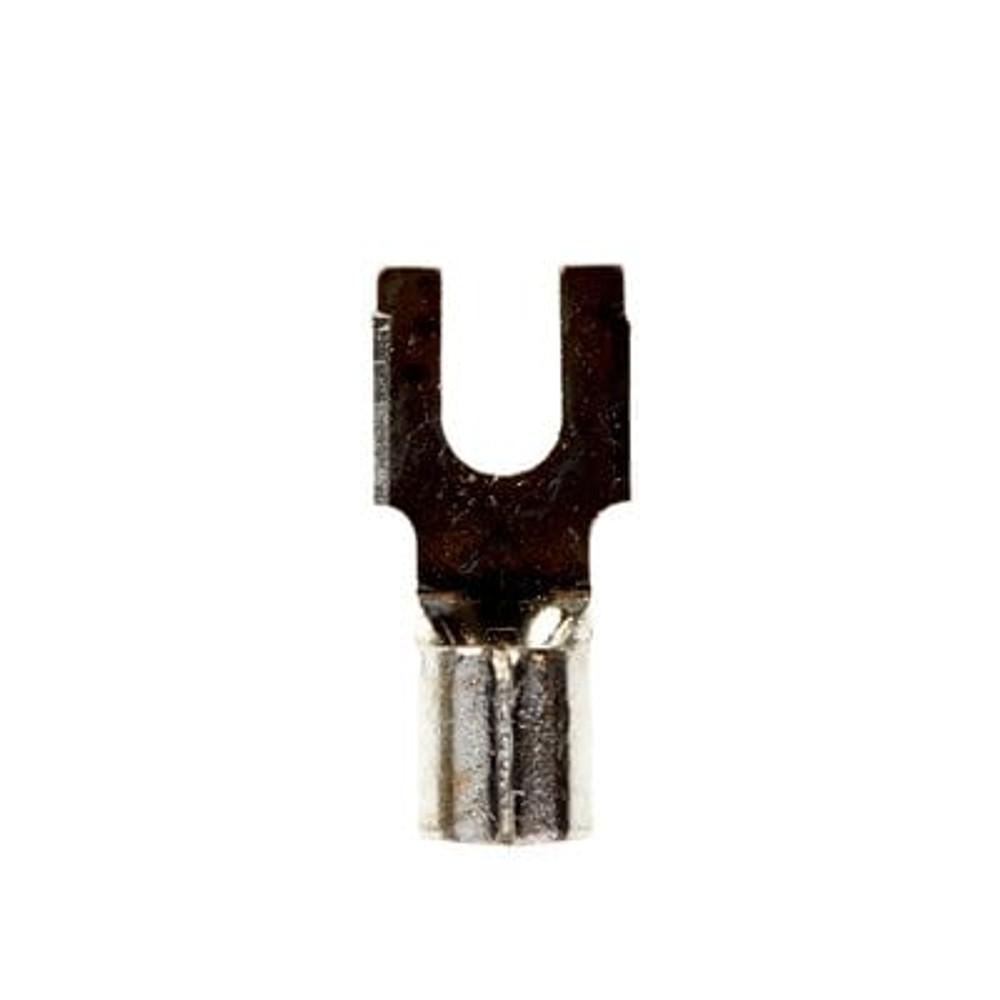

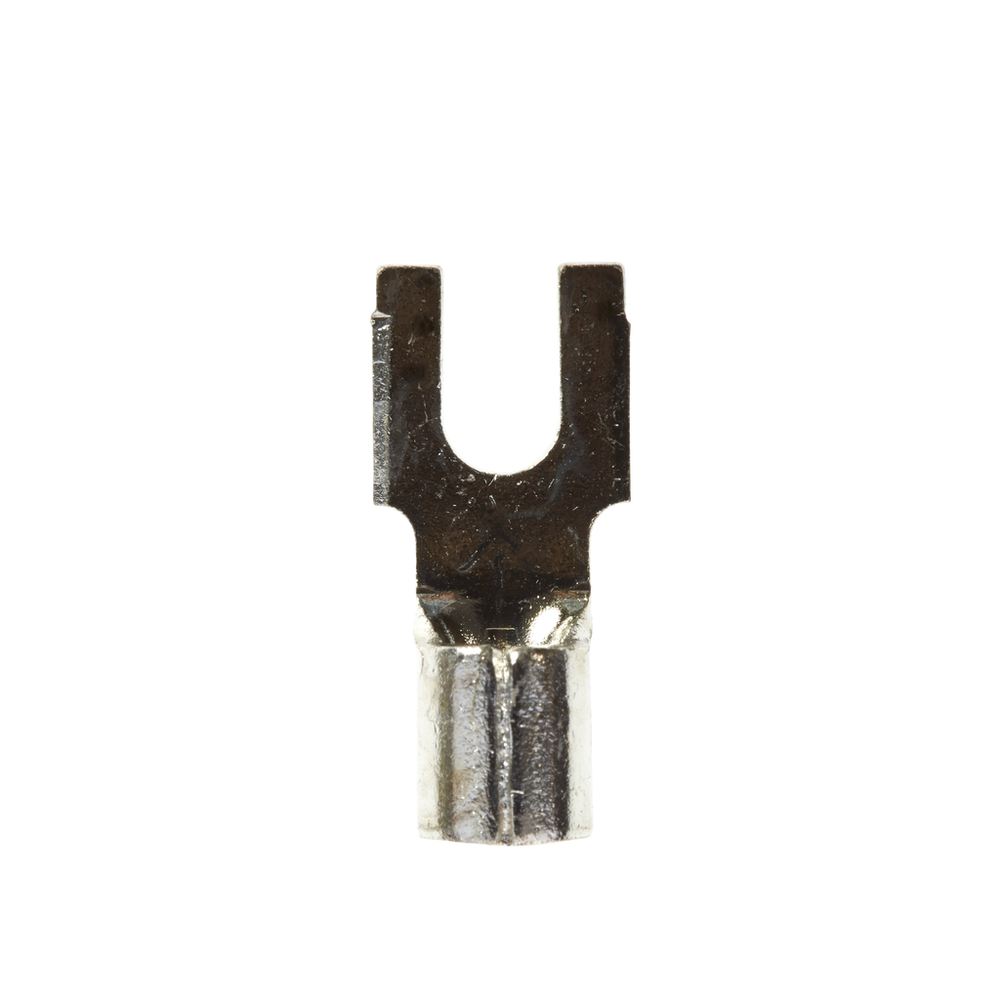

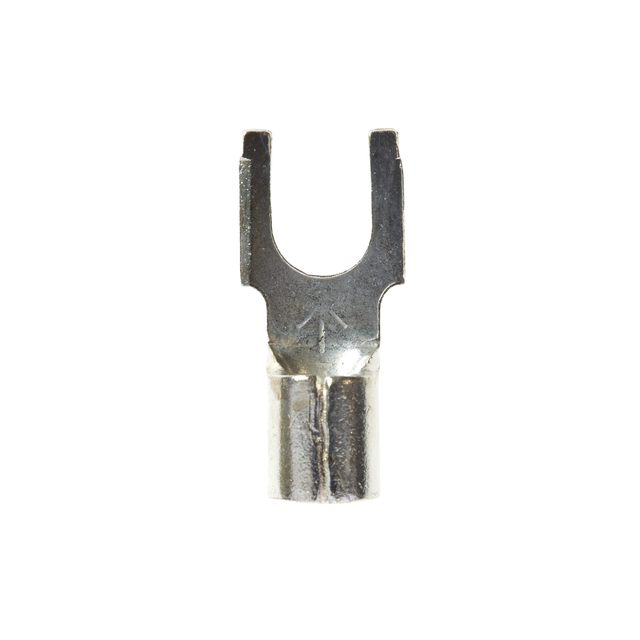

3M™ Scotchlok™ Block Fork Non-Insulated, 50/bottle, M10-6FBX, 500/Case - 7010304202

Sold As: 500-Pack
SKU: 7010304202
MPN: 7010304202
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128588625
3M ID: 80611465081
5 Digit UPC: 58862
$393.34 ($0.79 / Count)
Hurry up! Current stock:

Product Description

Downloads

Specifications

Country of OriginUnited States
Terminal StyleBlock
Barrel Length (Imperial)0.25 Inch
Dimension E0.54 Inch
Clearance (C)0.29 Inch
Units per Case500.0
Minimum Conductor Size (Imperial)12 AWG
Stud Diameter (Metric)4.826
Stud Diameter (Metric) UOMmm
Minimum Conductor Size (Metric)3.31 mm²
Maximum Conductor Size (Imperial)10 AWG
Insulation MaterialNon-insulated
Overall Length (Imperial)0.73
Stud Diameter (Imperial) UOMin
Barrel Inside Diameter0.135 Inch
Stud Diameter (Imperial)0.19
Stud Size#6
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal TypeFork
Barrel StyleBrazed
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Overall Width (Imperial)0.32
Packaging50 per bottle
Fork TypeBlock
Maximum Conductor Size (Metric)5.26 mm²
UL File NumberE70512
