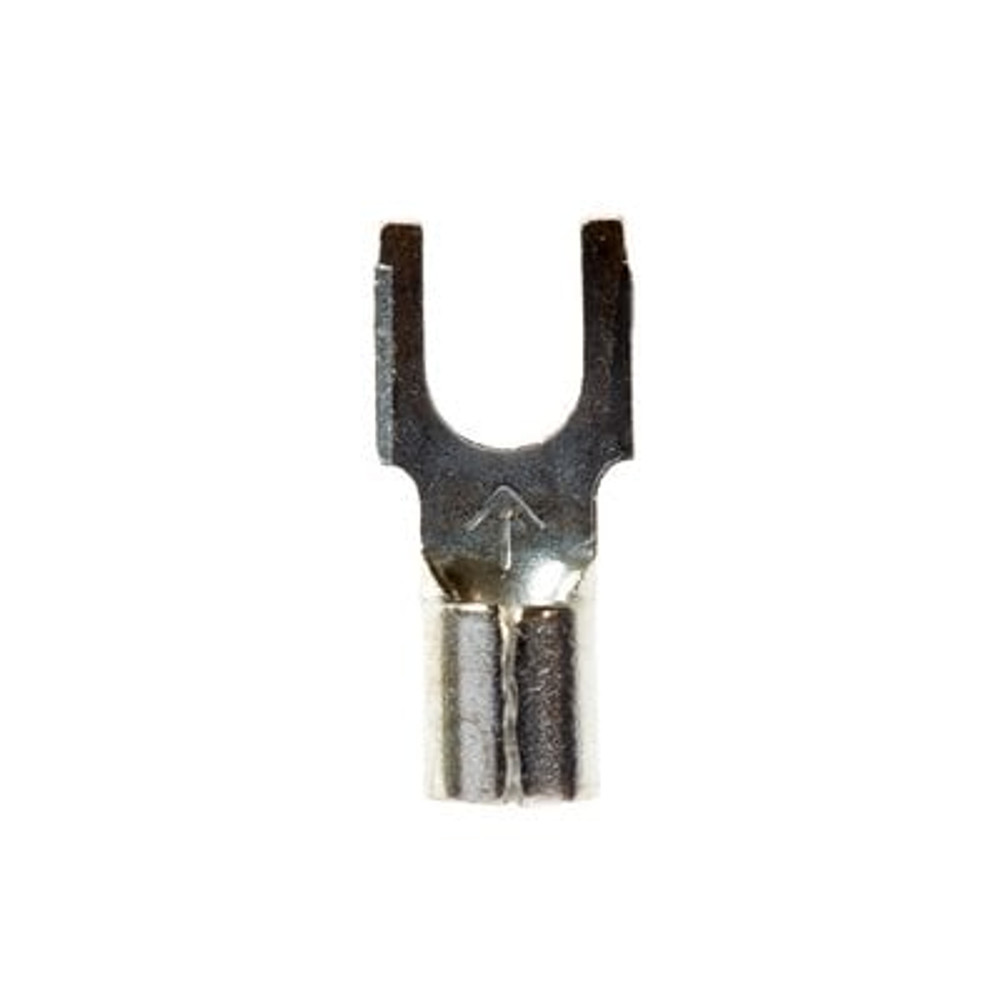

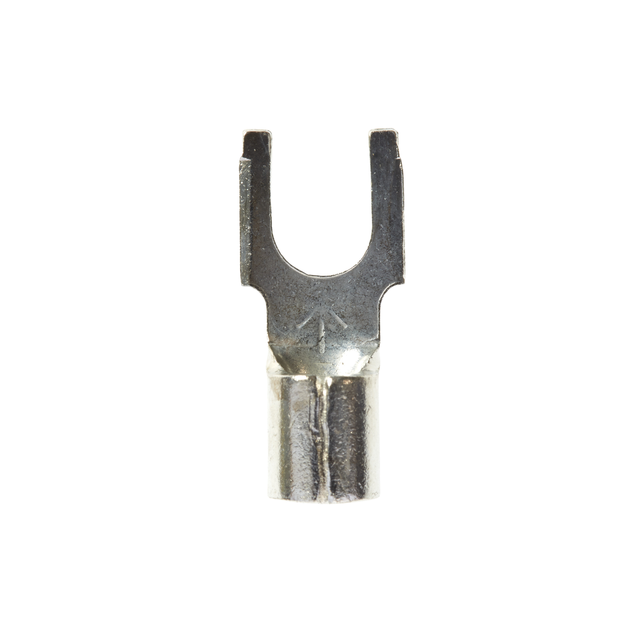

3M™ Scotchlok™ Block Fork, Non-Insulated Butted Seam MU10-10FBK, Stud Size 10, suitable for use in a terminal block, 500/Case - 7100164109

Sold As: 500-Pack
SKU: 7100164109
MPN: 7100164109
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007020073
3M ID: 80610049969
5 Digit UPC: 2007
$122.85 ($0.25 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial)0.73
Insulation MaterialNon-insulated
Overall Length (Imperial) UOMin
Barrel StyleButted
Stud Diameter (Metric)4.826
Overall Width (Imperial)0.32
Dimension E0.54 Inch
Overall Width (Imperial) UOMin
UL File NumberE23438
Maximum Conductor Size (Imperial)10 AWG
Stud Diameter (Metric) UOMmm
Stud Size#10
Minimum Conductor Size (Imperial)12 AWG
Barrel Inside Diameter0.135 Inch
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Metric)5.26 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal StyleBlock
Fork TypeBlock
Stud Diameter (Imperial)0.19
Stud Diameter (Imperial) UOMin
Packaging500 per bulk box
Units per Case500.0
Terminal TypeFork
Clearance (C)0.29 Inch
Minimum Conductor Size (Metric)3.31 mm²
