3M Products & Supplies

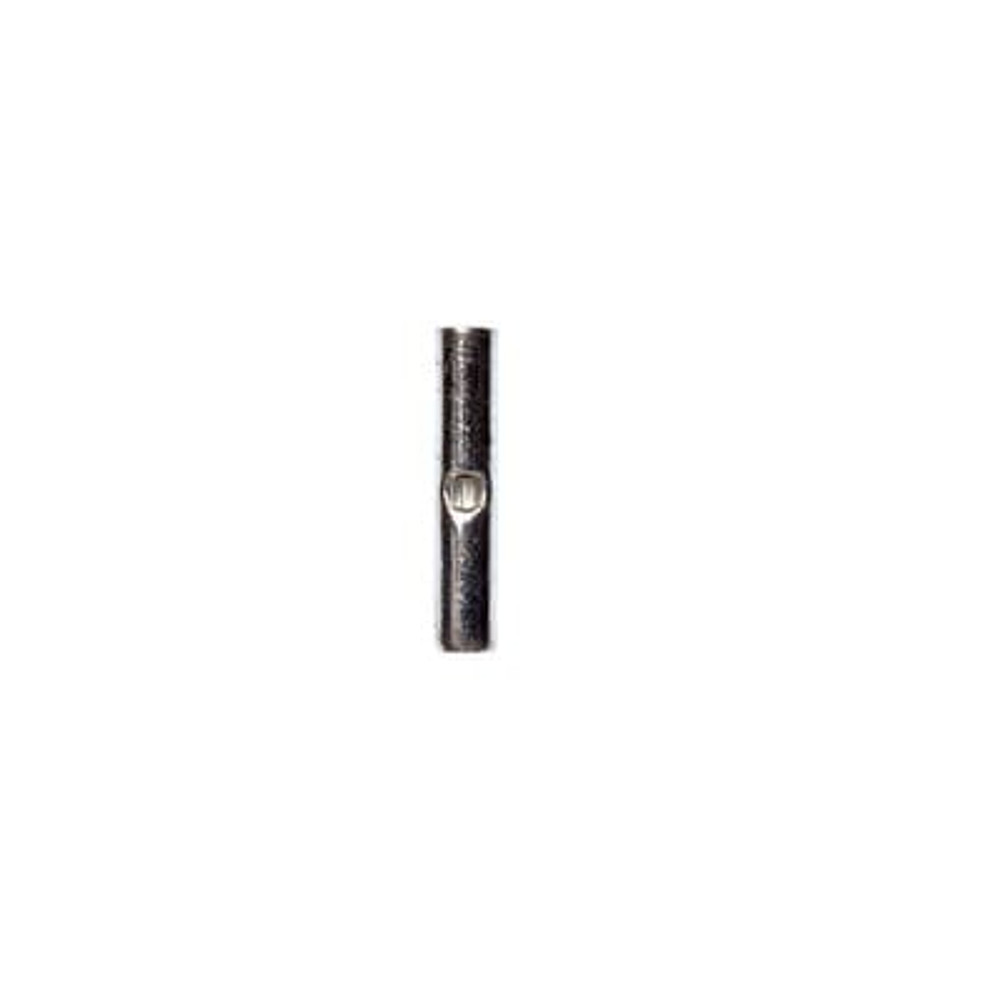

3M™ Scotchlok™ Butt Connector Non-Insulated, 100/bottle, M18BCX, built-in wire stop for correct positioning, 500/Case - 7000133276

Sold As: 500-Pack
SKU: 7000133276
MPN: 7000133276
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128586495
3M ID: 80611457948
5 Digit UPC: 58649
$233.36 ($0.47 / Count)
Hurry up! Current stock:

Product Description

Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial)0.63
Maximum Operating Temperature (Celsius) UOMDegree
Packaging100 per bottle
Conductor Sizes (Imperial)22 - 18 AWG
Minimum Conductor Size (Imperial)22 AWG
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Fahrenheit)221.0
Maximum Insulation Outside Diameter0.145 in
Barrel Length (Imperial)0.28 Inch
Connector TypeButt
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial) UOMin
Overall Length (Metric)16.0
Overall Length (Metric) UOMmm
Terminal StyleStandard
Maximum Conductor Size (Metric)1 mm²
Product TypeConnector
Barrel StyleSeamless
UL File NumberE23438
Maximum Recommended Voltage Rating600.0
Insulation MaterialNon-insulated
Maximum Conductor Size (Imperial)18 AWG
MaterialETP Copper
Maximum Operating Temperature (Fahrenheit) UOMDegree
Barrel Inside Diameter0.062 Inch
Maximum Insulation Outer Diameter (Metric) UOMmm
Maximum Recommended Voltage Rating UOMV
Units per Case500.0
Minimum Conductor Size (Metric).34 mm²
Product ColorMetal
Connection TypeButt
Terminal TypeButt Connectors
Maximum Insulation Outer Diameter (Metric)3.7
Body MaterialCopper Alloy
