3M Products & Supplies

3M™ Scotchlok™ Electrical IDC 901-POUCH, Run and Tap, Black, 18-14 AWG, 50 per pouch, 500/case - 7100175070

Sold As: 10-Pack
SKU: 7100175070
MPN: 7100175070
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007061069
3M ID: 80000209660
5 Digit UPC: 6106
$248.05 ($24.80 / Count)
Hurry up! Current stock:

Product Description

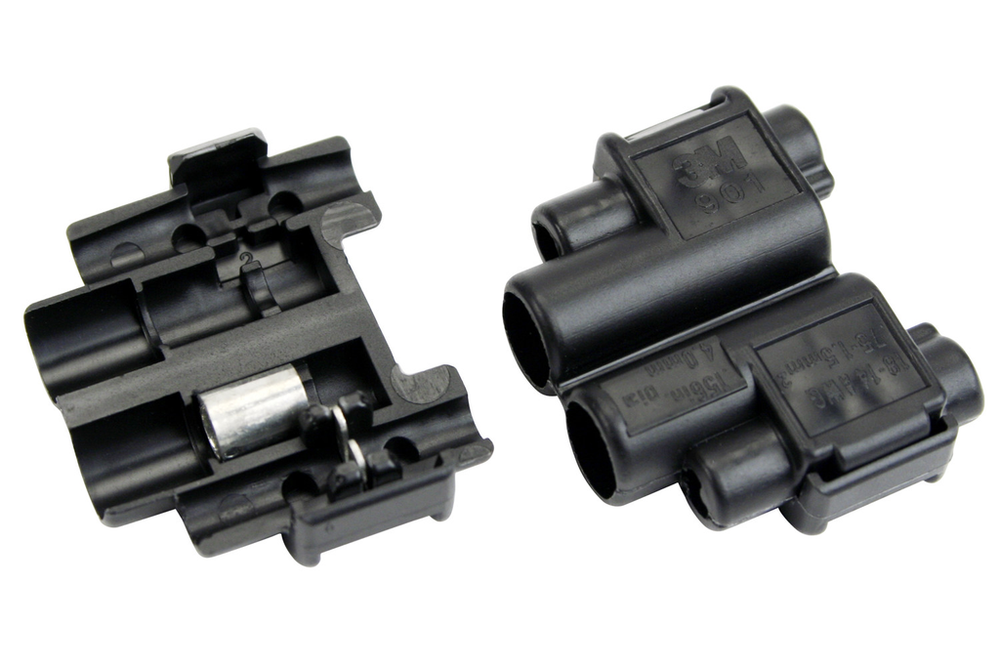

3M™ Scotchlok™ Insulation Displacement Connector 901 is an Inline Bullet Receptacle that electrically connects to a run wire mid span and allows for a tap wire to be connected with a 0.156" male bullet without cutting or stripping the wire.

Features

  • Suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring
  • Black, polypropylene-insulated connector electrically taps into a wire in mid-span without cutting
  • Accommodates 18 to 14 AWG solid/stranded (tap) and 12 to 10 AWG solid/stranded (run)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Tap Maximum Insulation Outer Diameter (Imperial)0.145
Product TypeRun & Tap
Wire Connector TypeIDC Connectors
Units per Case5000.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connector / Connector Tool3M Crimping Tool E-9BM and/or Mechanics (slip joint) Pliers
Maximum Conductor Size (Metric)1.5
Run Maximum Insulation Outer Diameter (Metric)3.7
Run Maximum Insulation Outer Diameter (Imperial)0.145
Recommended Crimping ToolE-9BM and/or Mechanics (slip joint) Pliers
Grease Filling Against CorrosionNo
Voltage ApplicationLow Voltage
MaterialInsulator: Polypropylene, U-contact: Tin-plated Copper Alloy
Tap Maximum Insulation Outer Diameter (Metric)3.7
Conductor Sizes (Imperial)14 AWG (Stranded)
Max. Number of Cores1.0
Moisture ResistantNo
PackagingPouch
