3M Products & Supplies

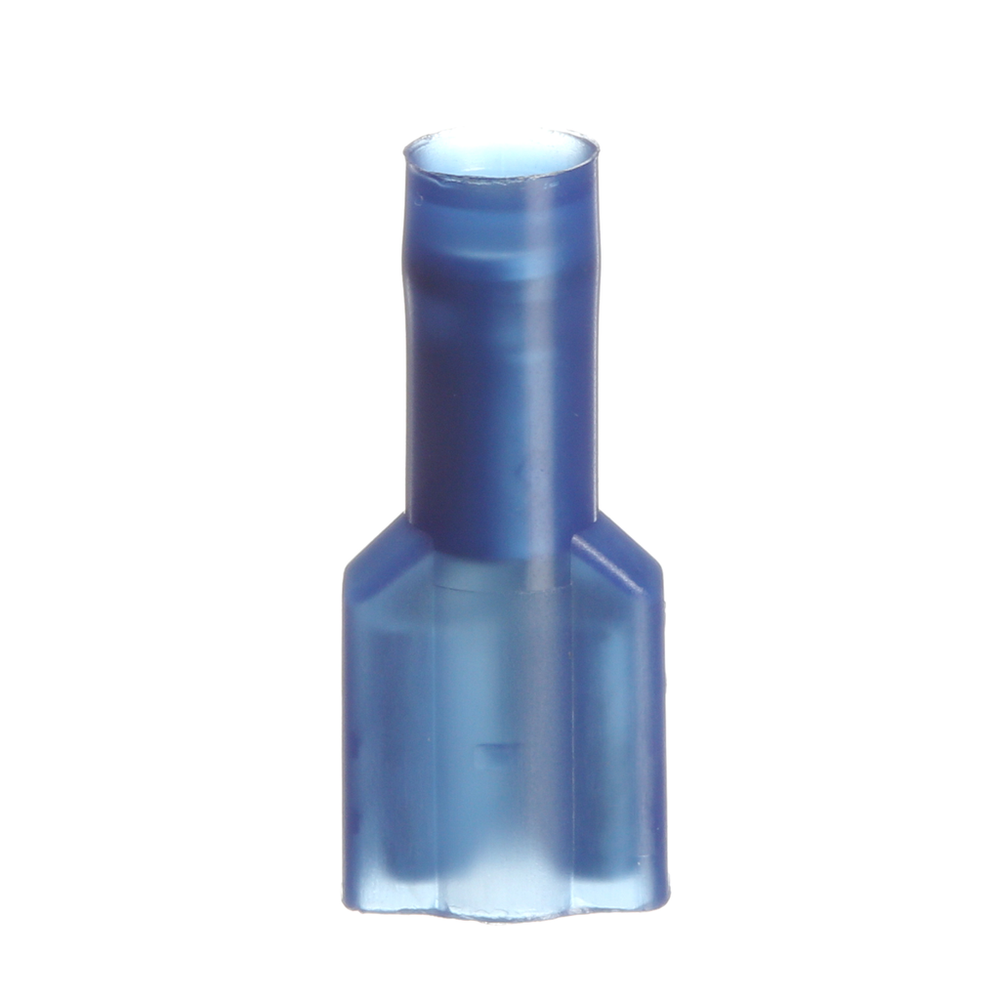

3M™ Scotchlok™ Female Disconnect Nylon Insulated, 100/bottle, MNG14-250DFIX, 500/Case - 7000133361

Sold As: 100-Pack
SKU: 7000133361
MPN: 7000133361
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128588000
3M ID: 80611464464
5 Digit UPC: 58800
$123.62 ($1.24 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 22-18 AWG and has case quantities of 500 per case.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Allows for quick and easy disconnect of wires
  • Nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force

Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Recommended Voltage Rating UOMV
Units per Case500.0
Product ColorBlue
Maximum Conductor Size (Imperial)14 AWG
Maximum Insulation Outer Diameter (Imperial) UOMin
Pad Width0.25
Overall Width (Imperial) UOMin
Interrupt Free ShiftingNo
Packaging100 per bottle
Maximum Operating Temperature (Fahrenheit)221.0
Connector StyleInsulation Displacement
Minimum Conductor Size (Metric)1.5 mm²
Maximum Insulation Outer Diameter (Metric) UOMmm
Barrel StyleButted
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Conductor Size (Metric)2.5 mm²
Insulation MaterialNylon with Insulation Grip
Barrel Inside Diameter0.080 Inch
Connection Width (Imperial) UOMin
Tab Width0.250
Mates with Male Tab Width (W')0.25 Inch
Connector / Connector ToolConnector
Overall Diameter (Imperial) UOMin
Connection Width (Imperial)0.25
MaterialETP Copper
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Fastener OrientationFemale
Grease Filling Against CorrosionNo
Connection Width (Metric)6.35
Overall Length (Imperial)0.87
Maximum Recommended Voltage Rating600.0
Overall Length (Metric)22.09
Diameter (D)0.23 Inch
Flame RetardantNo
Maximum Insulation Outer Diameter (Imperial)0.145
Barrel Length (Imperial)0.25 Inch
Maximum Insulation Outside Diameter0.145 in
Overall Length (Metric) UOMmm
Overall Width (Imperial)0.37
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal StyleFully Insulated
UL File NumberE70512
Minimum Conductor Size (Imperial)16 AWG
Disconnect TypeFemale
Connection TypeWire
Terminal TypeDisconnect
Mates with Female Width0.250 Inch
Maximum Operating Temperature (Celsius)105.0
Conductor Sizes (Imperial)16 - 14 AWG
Overall Diameter (Imperial)0.23
Insulation ColorBlue
Connection Width (Metric) UOMmm
