3M Products & Supplies

3M™ Scotchlok™ Locking Fork Heatshrink, 25/bottle, MH14-10FLX, spring-like tongue firmly fits around the stud, 125/Case - 7000133387

Sold As: 25-Pack
SKU: 7000133387
MPN: 7000133387
For an accurate lead time please contact us
UPC: 00051128589021
3M ID: 80611465487
5 Digit UPC: 58902
$30.90 ($1.24 / Count)
Hurry up! Current stock:

Product Description

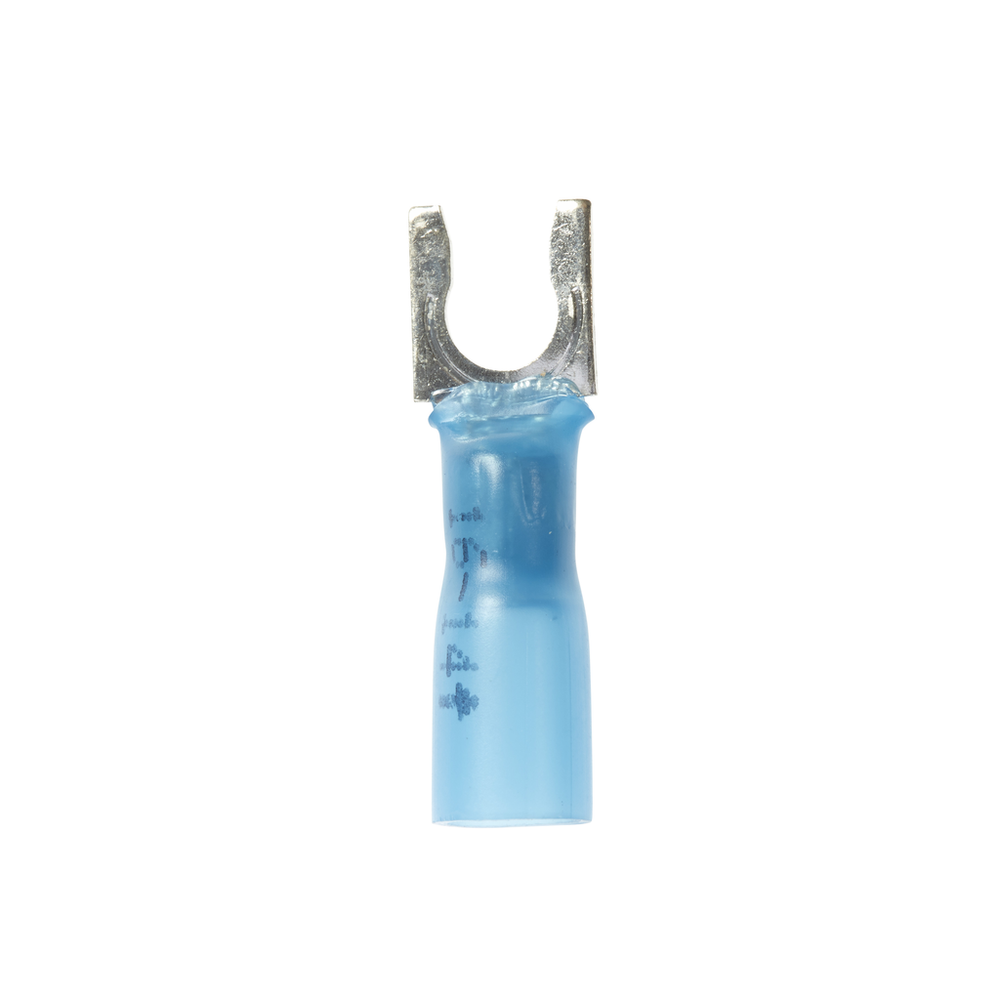

3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Electrolytic copper construction offers good conductivity
  • Spring-like tongue firmly fits around the stud
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)

Downloads

Specifications

Country of OriginUnited States
Maximum Insulation Outside Diameter0.145 in
Product ColorBlue
Overall Width (Imperial) UOMin
Terminal TypeFork
Overall Width (Metric) UOMmm
Minimum Conductor Size (Metric)1.31 mm²
Stud Size#10
Maximum Insulation Outer Diameter (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal StyleLocking
Overall Length (Imperial)1.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMin
Maximum Conductor Size (Metric)2.08 mm²
Maximum Operating Temperature (Fahrenheit) UOMDegree
Dimension E0.76 Inch
UL File NumberE23438
Barrel Length (Imperial)0.76 Inch
Insulation MaterialHeat Shrink
Maximum Conductor Size (Imperial)14 AWG
Packaging25 per bottle
Barrel Inside Diameter0.090 Inch
Maximum Recommended Voltage Rating600.0
Minimum Conductor Size (Imperial)16 AWG
Maximum Operating Temperature (Fahrenheit)221.0
Overall Width (Imperial)0.32
MaterialPlastic
Overall Length (Metric)25.4
Maximum Insulation Outer Diameter (Metric)3.7
Units per Case125.0
Overall Width (Metric)8.12
Maximum Operating Temperature (Celsius)105.0
Fork TypeLocking
Overall Length (Metric) UOMmm
Clearance (C)0.12 Inch
Barrel StyleBrazed
Maximum Recommended Voltage Rating UOMV
