3M Products & Supplies

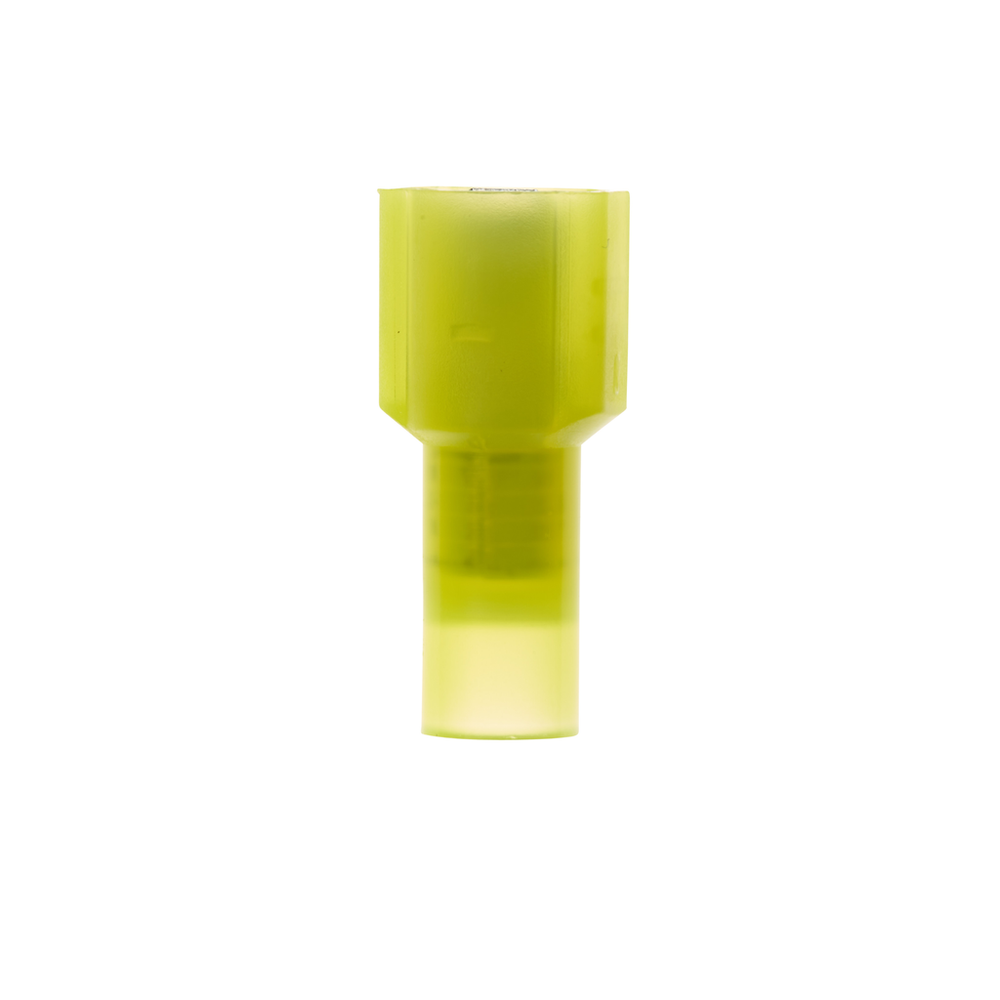

3M™ Scotchlok™ Male Disconnect, Fully Nylon Insulated Butted Seam MNU10-250DMIK, 12-10 AWG, 500/Case - 7100164176

Sold As: 500-Pack
SKU: 7100164176
MPN: 7100164176
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007023012
3M ID: 80610057780
5 Digit UPC: 2301
$397.07 ($0.79 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 12-10 AWG and has case quantities of 500 per case.

Features

  • Allows for quick and easy disconnect of wires
  • This male disconnect terminal offers excellent holding force
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Nylon-insulated, butted-seam barrel offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
UL File NumberE70512
Terminal TypeDisconnect
Connection Width (Imperial)0.25
Barrel Length (Imperial)0.25 Inch
Maximum Conductor Size (Imperial)10 AWG
Connection Width (Imperial) UOMin
Overall Width (Imperial)0.47
Barrel Inside Diameter0.15 Inch
Pad Width0.25
Minimum Conductor Size (Imperial)12 AWG
Insulation MaterialNylon
Overall Diameter (Imperial) UOMin
Connection Width (Metric)6.35
Barrel StyleButted
Maximum Insulation Outer Diameter (Imperial) UOMin
Overall Diameter (Imperial)0.39
Overall Length (Imperial)1.05
Terminal StyleFully Insulated
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Width (Imperial) UOMin
Minimum Conductor Size (Metric)4 mm²
Packaging500 per bulk box
Tab Width0.187
Connection Width (Metric) UOMmm
Diameter (D)0.39 Inch
Units per Case500.0
Disconnect TypeMale
Male Tab Width (W')0.25 Inch
Fastener OrientationMale
Overall Length (Imperial) UOMin
Maximum Conductor Size (Metric)6 mm²
Maximum Insulation Outer Diameter (Imperial)0.25
