3M Products & Supplies

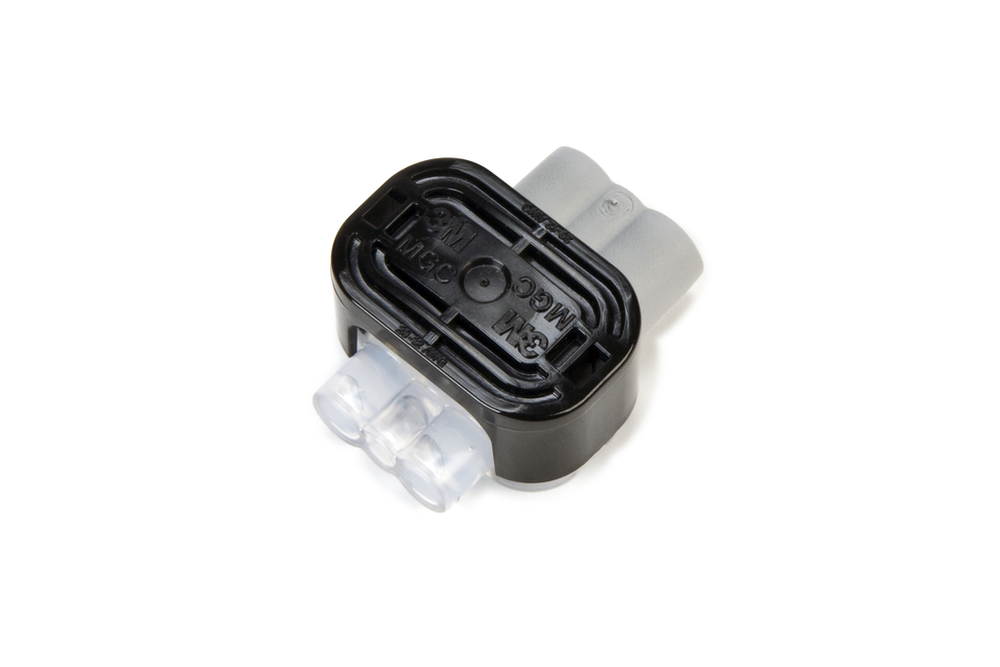

3M™ Scotchlok™ Moisture Guard Connector, 25 per bag, 250/Case - 7100006290

Sold As: 250-Pack
SKU: 7100006290
MPN: 7100006290
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128568279
3M ID: 80611434152
5 Digit UPC: 56827
$545.03 ($2.18 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Moisture Guard Connector MGC offers a convenient solution to connect wires for landscape irrigation and lighting applications. The mineral oil based grease inside the connector safeguards against moisture.

Features

  • Accommodates 16 to 14 AWG solid/stranded, 12 AWG stranded (outer ports) and 18 AWG solid/stranded, 20 AWG stranded (inner port)
  • C UL Listed and RoHS 2011/65/EU Compliant
  • Suitable for applications requiring moisture and UV protection
  • Grease protects against moisture
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)12 AWG (Stranded)
Maximum Conductor Size (Metric)4
Wire Connector TypeIDC Connectors
Maximum Insulation Diameter (Inside Port) (Metric)3.8 mm
UL File NumberE23438
Minimum Conductor Size (Imperial)18 AWG
Maximum Voltage Rating600 V
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Conductor Sizes (Imperial)12 AWG (Stranded)
Grease Filling Against CorrosionNo
PackagingBag
Connection TypeMoisture Guard
Interrupt Free ShiftingNo
Maximum Insulation Diameter (Inside Port)0.15 in
Flame RetardantUL-94 V-2
Minimum Conductor Size (Metric)1 mm²
