3M Products & Supplies

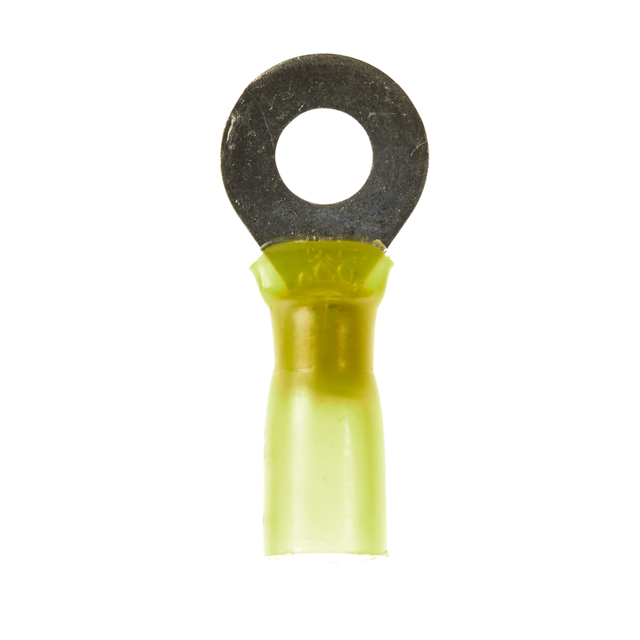

3M™ Scotchlok™ Ring Heatshrink, 25/bottle, MH10-10RX, standard-style ring tongue fits around the stud, 125/Case - 7000133378

Sold As: 25-Pack
SKU: 7000133378
MPN: 7000133378
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128588901
3M ID: 80611465362
5 Digit UPC: 58890
$39.89 ($1.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Heat Shrink Brazed Seam Ring Tongue ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Width (Metric) UOMmm
Overall Width (Imperial)0.38
Connection Width (Metric)4.826
Connection Width (Metric) UOMmm
Overall Length (Imperial) UOMin
Overall Length (Metric) UOMmm
Connection Width (Imperial)0.19
Insulation MaterialHeat Shrink
Overall Length (Metric)27.94
Minimum Conductor Size (Imperial)12 AWG
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Imperial)10 AWG
Maximum Conductor Size (Metric)5.26
Connection TypeCrimp
Overall Width (Metric)9.65
Product ColorYellow
Overall Length (Imperial)1.1
Connection Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Terminal TypeRing
Minimum Conductor Size (Metric)3.31 mm²
Overall Width (Imperial) UOMin
