3M Products & Supplies

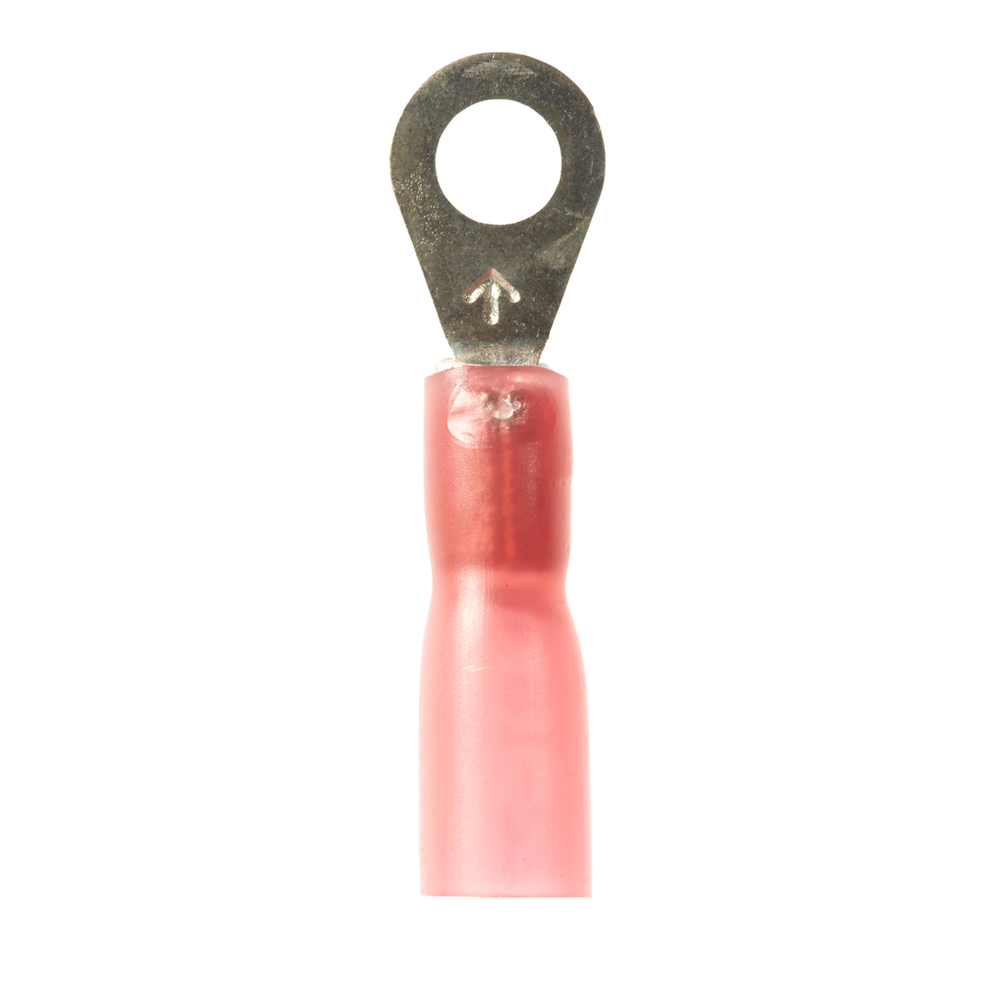

3M™ Scotchlok™ Ring Heatshrink, 25/bottle, MH18-8R/LX, standard-style ring tongue fits around the stud, 125/Case - 7000133395

Sold As: 25-Pack
SKU: 7000133395
MPN: 7000133395
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128589120
3M ID: 80611465586
5 Digit UPC: 58912
$30.90 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Heat Shrink Brazed Seam Ring Tongue ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Specifications

Country of OriginUnited States
Overall Length (Imperial)1.0
Maximum Operating Temperature (Celsius)105.0
Connection Width (Imperial)0.164
Terminal TypeRing
Insulation MaterialHeat Shrink
Minimum Conductor Size (Metric)0.326 mm²
Connection TypeCrimp
Overall Width (Metric) UOMmm
Overall Width (Metric)7.87
Maximum Conductor Size (Imperial)18 AWG
Overall Length (Metric)25.4
Overall Length (Metric) UOMmm
Maximum Conductor Size (Metric)0.823
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.31
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)22 AWG
Connection Width (Metric)4.166
Overall Length (Imperial) UOMin
Connection Width (Imperial) UOMin
Product ColorRed
Connection Width (Metric) UOMmm
