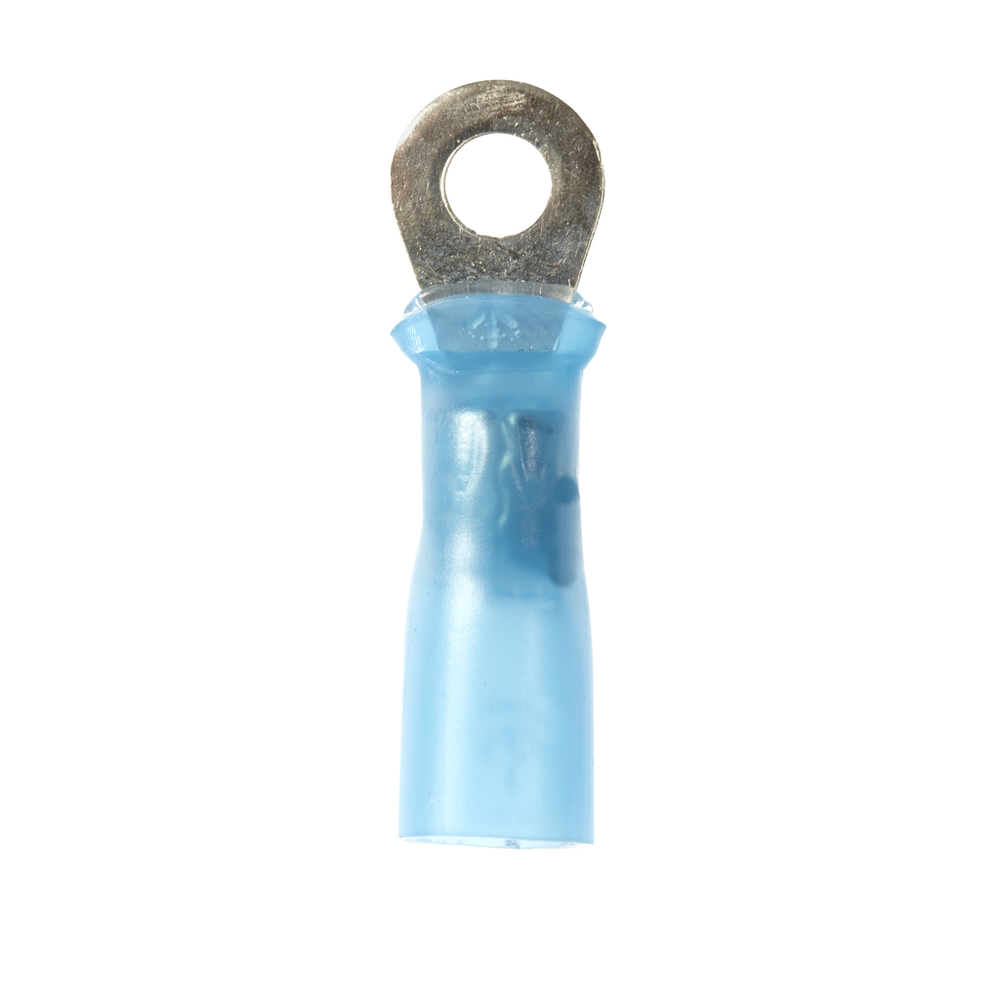

3M™ Scotchlok™ Ring Heatshrink, 25/bottle, MH14-6R/LX, standard-style ring tongue fits around the stud, 125/Case - 7000133384

Sold As: 25-Pack
SKU: 7000133384
MPN: 7000133384
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128588987
3M ID: 80611465446
5 Digit UPC: 58898
$30.90 ($1.24 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Heat Shrink Brazed Seam Ring Tongue ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • Standard-style ring tongue fits around the stud
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Metric) UOMmm
Overall Width (Metric)7.87
Connection Width (Imperial)0.138
Overall Length (Metric)25.4
Overall Width (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
Maximum Conductor Size (Metric)2.08
Insulation MaterialHeat Shrink
Terminal TypeRing
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)105.0
Maximum Conductor Size (Imperial)14 AWG
Overall Length (Metric) UOMmm
Connection Width (Imperial) UOMin
Overall Width (Imperial)0.31
Minimum Conductor Size (Metric)1.31 mm²
Overall Length (Imperial)1.0
Overall Length (Imperial) UOMin
Overall Width (Metric) UOMmm
Connection TypeCrimp
Product ColorBlue
Connection Width (Metric)3.5
