3M Products & Supplies

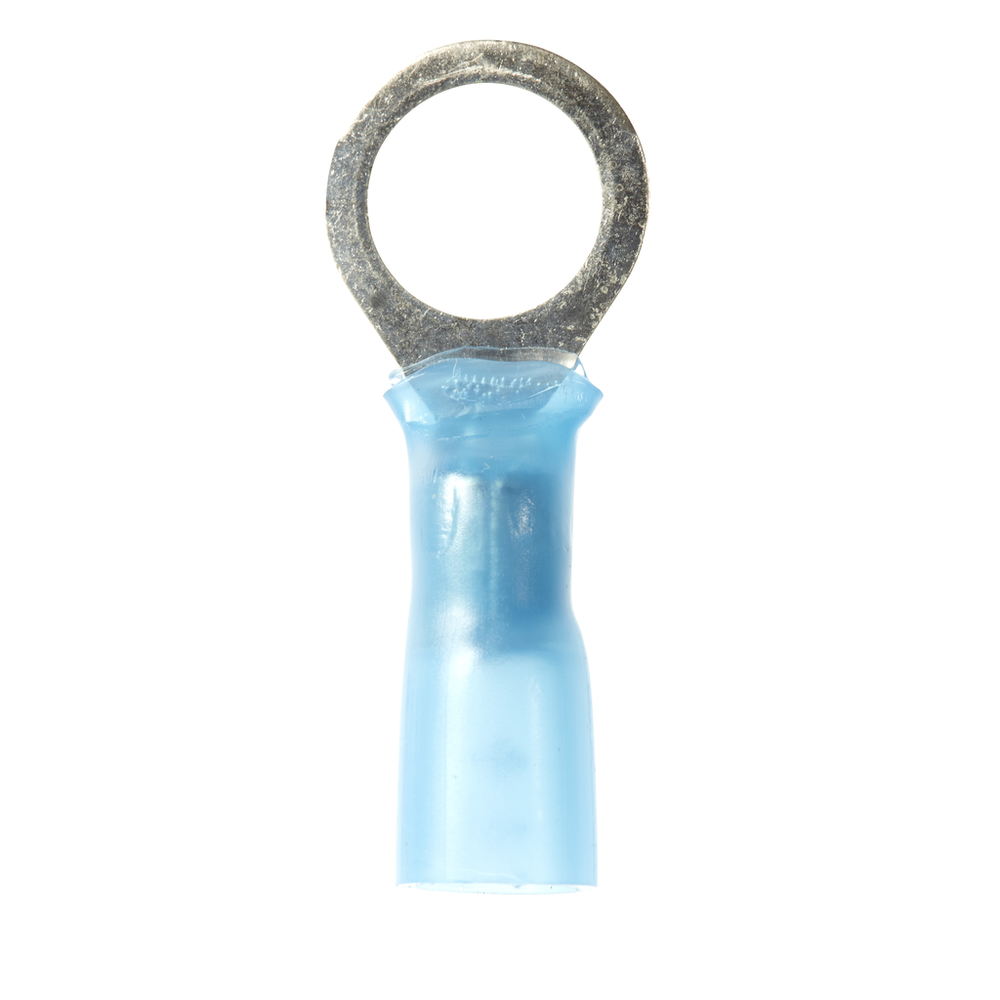

3M™ Scotchlok™ Ring Heatshrink, 25/bottle, MH14-516R/SX, standard-style ring tongue fits around the stud, 125/Case - 7000133390

Sold As: 25-Pack
SKU: 7000133390
MPN: 7000133390
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128589069
3M ID: 80611465529
5 Digit UPC: 58906
$39.89 ($1.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Heat Shrink Brazed Seam Ring Tongue ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Standard-style ring tongue fits around the stud
  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Terminal TypeRing
Connection Width (Imperial) UOMin
Minimum Conductor Size (Imperial)16 AWG
Overall Width (Imperial)0.47
Overall Length (Metric)27.94
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Conductor Size (Metric)1.31 mm²
Overall Width (Metric)11.93
Product ColorBlue
Overall Length (Imperial) UOMin
Connection Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Connection Width (Metric)8.0
Insulation MaterialHeat Shrink
Maximum Conductor Size (Metric)2.08
Overall Length (Imperial)1.1
Overall Length (Metric) UOMmm
Maximum Conductor Size (Imperial)14 AWG
Connection TypeCrimp
Connection Width (Imperial)0.315
