3M Products & Supplies

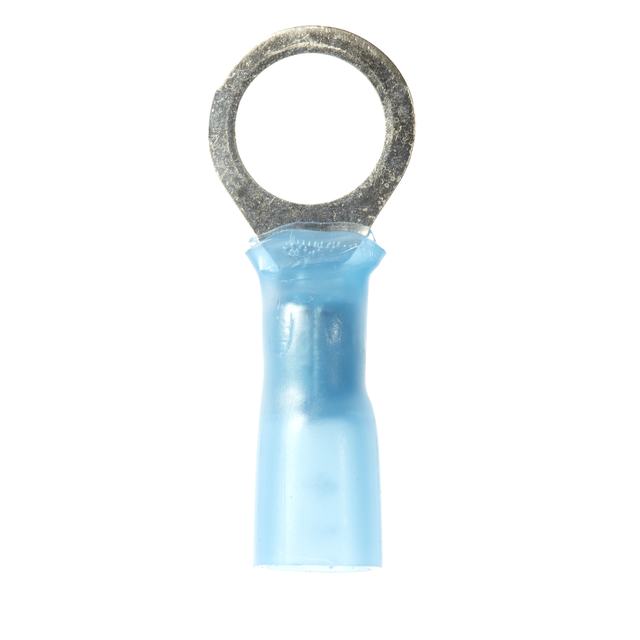

3M™ Scotchlok™ Ring Heatshrink, 25/bottle, MH14-14R/SX, standard-style ring tongue fits around the stud, 125/Case - 7000133388

Sold As: 25-Pack
SKU: 7000133388
MPN: 7000133388
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128589038
3M ID: 80611465495
5 Digit UPC: 58903
$39.89 ($1.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Heat Shrink Brazed Seam Ring Tongue ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Standard-style ring tongue fits around the stud
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Metric)6.35
Product ColorBlue
Overall Width (Metric)11.93
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)105.0
Connection Width (Imperial)0.25
Maximum Conductor Size (Metric)2.08
Connection Width (Metric) UOMmm
Insulation MaterialHeat Shrink
Terminal TypeRing
Overall Length (Metric) UOMmm
Connection Width (Imperial) UOMin
Overall Length (Imperial)1.1
Overall Width (Imperial) UOMin
Connection TypeCrimp
Minimum Conductor Size (Metric)1.31 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMin
Overall Length (Metric)27.94
Overall Width (Imperial)0.47
Maximum Conductor Size (Imperial)14 AWG
Minimum Conductor Size (Imperial)16 AWG
