3M Products & Supplies

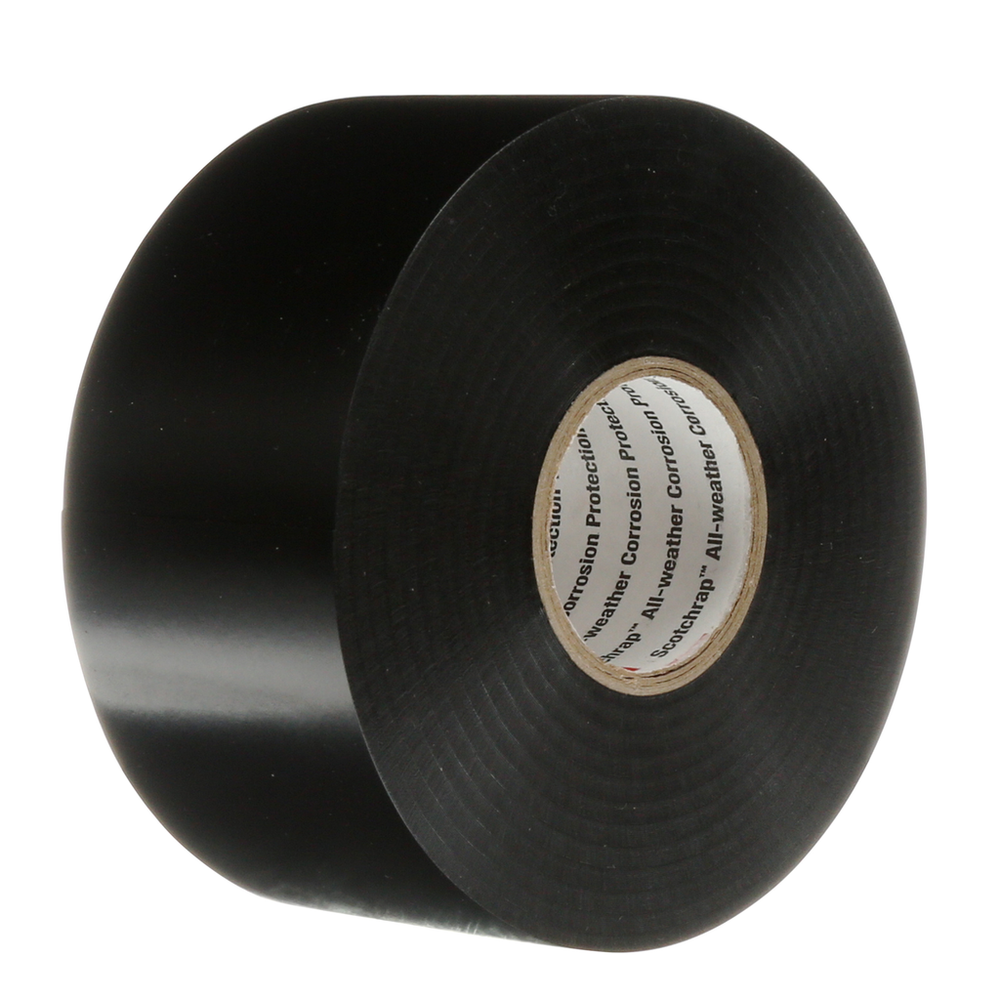

3M™ Scotchrap™ Corrosion Protection Tape 50, 50mm x 30m, 24 Rolls/Case - 7000005812

Sold As: 24-Pack
SKU: 7000005812
MPN: 7000005812
For an accurate lead time please contact us
UPC: 00054007106388
3M ID: 80008006639
5 Digit UPC: 10638
$689.37 ($28.72 / Count)
Hurry up! Current stock:

Product Description

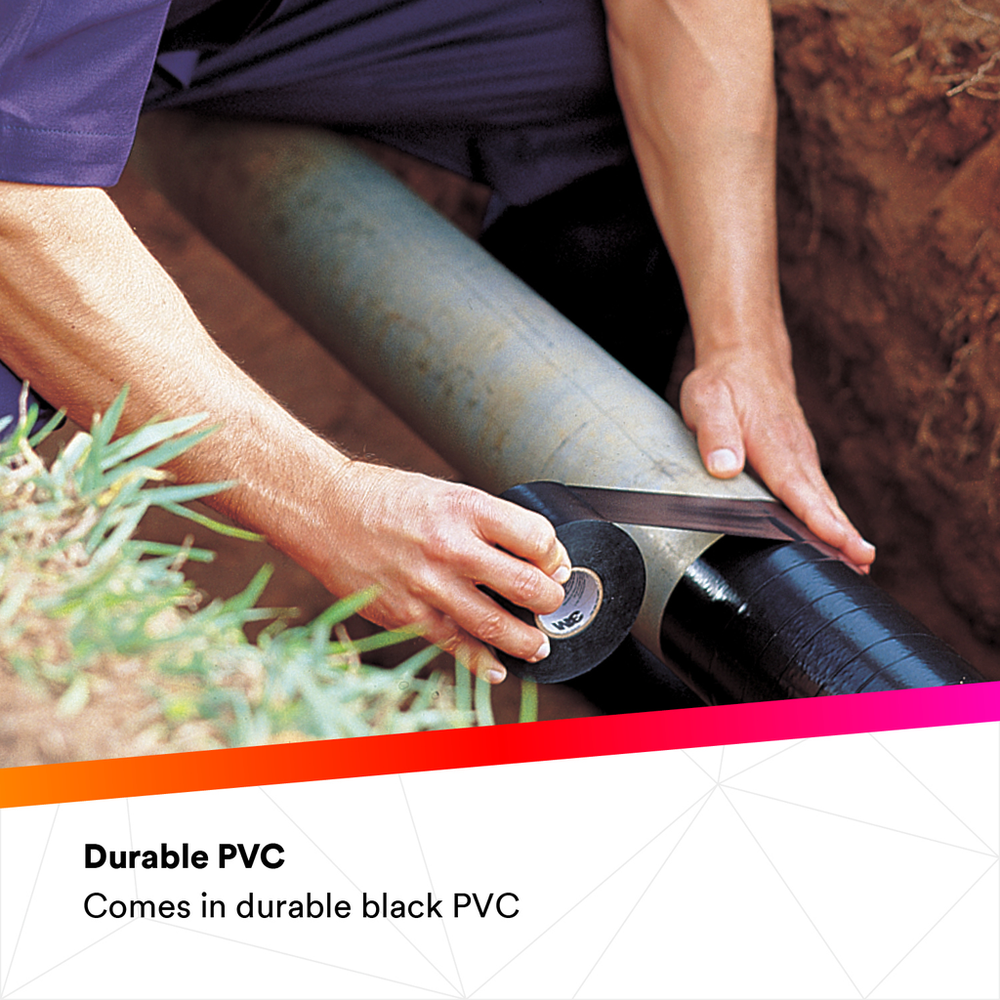

3M™ Scotchrap™ Tape 50 is a premium grade, 10 mil thick, all weather, PVC backing tape. It withstands temperatures of 55 to 176 °F ( 48 to 80 °C). This high tack adhesive tape offers resistance to corrosion, impact, abrasion and puncture, making it suitable for use on metal piping systems, conduits and fittings both above and below ground.

Features

  • INDUSTRIAL APPLICATIONS: Ideal for maintaining and repairing electrical systems in the construction, irrigation, mining, utility, and energy industries
  • FLEXIBLE PVC BACKING: Offers mechanical strength and electrical insulation properties
  • UV EXPOSURE: Highly resistant to UV rays, soil acids, alkalis, salts, chemicals and varying weather conditions
  • HIGH TACK ADHESIVE: Offers resistance to corrosion, impact, abrasion and puncture
  • EXTREME TEMPERATURE ADHESIVE: Withstands a wide range of temperatures -55 to 176 °F (-48 to 80 °C)
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Length (Imperial)100.0
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Shelf Life UOMYear
Total Tape Thickness without Liner (Metric)0.3
Minimum Operating Temperature (Fahrenheit)-55.0
Overall Width (Imperial)2.0
Specifications MetRoHS 2011/65/EU, VDE 0340-TEIL1
Overall Thickness (Metric) UOMmm
Backing Thickness (Metric)0.25
Chemical ResistantYes
Overall Thickness (Imperial) UOMin
Adhesion Strength (Metric)21.9
Overall Length (Metric) UOMm
Maximum Installation Temperature (Fahrenheit)150.0
Overall Width (Metric) UOMmm
Maximum Installation Temperature (Fahrenheit) UOMDegree
Electrolytic Corrosion Factor0.9
Overall Thickness (Metric)0.25
Total Tape Thickness without Liner (Metric) UOMmm
Overall Thickness (Imperial)0.01
Backing Thickness (Imperial) UOMmil
Maximum Installation Temperature (Celsius)65.0
Backing Thickness (Metric) UOMmm
Tape TypeCorrosion Protection
Overall Width (Metric)50.8
ApplicationCorrosion Protection
Maximum Installation Temperature (Celsius) UOMDegree
Overall Length (Metric)30.5
Maximum Operating Temperature (Fahrenheit)176.0
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMft
Total Tape Thickness without Liner (Imperial)10.0
UV ResistantYes
Maximum Operating Temperature (Celsius)80.0
Performance LevelProfessional Grade
Minimum Operating Temperature (Celsius)-48.0
Elongation at Break200 %
Adhesion Strength20.0
Adhesion Strength (Metric) UOMN/100mm
Backing Thickness (Imperial)9.8
Minimum Operating Temperature (Fahrenheit) UOMDegree
Product ColorBlack
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesive TypeRubber
