3M Products & Supplies

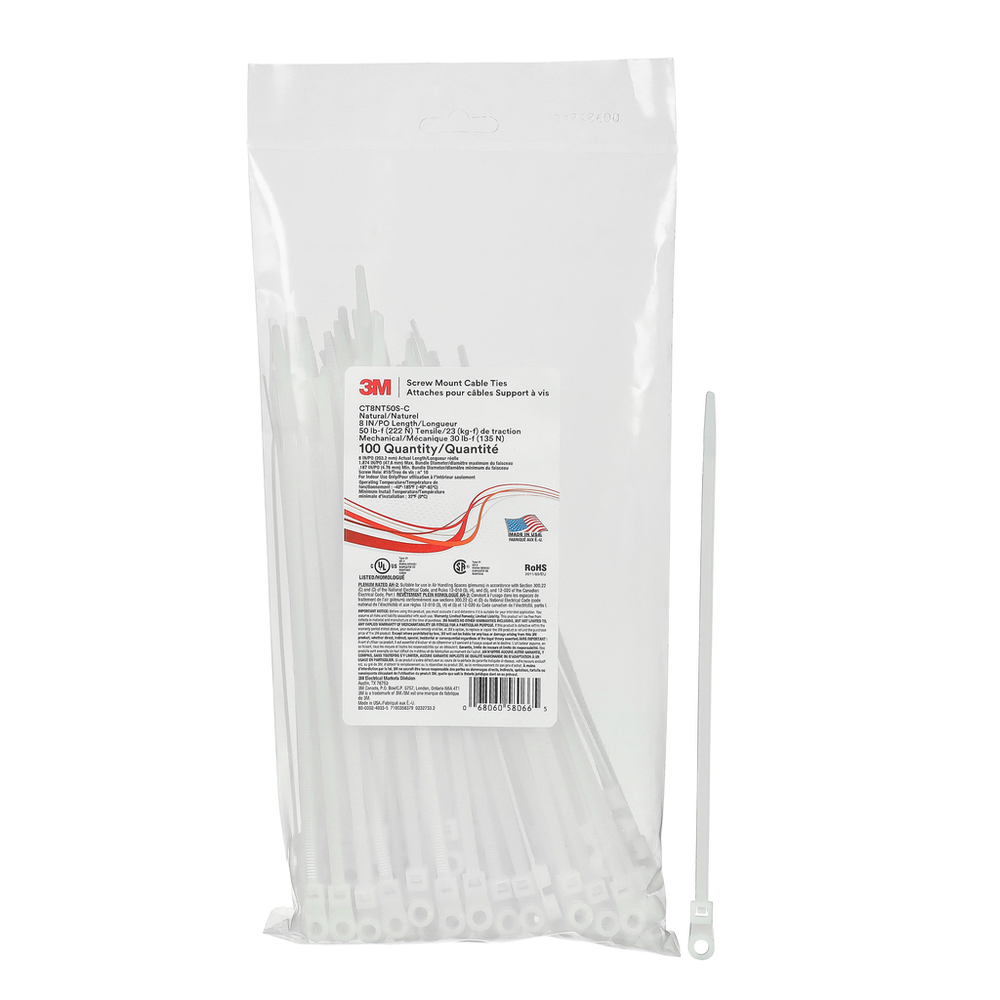

3M™ Screw Mount Cable Tie CT8NT50S-C, Natural 8 inch 50 lb, 100/Bag, 1000/Case - 7100358379

Sold As: 100-Pack
SKU: 7100358379
MPN: 7100358379
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060580658
3M ID: 80000240335
$5.62 ($0.06 / Count)
Hurry up! Current stock:

Product Description

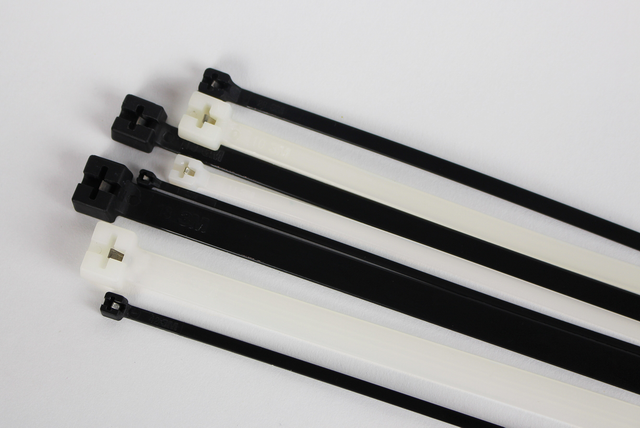

3M™ Screw Mount Cable Ties allow controlled positioning of cables. The easy-to-use ties are made with high-quality 6/6 nylon and can be quickly mounted to walls and structures with screws, bolts or rivets for added security.

Features

  • Secure wire bundles and harness components quickly, without slipping
  • Can be quickly mounted to walls and structures with screws, bolts or rivets for added security
  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
  • Made in the USA
Spec Sheet



Downloads

Specifications

Overall Length (Imperial)8.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial) UOMin
ApplicationSecure wire bundling
Cable Length (Imperial) UOMin
UL ApprovalYes
Cable Length (Imperial)8.0
Maximum Operating Temperature (Celsius)85.0
Maximum Insulation Outer Diameter (Metric)3.7
Overall Width (Imperial)0.298
Tensile Strength (Metric) UOMkg
Overall Width (Metric) UOMmm
Minimum Bundle Diameter0.0625 Inch
Operating Temperature (Celsius)85 Degree Celsius
Minimum Operating Temperature (Fahrenheit)-40.0
UV ResistantNo
Minimum Bundle Diameter (Metric)1.6 mm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Cable Length (Metric)203.2
Operating Temperature Range (Fahrenheit)-40 °F to 185 °F
Product ColorNatural
Package Quantity UOMEACH
Operating Temperature Range (Celsius)-40 °C to 85 °C
Overall Length (Metric) UOMmm
Country of OriginUnited States
MaterialNylon 6/6
Tensile Strength (kg)54.43 kg
Minimum Operating Temperature (Celsius)-40.0
Operating Temperature (Fahrenheit)185 Degree Fahrenheit
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature85 Degree Celsius
Minimum Installation Temperature (Celsius)-20 Degree Celsius
Maximum Insulation Outer Diameter (Metric) UOMmm
Overall Width (Metric)7.56
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)185.0
Tensile Strength (Metric)22.68
Flammability RatingUL 94 V-2
Mil SpecMS3367-5-0
Overall Length (Metric)203.2
TypeStandard
Maximum Insulation Outside Diameter0.145 in
Product TypeCable Tie
Cable Length (Metric) UOMmm
Plenum RatedYes
