3M Products & Supplies

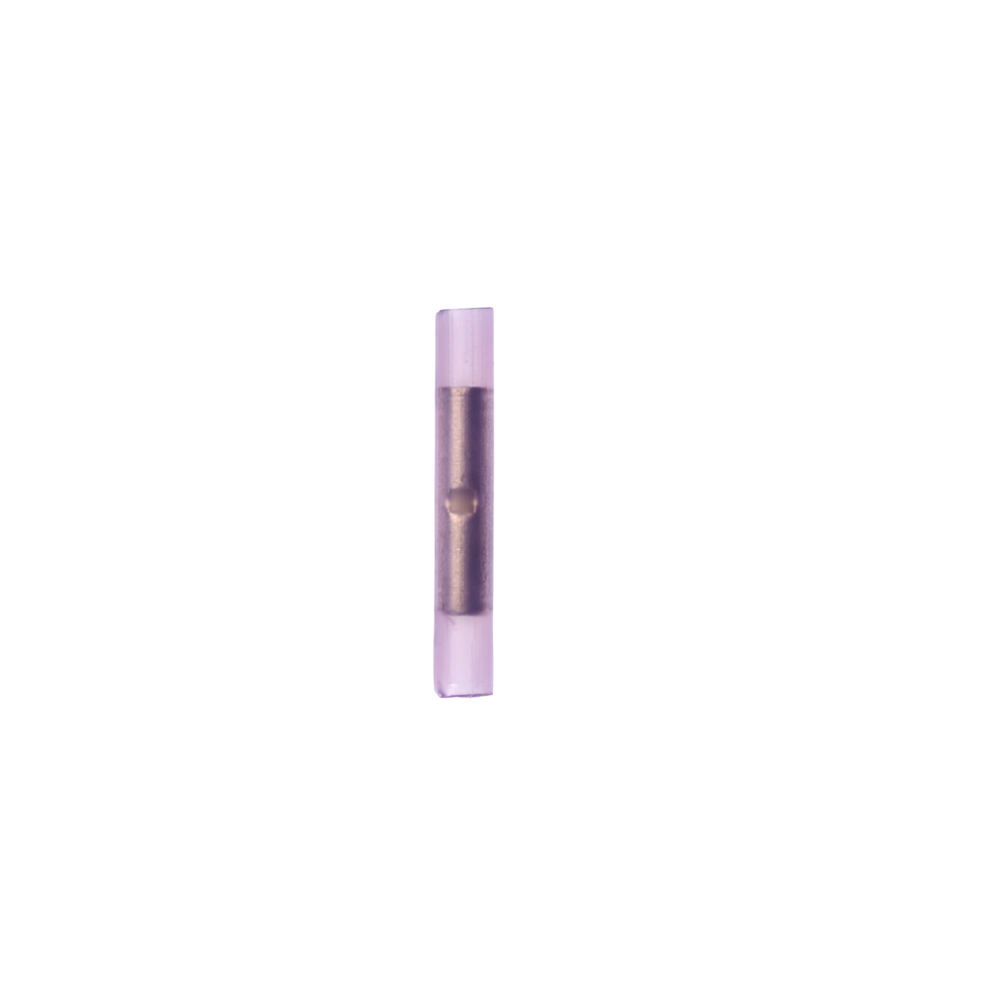

3M™ Seamless Butt Heat Shrink Connector 61-SH - 7100164994

Sold As: 1000-Pack
SKU: 7100164994
MPN: 7100164994
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007950059
3M ID: 80611255052
MPN: 61-SH
$233.74 ($0.23 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Heat Shrink Butt Connector ensures an ideal fit with great performance. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Built-in wire stop for correct positioning
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Downloads

Specifications

Maximum Conductor Size (Metric)1 mm²
Body MaterialCopper Alloy
Connector TypeButt
Insulation MaterialHeat Shrink
Minimum Conductor Size (Imperial)22 AWG
Minimum Conductor Size (Metric).34 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Conductor Size (Imperial)18 AWG
Country of OriginUnited States
Connection Width (Imperial)0.062
Connection Width (Imperial) UOMin
Connection Width (Metric) UOMmm
Connection Width (Metric)1.574
Maximum Insulation Outer Diameter (Metric)0.0
Terminal TypeButt Connectors
