3M Products & Supplies

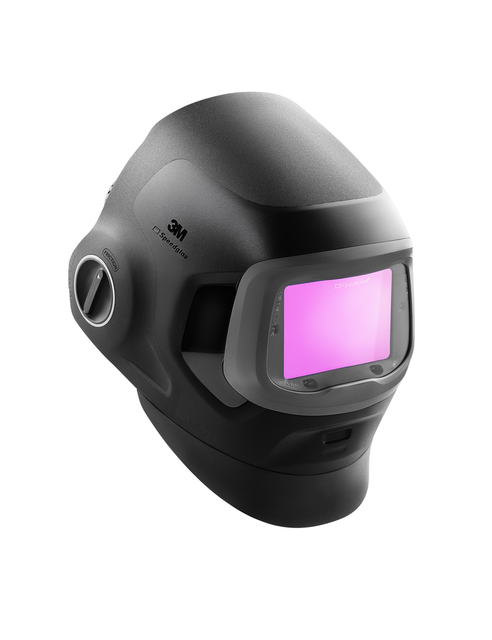

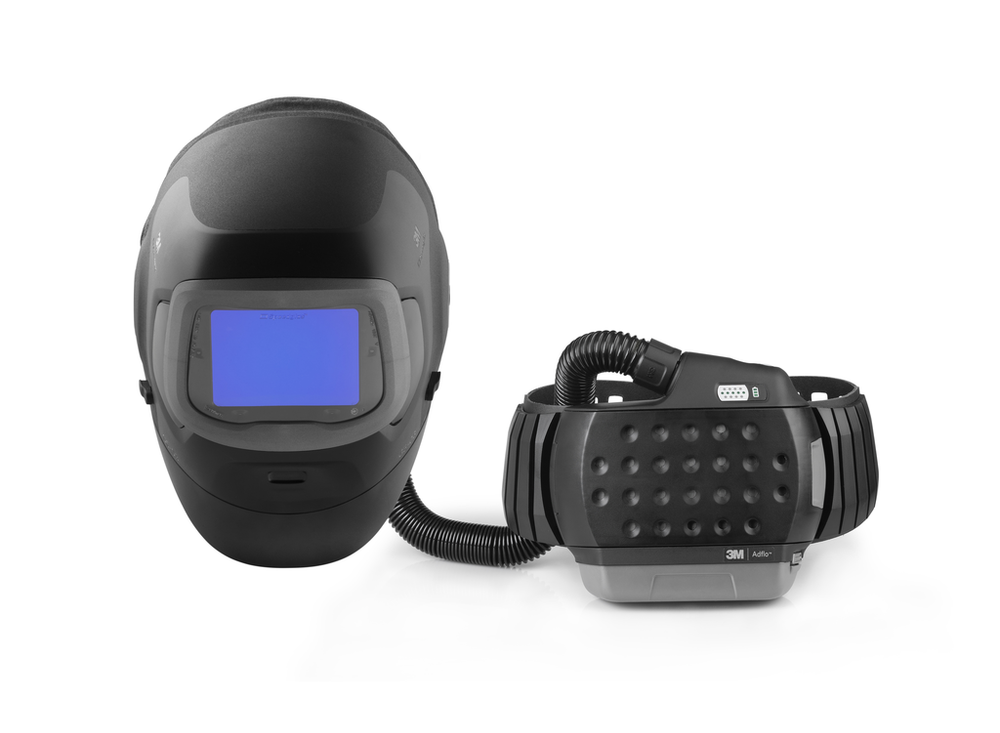

3M™ Speedglas™ G5-03 Pro-Air Welding Helmet with 3M™ Adflo™ PAPR Assembly 45-1101-30TW, G5TW ADF, 1 EA/Case - 7100312635

SKU: 7100312635
MPN: 7100312635
For an accurate lead time please contact us
UPC: 00076308401740
3M ID: 70100400152
$2,227.32 each
Hurry up! Current stock:

Product Description

The 3M™ Speedglas™ Welding Helmet, G5-03 Pro Air is designed for the versatile welder. Customizable airflow, an assortment of head covers, neck protectors, and shrouds, as well as an optional task light to allow better visibility of the work piece. G5-03 Pro Air auto-darkening filters (ADFs) all feature our Natural Color Technology. With the G5VC ADF, the welder can leverage variable color technology to view the weld while in dark state through either warm, cool, or natural color tones as different applications, lighting, and materials, may warrant different colors and contrasts. With the G5TW ADF, there is a tack welding mode that uses an intermediate shade 5 light state to help minimize eye strain during tack welding applications. If an arc is not struck within 2 seconds, the welding filter will switch back to the normal light state of shade 2.5.

Features

  • Ergonomic, adjustable head suspension
  • GRIND and CUT mode functionality, when using G5 auto darkening filters
  • Robust, compact design
  • Available in two different Auto-Darkening Lens options (VC/TW)

Recommended Application

  • Welding
Spec Sheet



Downloads

Specifications

Product TypeAuto-darkening Welding Helmet with Powered Air Respirator
Grinding OptionADF with Grind Mode
Number of Sensors4
Headgear TypeWelding Helmet
Specifications MetANSI Z87.1, Assigned Protection Factor (APF) = 25, CSA Z94.3
Country of OriginPoland
Battery TypeADF: Lithium 3V (CR2450)
Viewing Area (Imperial)2.8 in x 4.25 in
Safety Helmet IncludedNo
Viewing Area (Metric)71 mm x 108 mm
Lens TypeAuto-darkening
Side WindowsYes
Product SeriesG5
Breathing Tube GradeAdjustable
Air SourcePAPR
Lens Shade2.5, 5, 8 - 13
FeaturesFiltrating Air for Head Top
NIOSH Cartridge or Filter Assigned Color CodingMagenta
Switching Time (Light-Dark)0.1 ms @ 73°F (23°C)
Recommended IndustryGeneral Manufacturing
Sensitivity5 Level (TIG>1A & MIG/MAG, Stick)
