3M Products & Supplies

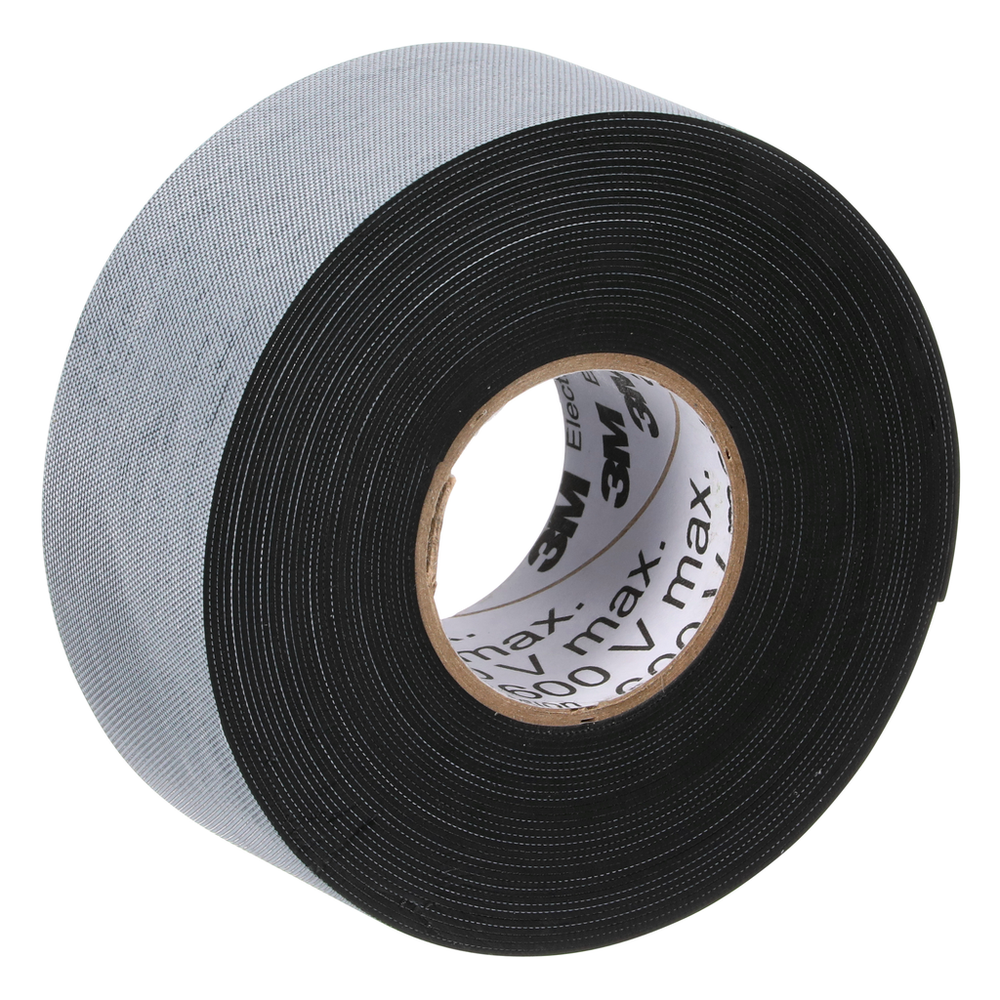

3M™ Temflex™ Rubber Splicing Tape 2155, 1-1/2 in x 22 ft, Black, 45 rolls/Case - 7000090115

Sold As: 45-Pack
SKU: 7000090115
MPN: 7000090115
For an accurate lead time please contact us
UPC: 00054007503491
3M ID: HT002001119
5 Digit UPC: 50349
$558.97 ($12.42 / Count)
Hurry up! Current stock:

Product Description

3M™ Temflex™ Tape 2155 is a 30 mil, general purpose, highly conformable, electrically insulating, low voltage rubber splicing tape. The self fusing tape is designed to offer guaranteed performance when used with solid dielectric cable insulations and has a liner, which will not stick to the tape upon unwind. It withstands a wide temperature range of 176 °F (80 °C).

Features

  • Rubber resin provides excellent adherence
  • Withstands temperatures up to 176 °F (80 °C)
  • UL Listed and RoHS 2011/65/EU Compliant
  • Self-fusing rubber backing offers durability and resists tears as well as abrasion
Spec Sheet



Downloads

Specifications

Country of OriginBrazil
Maximum Operating Temperature (Celsius)80.0
Elongation at Break700
Overall Width (Imperial) UOMin
Tensile Strength (Metric)2068.4
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) MaterialRubber
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric)0.76
Dielectric Strength600.0
ApplicationElectrical Maintenance; Insulation
Overall Width (Metric)38.1
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius) UOMDegree
Dielectric Strength UOMV/mil
Tensile Strength (Imperial) UOMlb/in
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)176.0
Voltage Rating600 V
Overall Length (Metric)6.0
Total Tape Thickness without Liner (Imperial)30.0
FeaturesSelf-sticking
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial)22.0
Overall Length (Imperial) UOMft
Tensile Strength (Imperial)300.0
Overall Width (Imperial)1.5
Adhesive TypeNon-adhesive
Tensile Strength (Metric) UOMkPa
Backing (Carrier) Thickness (Imperial)0.29
Minimum Operating Temperature (Celsius)0.0
Backing (Carrier) Thickness (Imperial) UOMin
Insulation Resistance> 10^6 megohms
Shelf Life UOMYear
Tape GradeGeneral Use
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Application/IndustryCommercial Construction; Residential Construction; Wind Power
Product ColorBlack
Product MarketsElectrical Construction
Backing (Carrier) Thickness (Metric)0.76
