3M Products & Supplies

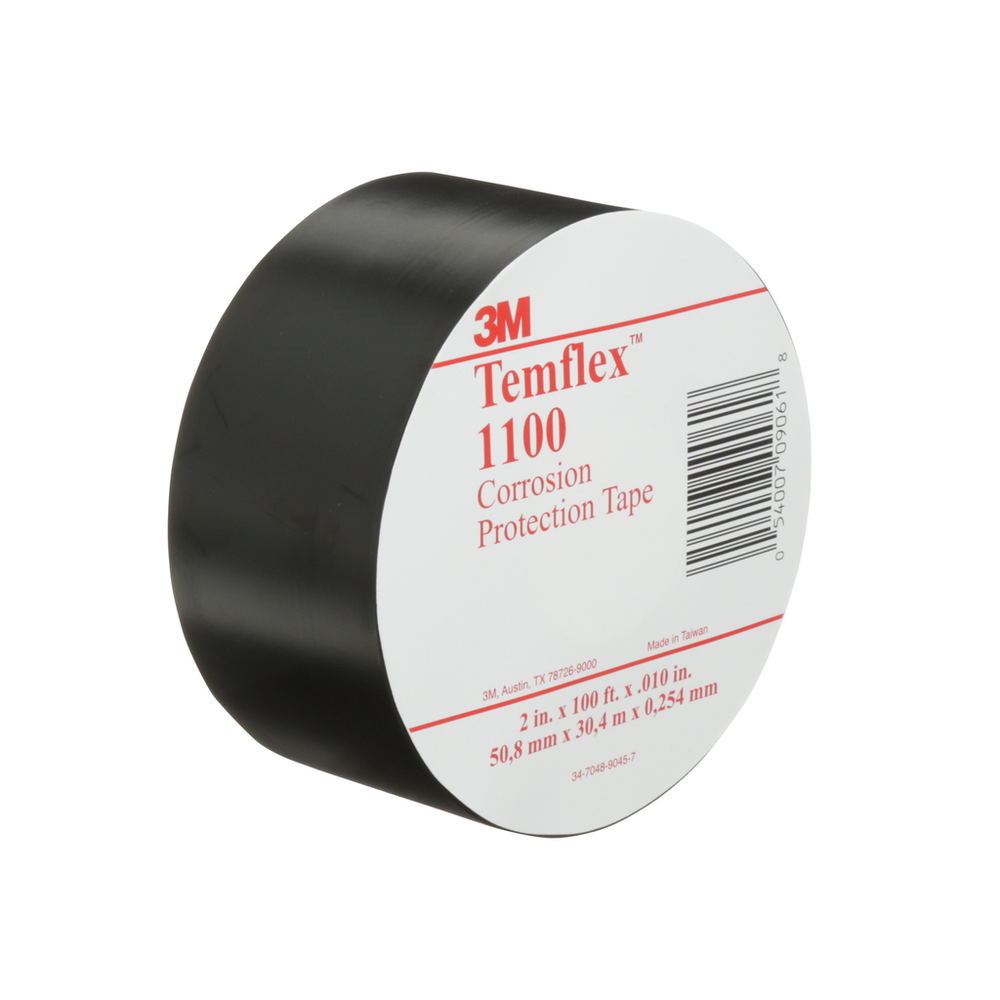

3M™ Temflex™ Vinyl Corrosion Protection Tape 1100, 2 in x 100 ft, Unprinted, Black, 24 rolls/Case - 7000005813

Sold As: 24-Pack
SKU: 7000005813
MPN: 7000005813
For an accurate lead time please contact us
UPC: 00054007090618
3M ID: 80008007611
5 Digit UPC: 9061
$318.25 ($13.26 / Count)
Hurry up! Current stock:

Product Description

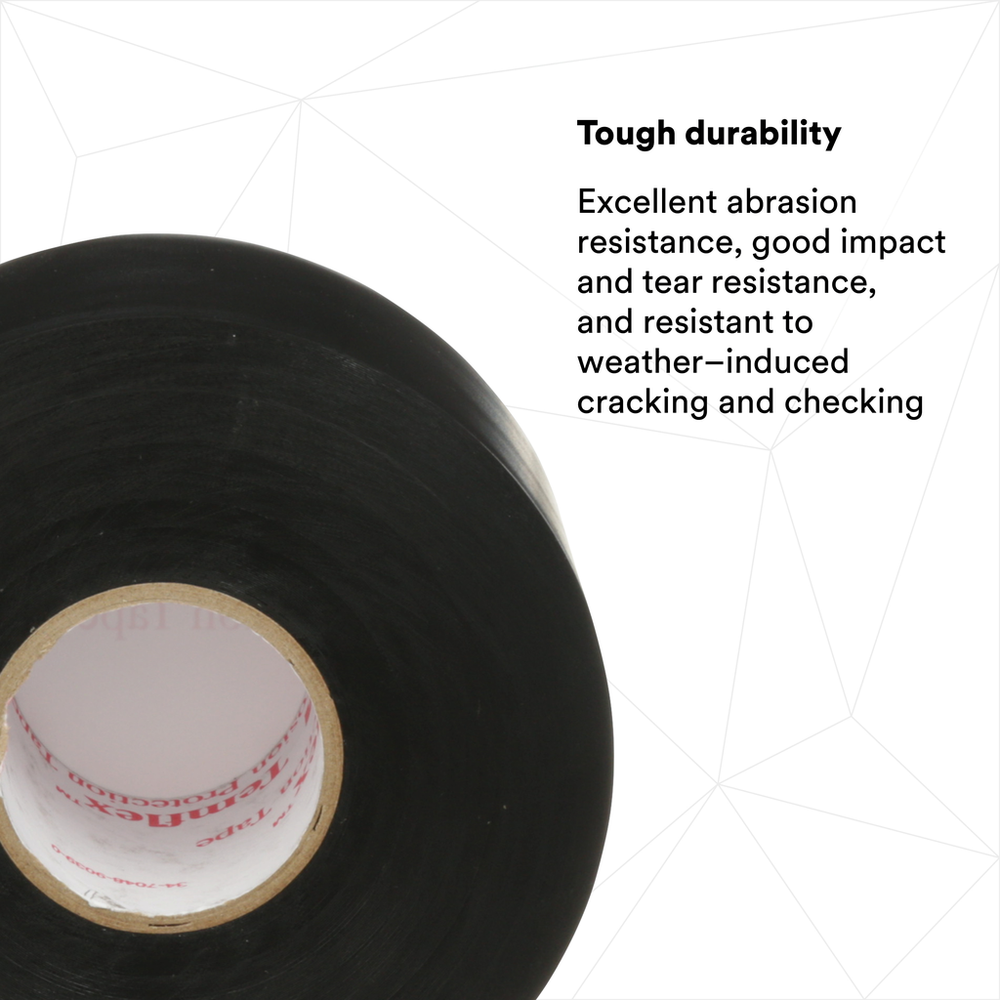

3M™ Temflex™ Tape 1100 is a general use, 10 mil thick, printed tape with corrosion protection. This tape is designed to help protect conduits, pipes and metallic cable jackets. The tape resists abrasion, punctures and electrolytic actions that are buried above or below the ground. It withstands a wide temperature range of 10 to 120 °F ( 12 to 49 °C).

Features

  • Printed
  • RoHS 2011/65/EU Compliant
  • Withstands a wide temperature range of 10 to 120 °F (-12 to 49 °C)
  • Comes in black color
  • Highly conformable, rubber-resin adhesive offers optimized adherence
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
ApplicationCorrosion Protection
Overall Length (Imperial)100.0
Overall Width (Metric) UOMmm
Adhesive TypeRubber
Overall Thickness (Metric)0.25
Overall Width (Imperial)2.0
Minimum Operating Temperature (Celsius)-12.0
Overall Length (Metric) UOMm
Minimum Operating Temperature (Celsius) UOMDegree
Adhesion Strength25.0
Overall Thickness (Imperial) UOMin
Tape TypeCorrosion Protection
Total Tape Thickness without Liner (Imperial)10.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)50.8
Overall Length (Imperial) UOMft
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)176.0
Overall Width (Imperial) UOMin
Performance LevelGeneral Use
Overall Thickness (Imperial)0.01
Total Tape Thickness without Liner (Metric)0.3
Maximum Installation Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)49.0
Elongation at Break200 %
Maximum Installation Temperature (Celsius)49.0
IndustriesConstruction, General Industrial, Metalworking
Maximum Installation Temperature (Celsius) UOMDegree
Specifications MetRoHS 2011/65/EU
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)-55.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Thickness (Metric) UOMmm
Maximum Installation Temperature (Fahrenheit)120.0
Overall Length (Metric)30.5
UV ResistantYes
