3M Products & Supplies

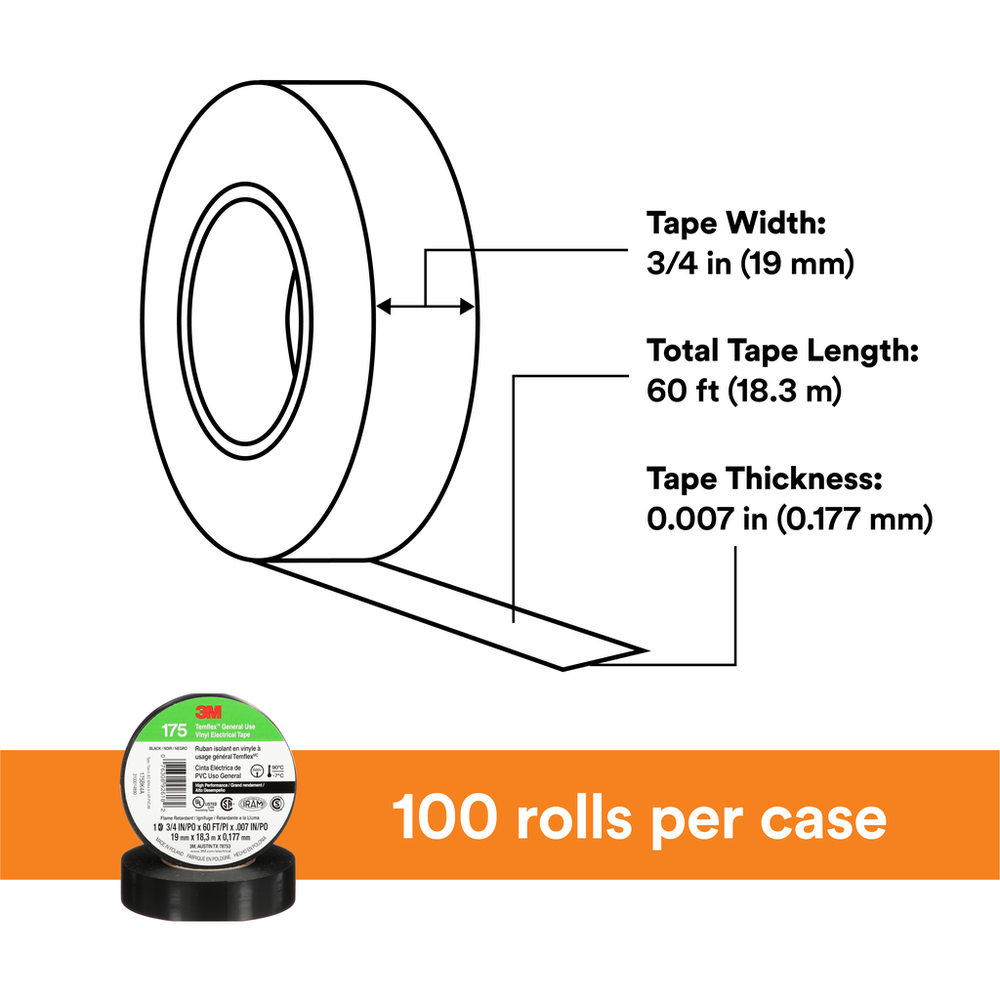

3M™ Temflex™ Vinyl Electrical Tape 175, Black, 3/4 in x 60 ft (19 mm x 18 m), 7 mil, 100 Rolls/Case - 7100188506

Sold As: 100-Pack
SKU: 7100188506
MPN: 7100188506
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00076308926182
3M ID: UU009668003
5 Digit UPC: 92618
$217.27 ($2.17 / Count)
Hurry up! Current stock:

Product Description

3M™ Temflex™ Vinyl Electrical Tape 175 is a 7 mil (0.178 mm) thick vinyl insulating tape formulated to handle a variety of demanding general-use applications, including cable jacket repair, harnessing and bundling cables, and mechanical protection on splices rated up to 600V. It is ideal for indoor and outdoor weather-protected conditions, with a temperature range of 19 °F (-7 °C) to 194 °F (90 °C) per CSA-C22.2 No. 197 standards. Made from durable polyvinyl chloride (PVC), this tape is both flame-retardant and cold-weather resistant, providing mechanical protection without adding unnecessary bulk. Thanks to its robust formulation, the tape can help reduce moisture ingress when used as an overwrap in combination with a rubber splicing or mastic tape product. Additionally, 3M Temflex 175 Tape is UL Listed and CSA Certified as an insulating tape, and it is manufactured without the use of solvents or volatile organic compounds (VOCs), underscoring its commitment to safety and environmental responsibility. Discover the insulating capabilities of 3M™ Temflex™ Vinyl Electrical Tape 175.

Features

  • FOR DEMANDING JOBS: Offers a robust option for demanding general-use tasks
  • TOUGH CONSTRUCTION: Made from resilient polyvinyl chloride (PVC)
  • FLAME-RETARDANT: For both indoor and outdoor weather-protected conditions, and meets flame-retardant standards
  • VERSATILE SOLUTION: Offers reliable insulating performance, cable jacket repair, harnessing and bundling cables, and mechanical protection on splices rated up to 600V
  • SOLVENTLESS ADHESIVE: Uses a solventless manufacturing process without compromising on performance
  • WIDE TEMPERATURE RANGE: Performs within an operating temperature range of 19 °F (-7 °C) to 194 °F (90 °C) per CSA-C22.2 No. 197 standards
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginPoland
Maximum Operating Temperature (Fahrenheit)194.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Voltage Rating600 V
Total Tape Thickness without Liner (Imperial)0.007
Tape GradeGeneral Use
Maximum Operating Temperature (Celsius)90.0
Minimum Operating Temperature (Celsius)-7.0
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)18.0
Overall Length (Imperial) UOMft
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric)0.177
Overall Length (Metric) UOMm
ApplicationInsulation
Insulation Resistance> 10^11 ohms
Overall Length (Imperial)60.0
Minimum Operating Temperature (Fahrenheit)19.0
Total Tape Thickness without Liner (Imperial) UOMin
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial)0.75
Shelf Life UOMYear
Adhesive TypeRubber
