3M Products & Supplies

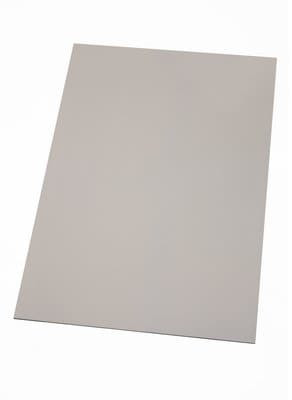

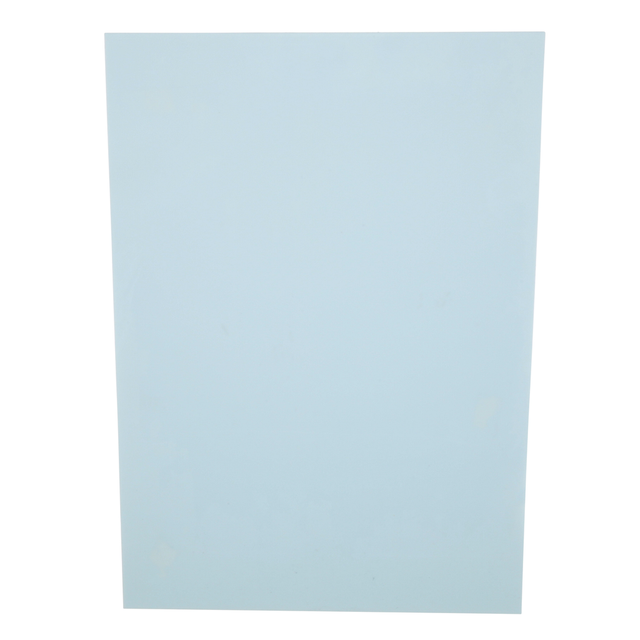

3M™ Thermally Conductive Acrylic Interface Pad 5571-15, 0.30 m x 20 m, 1 Roll Each - 7000100772

Sold As: 24-Pack
SKU: 7000100772
MPN: 7000100772
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 18806080065774
3M ID: WT300955794
5 Digit UPC: 6577
$16,200.61 ($675.03 / Count)
Hurry up! Current stock:

Product Description

3M™ Thermally Conductive Acrylic Interface Pad 5571 is designated to provide a preferential heat transfer path between heat generating components like integrated circuit chip and heat spreaders as aluminum heat sink.

Features

  • Good electrical insulation properties
  • Soft compliant material allows for pressure relaxation, preventing high pressure zones on components
  • Good softness and conformability even to non-flat IC surfaces and heat spreading blocks
  • No siloxane outgassing or oil bleeding
  • Passes UL 94 V-0 flame retardance test
  • High thermal conductivity, 2.0 W/m-K on plane direction
Spec Sheet



Downloads

Specifications

Shelf Life24.0 Month
Country of OriginSouth Korea
Specifications MetUL 94 V-0
Overall Width (Imperial) UOMin
Product ColorYellowish White
Thermal Conductivity (Z Axis)2.1 W/m-K
Product UsageBattery Cooling Plates; Busbar; Displays; EV Batteries; Electronic Control Units; Inverters; Junction Boxes; LED Lighting Systems
Thermal Conductivity (X-Y Axis)0.0
Overall Width (Metric) UOMmm
Overall Length (Metric)20.0
Overall Width (Metric)300.0
ApplicationElectrical Insulation, Heat Dissipation, Heat Spreading, Heat Transfer, Thermal Management
Units per Case1.0 Roll
Total Tape Thickness without Liner (Metric)1.5
Overall Width (Imperial)11.81
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric) UOMm
Dielectric Strength17.0 kV/mm
Base MaterialAcrylic
Total Tape Thickness without Liner (Imperial)59.055
Overall Length (Imperial) UOMft
Overall Length (Imperial)65.62
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesive TypeNon-adhesive
