3M Products & Supplies

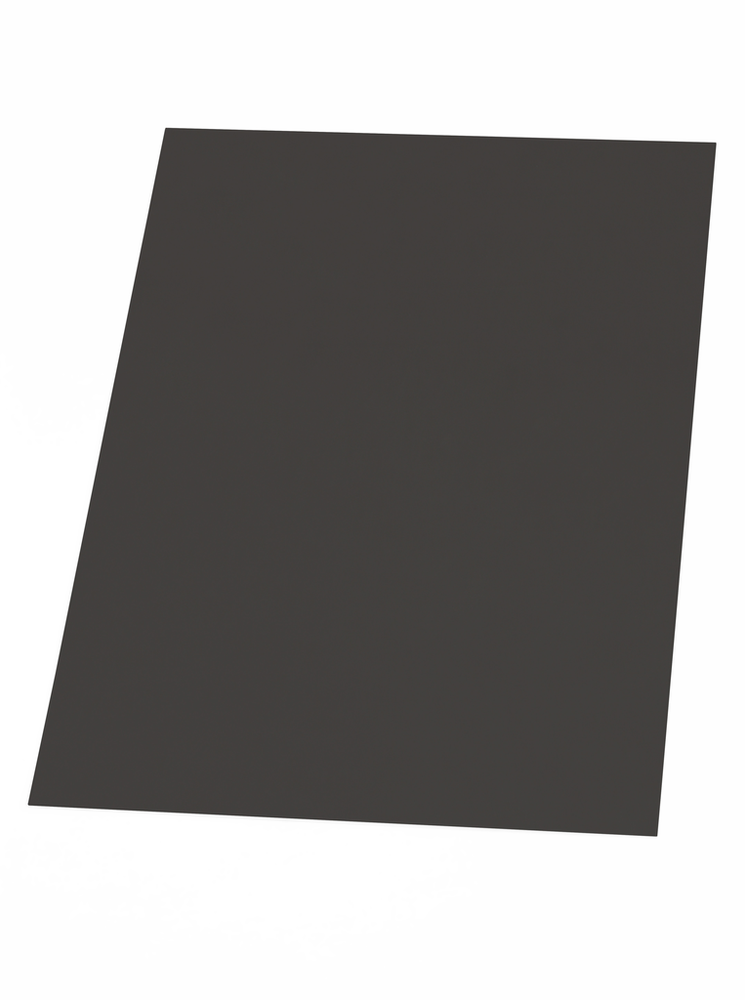

3M™ Thermally Conductive Interface Pad Sheet 5595S, 210 mm x 300 mm 1.0 mm, 40/Case - 7010305060

Sold As: 200-Pack
SKU: 7010305060
MPN: 7010305060
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00048011570266
3M ID: WX300902201
5 Digit UPC: 57026
$7,716.48 ($38.58 / Count)
Hurry up! Current stock:

Product Description

3M™ Thermally Conductive Silicone Interface Pad 5595S is a soft, silicone elastomer with thermal conductivity of 1.6 W/m-K. Conformable at low pressure to minimize stress on components and fill gaps. Good dielectric properties.

Features

  • Good thermal conductivity in a soft silicone polymer base
  • The product tack is such that a mechanical means to support the pad in a final assembly is required
  • Good thermal stability of the base polymer with excellent softness of the thermal pad
  • This "S" version has a permanent PEN film, 9 micrometer thick, on 1 side to provide for a non-tacky surface, increased puncture resistance, ease of handling and rework

Specifications

Shelf Life0.0
Country of OriginSouth Korea
Overall Length (Imperial)11.81
Product ColorGray
Overall Width (Imperial) UOMin
Product UsageCOF Chips; EV Batteries; LED Lighting Systems; Power Modules
Dielectric Strength0.0 NP
Overall Length (Metric)300.0
Thermal Conductivity (Z Axis)1.6 W/m-K
Total Tape Thickness without Liner (Metric)1.0
Overall Width (Imperial)8.27
Overall Width (Metric)210.0
Total Tape Thickness without Liner (Imperial) UOMmil
ApplicationHeat Dissipation, Heat Transfer
Units per Case40.0
Thermal Conductivity (X-Y Axis)0.0
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)39.37
Overall Length (Imperial) UOMin
Adhesive TypeNon-adhesive
Overall Length (Metric) UOMmm
Specifications MetUL 94 V-0
Total Tape Thickness without Liner (Metric) UOMmm
Base MaterialSilicone Polymer
