3M Products & Supplies

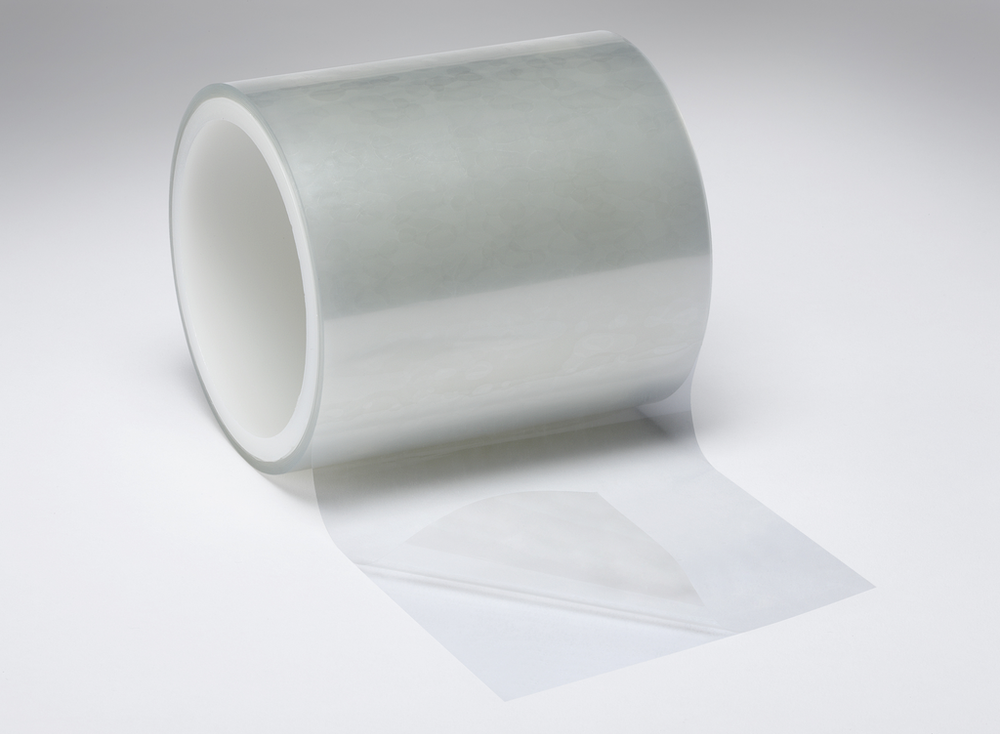

3M™ Ultra Clean Laminating Adhesive 502FL, 3 in x 60 yd - 7100169214

Sold As: 6-Pack
SKU: 7100169214
MPN: 7100169214
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115531101
3M ID: 70006461936
5 Digit UPC: 53110
$5,756.66 ($959.44 / Count)
Hurry up! Current stock:

Product Description

3M™ Ultra Clean Laminating Adhesive 50XFL Series is an adhesive with polyester liner for contamination-critical adhesive applications on very smooth surfaces. Low outgassing, corrosion, odor, and non-fogging. Acrylic for high shear strength at room temp and short exposure to high temp.

Features

  • Low odor helps improve worker handling
  • Helps reduce risk of chemical contamination which can cause head corrosion and media fogging that may cause hard drive failures.
  • Reduces fogging or condensation in vehicle or aerospace window applications.
  • Low outgassing at escalated temperatures & very low extractable ionic content.
  • Low water vapor transmission rate provides effective barrier for water vapor
  • Low extractable ionic content
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Backing (Carrier) Thickness (Metric)50.8
Maximum Operating Temperature (Celsius)70.0
Primary Liner Thickness (Imperial)0.001
Backing (Carrier) Thickness (Metric) UOMmicron
Minimum Operating Temperature (Fahrenheit)60.0
Specifications MetRoHS 2011/65/EU
Primary Liner Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Overall Length (Metric)54.864
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial) UOMmil
Primary Liner Thickness (Imperial) UOMin
Primary LinerPET
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)3.0
Primary Liner Thickness (Metric)0.0254
Units per Case1.0
Tensile Strength (Metric)0.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)76.2
Secondary Liner Thickness (Imperial)2.0
Total Tape Thickness without Liner (Imperial)2.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial)0.0
Secondary Liner Thickness (Imperial) UOMmil
Secondary Liner Thickness (Metric) UOMmm
Overall Length (Imperial)60.0
Units per Case UOMRoll
IndustriesAerospace, Automotive, Electronics, General Industrial
Number of Adhesive SidesSingle-sided
Product ColorTransparent
Shelf Life UOMMonth
Secondary Liner ColorTransparent
Maximum Operating Temperature (Fahrenheit)158.0
Adhesive TypeAcrylic
Primary Liner ColorTransparent
Total Tape Thickness without Liner (Metric)0.051
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Celsius)28.0
Overall Width (Imperial) UOMin
Secondary Liner Thickness (Metric)0.0508
