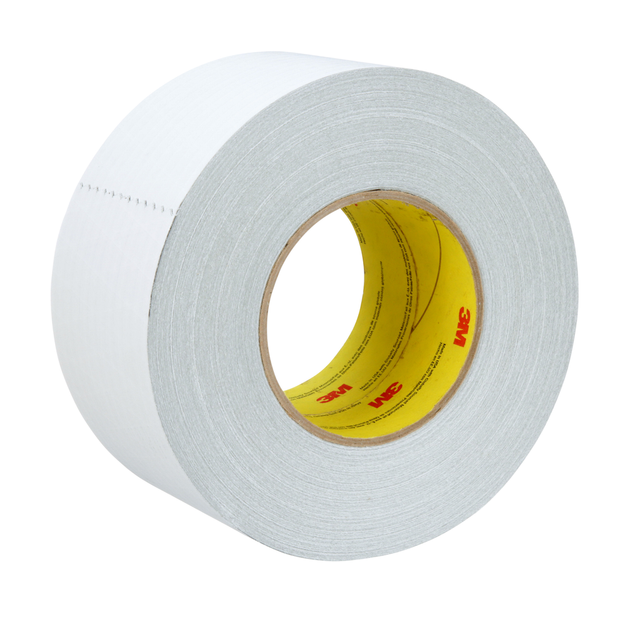

3M™ Venture Tape™ ASJ Facing Tape 1540CW, White, 72 mm x 45.7 m, 16 Rolls/Case - 7100043768

Name: 3M™ Venture Tape™ ASJ Facing Tape 1540CW, White, 72 mm x 45.7 m, 16 Rolls/Case - 7100043768
Brand: 3M Products & Supplies
SKU: 7100043768
Price: 536.12 USD
Availability: InStock

Sold As: 16-Pack

SKU: 7100043768

MPN: 7100043768

Stock Item: Stock items typically ship within 2-3 business days

UPC: 00750351154036

3M ID: 70008906979

5 Digit UPC: 15403

$536.12 ($33.51 / Count)

Hurry up! Current stock:

Quantity:

Product Description

3M™ Venture Tape™ ASJ Facing Tape 1540CW is specifically designed for cold weather and high humidity application. Coated with a proprietary, pressure-sensitive solvent acrylic adhesive with a kraft, scrim and foil laminate backing, this tape is easy to apply. Ideal for use as a closure seal on all service jacket (ASJ) faced duct piping systems or as a vapor seal on ASJ-faced duct board and pipe insulation. It is highly durable, high-puncture and tear-resistant, and helps inhibits mold. Plus, it provides solid holding power for extended periods while resisting lifting and curling, and applies easily to curved and irregular surfaces. Tape is UL723 Classified (15/0 Flame/Smoke Rating), and meets ASTM1136, Type I, II, III and IV. Venture into a stronger hold and a simple application with 3M™ Venture Tape™ ASJ Facing Tape 1540CW.

Features

Flexible backing conforms well to curved or irregular surfaces
White kraft, scrim and foil laminate backing is ideal as a vapor seal on ductboard and pipe insulation

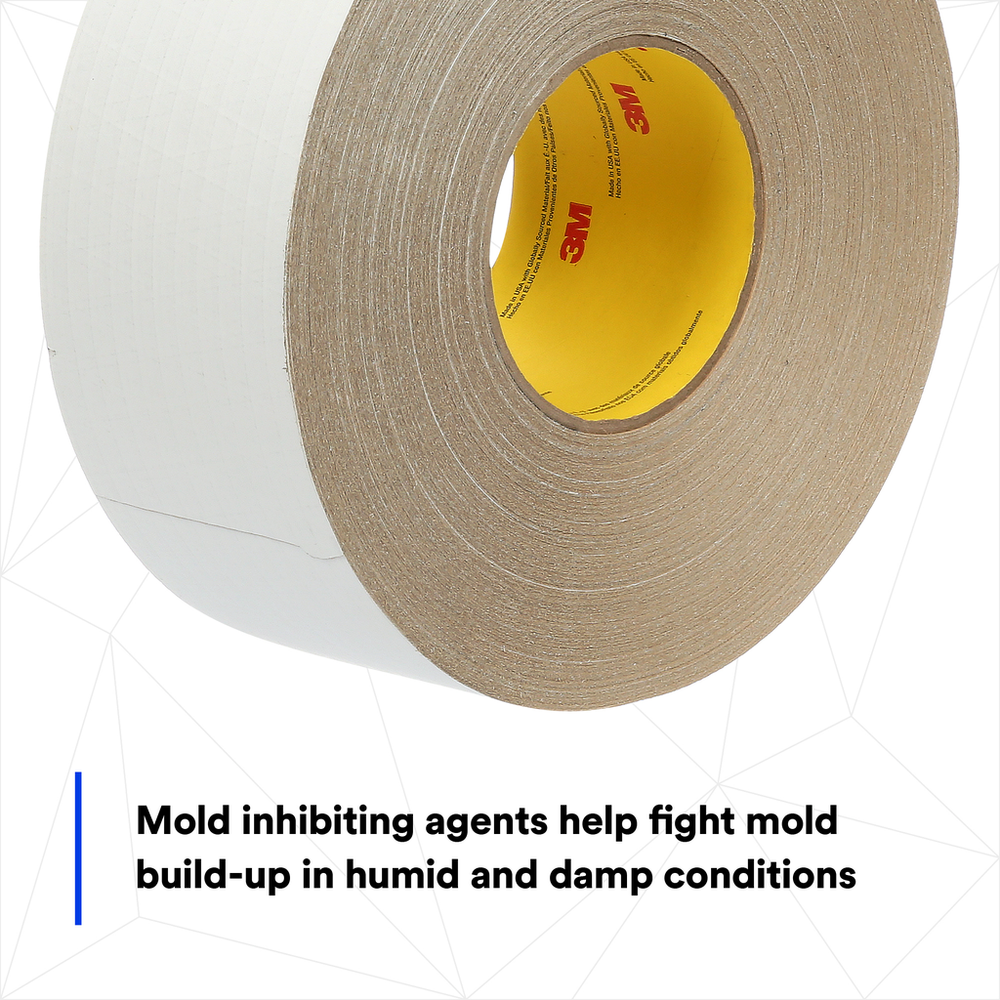

Mold inhibitor helps maintain adhesive strength and effectiveness
Easy to install on site without special tools or application methods
Cold weather acrylic adhesive is specifically designed to perform in cold weather conditions

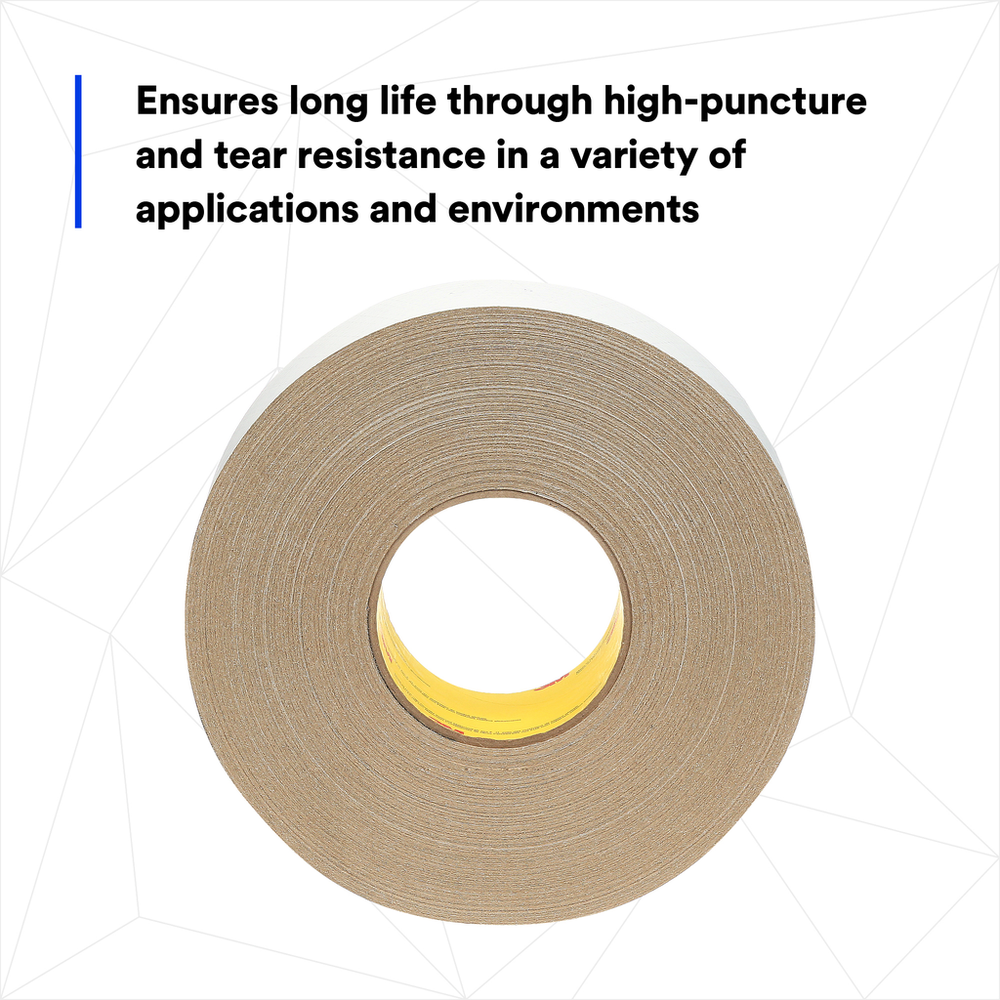

High puncture and tear resistance ensure long life and durability in a variety of applications and environments

Spec Sheet

Downloads

Document Brochures

Document Instructions

Spec Sheet

Safety Data Sheet

Specifications

Shelf Life	730
Country of Origin	United States
Backing (Carrier) Thickness (Metric) UOM	mm
Overall Width (Imperial) UOM	in
Product Color	White
Elongation at Break	2
Overall Length (Metric) UOM	m
Backing (Carrier) Thickness (Imperial)	6.5
Tensile Strength (Imperial)	40.0
Tensile Strength (Metric) UOM	N/100mm
Backing (Carrier) Thickness (Metric)	0.16
Application	Exterior Seams & Joints; Interior Seams & Joints; Sealing HVAC & Duct Work
Tensile Strength (Metric)	70.1
Adhesive Type	Acrylic
Shelf Life UOM	Month
Overall Length (Imperial) UOM	yd
Tensile Strength (Imperial) UOM	lb/in
Overall Length (Metric)	45.7
Overall Length (Imperial)	50.0
Overall Width (Imperial)	2.83
Overall Width (Metric) UOM	mm
Overall Width (Metric)	72.0
Backing (Carrier) Thickness (Imperial) UOM	mil
