3M Products & Supplies

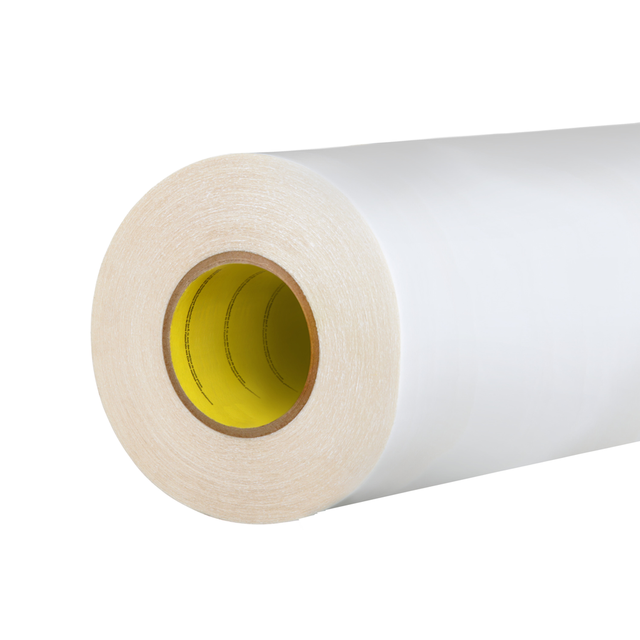

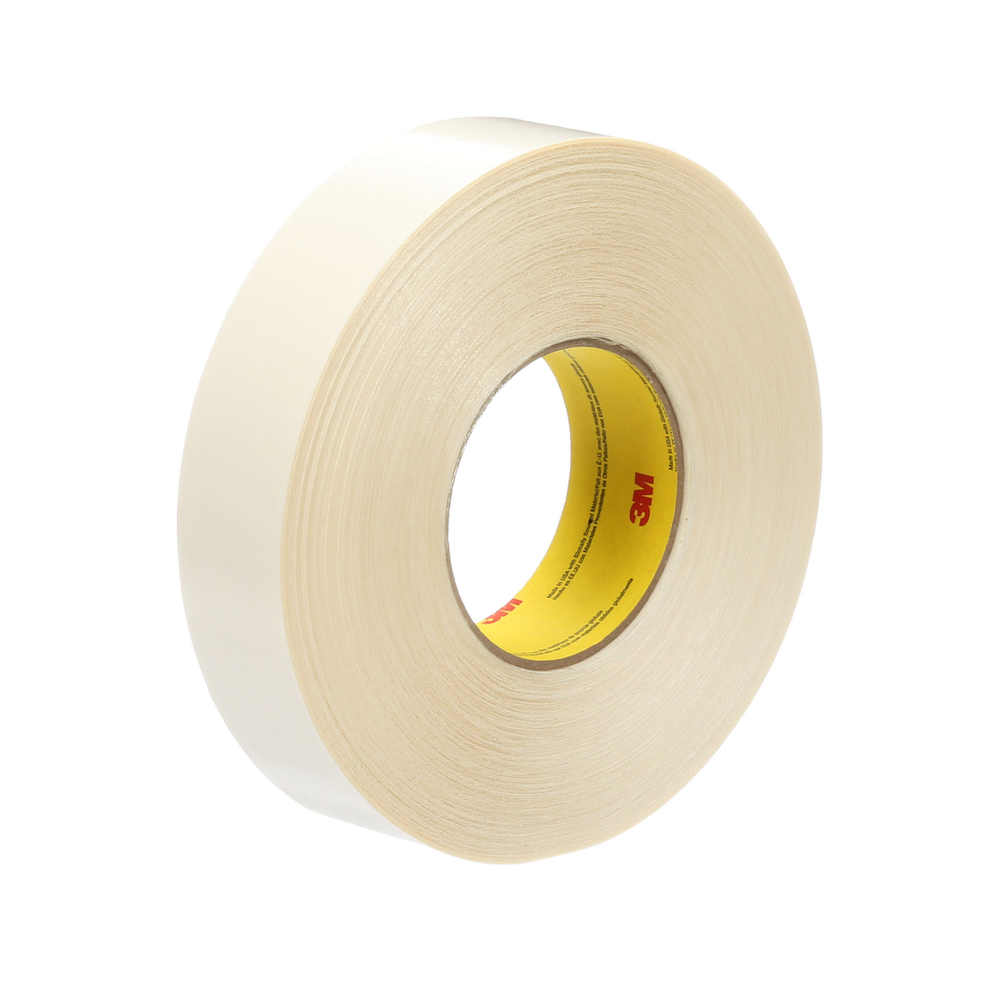

3M™ Venture Tape™ Double Coated Tape 514CW, 1 in x 250yd, 0.5 mil, 12 Roll/Case - 7010378749

Sold As: 12-Pack
SKU: 7010378749
MPN: 7010378749
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128961919
3M ID: 70008919121
5 Digit UPC: 96191
$756.62 ($63.05 / Count)
Hurry up! Current stock:

Product Description

3M™ Venture Tape™ Double Coated PET Tape 514CW is a high performance tape with a polyester backing and acrylic adhesive. This tape bonds to a wide variety of metals, high surface energy plastics and composite materials. We engineered this tape for demanding bonding applications and designed it to feature excellent UV and temperature resistance.

Features

  • Features excellent UV and temperature resistance
  • High performance tape specifically designed for tough bonding applications
  • Provides excellent peel, tack and shear strength
  • Versatile acrylic adhesive bonds to a wide variety of substrates
  • Performs well at high and low temperatures
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Face Side Adhesive Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.09
Face Side Adhesive Thickness (Metric)0.04
Overall Width (Imperial) UOMin
Overall Width (Metric)25.4
Back Side Adhesive Thickness (Metric)0.04
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Length (Imperial)250.0
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric) UOMmm
Back Side Adhesive Thickness (Metric) UOMmm
Overall Width (Imperial)1.0
Product ColorWhite
Backing (Carrier) MaterialPolyester
Tensile Strength (Imperial) UOMlb/in
Face Side Adhesive Thickness (Imperial)1.5
Total Tape Thickness without Liner (Imperial)3.5
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric)228.6
Adhesive TypeAcrylic
Units per Case12.0
Back Side Adhesive Thickness (Imperial)1.5
Tensile Strength (Imperial)7.5
Face Side Adhesive Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMyd
