3M Products & Supplies

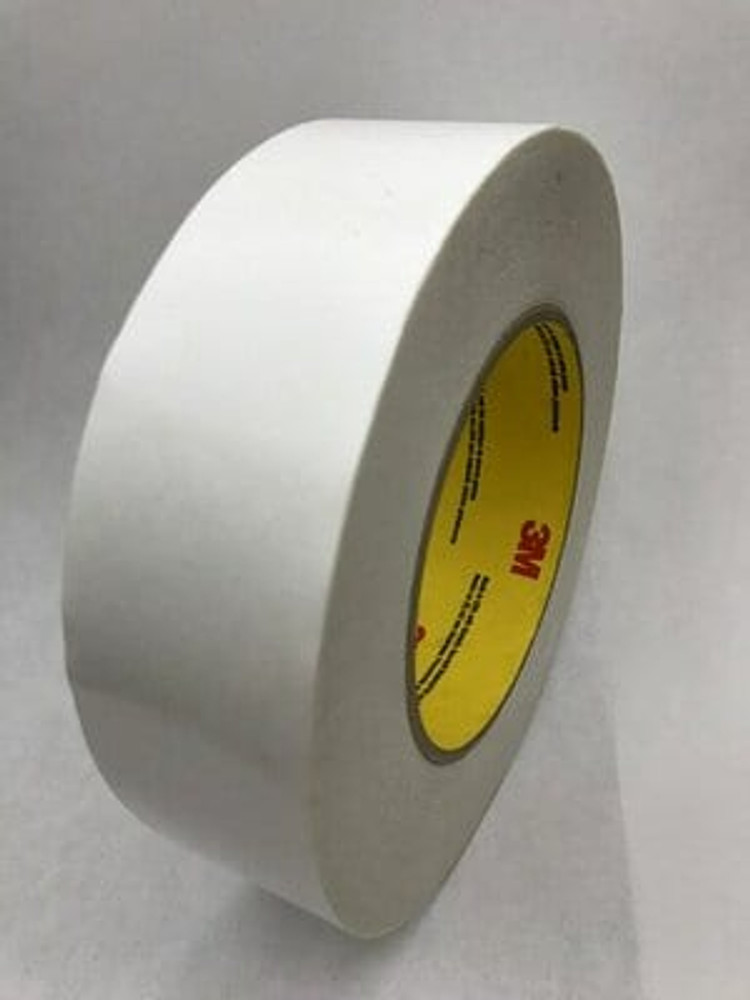

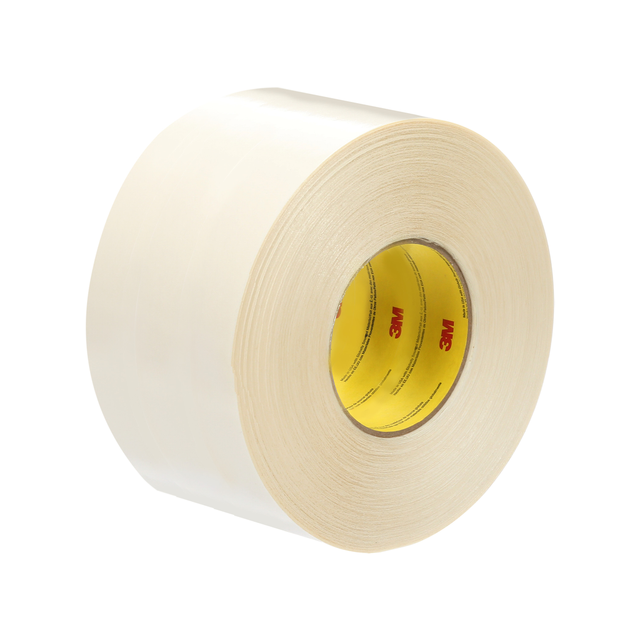

3M™ Venture Tape™ Double Coated Tape 514CW-FD053, 37.12 mm X 54.8 m, 0.01 mm, 32 Roll/Case - 7010376444

Sold As: 32-Pack
SKU: 7010376444
MPN: 7010376444
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00076308984243
3M ID: 70006777307
5 Digit UPC: 98424
$746.65 ($23.33 / Count)
Hurry up! Current stock:

Product Description

3M™ Venture Tape™ Double Coated PET Tape 514CW is a high performance tape with a polyester backing and acrylic adhesive. This tape bonds to a wide variety of metals, high surface energy plastics and composite materials. We engineered this tape for demanding bonding applications and designed it to feature excellent UV and temperature resistance.

Features

  • High performance tape specifically designed for tough bonding applications
  • Features excellent UV and temperature resistance
  • Provides excellent peel, tack and shear strength
  • Performs well at high and low temperatures
  • Versatile acrylic adhesive bonds to a wide variety of substrates
Spec Sheet



Downloads

Specifications

Shelf Life365
Country of OriginUnited States
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.09
Backing (Carrier) MaterialPolyester
Back Side Adhesive Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)3.5
Overall Length (Metric) UOMm
Back Side Adhesive Thickness (Imperial)1.5
Overall Length (Imperial)59.93
Total Tape Thickness without Liner (Metric) UOMmm
Back Side Adhesive Thickness (Metric)0.04
Overall Width (Imperial) UOMin
Face Side Adhesive Thickness (Metric)0.04
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Imperial)1.46
Tensile Strength (Imperial)7.5
Face Side Adhesive Thickness (Metric) UOMmm
Product ColorWhite
Overall Width (Metric)37.12
Face Side Adhesive Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial) UOMyd
IndustriesConstruction, Electronics, General Industrial, MRO
Tensile Strength (Imperial) UOMlb/in
Overall Length (Metric)54.8
Face Side Adhesive Thickness (Imperial)1.5
Adhesive TypeAcrylic
