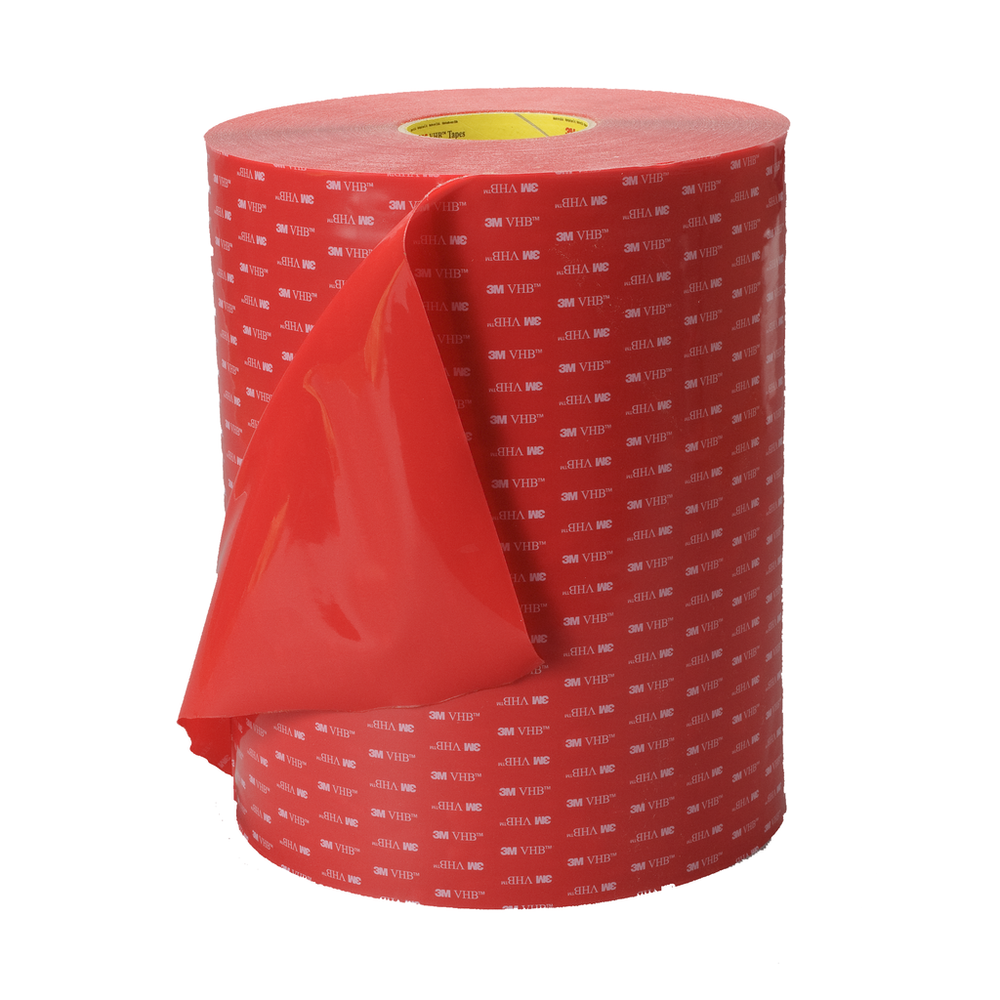

3M™ VHB™ Tape 4905, Clear, 23 in x 72 yd, 20 mil, 1 Roll/Case - 7100145022

SKU: 7100145022
MPN: 7100145022
Lead Time: 10 working days.
UPC: 021200430060
3M ID: 70006278553
5 Digit UPC: 43006
$4,986.51 each
Hurry up! Current stock:

Product Description

Dream, Design, Deliver with our 3M™ VHB™ Tape 4905. It is a clear, 0.020 in (0.5 mm) tape with general purpose acrylic adhesive. It can replace rivets, welds and screws. The fast and easy to use permanent bonding method provides high strength and long-term durability. It offers design flexibility with its viscoelasticity and powerful ability to bond to a variety of surfaces.

Features

  • Can replace mechanical fasteners (rivets, welds, screws) or liquid adhesives for transparent applications
  • Allows the use of thinner, lighter weight and dissimilar materials
  • Pressure sensitive adhesive bonds on contact to provide immediate handling strength
  • Creates a permanent seal against water, moisture and more
  • Fast and easy-to-use permanent bonding method provides high strength and long-term durability
  • Clear, 0.020 in (0.5 mm) with general purpose acrylic adhesive
  • Virtually invisible fastening keeps surfaces smooth
  • Eliminate drilling, grinding, refinishing, screwing, welding and associated clean-up

Downloads

Specifications

Overall Length (Imperial)72 yd
Maximum Operating Temperature (Fahrenheit)200 Degree Fahrenheit
Product ColorTransparent
Product FormRoll
Overall Width (Imperial)23 in
Backing (Carrier) Thickness (Imperial)5 mil
Backing Thickness (Imperial)5 mil
Overall Length (Metric)65.8 m
Product Key4905
Adhesive TypeAcrylic
Application Temperature-Environment50 Degrees Fahrenheit
Product Number4905
SubstrateMedium-High Surface Energy, (42-50 Dynes/cm) - High Surface Energy, (400-1100 Dynes/cm) - Medium Surface Energy, (38-39 Dynes/cm)
Substrate 2High Surface Energy Plastic - Paint - Sealed Wood - Metal - Glass
Substrate 1Sealed Wood - High Surface Energy Plastic - Glass - Paint - Metal
Overall Thickness (Metric)0.5 mm
Overall Width (Metric)584.2 mm
Application Temperature-Environment (Metric)10 Degree Celsius
Primary Liner Thickness (Imperial)5 mil
Temperature Resistance - Initial300 Degree Fahrenheit
Core Size (Imperial)3 in
Overall Thickness (Imperial)20 mil
Primary LinerPolyethylene (PE) Film
