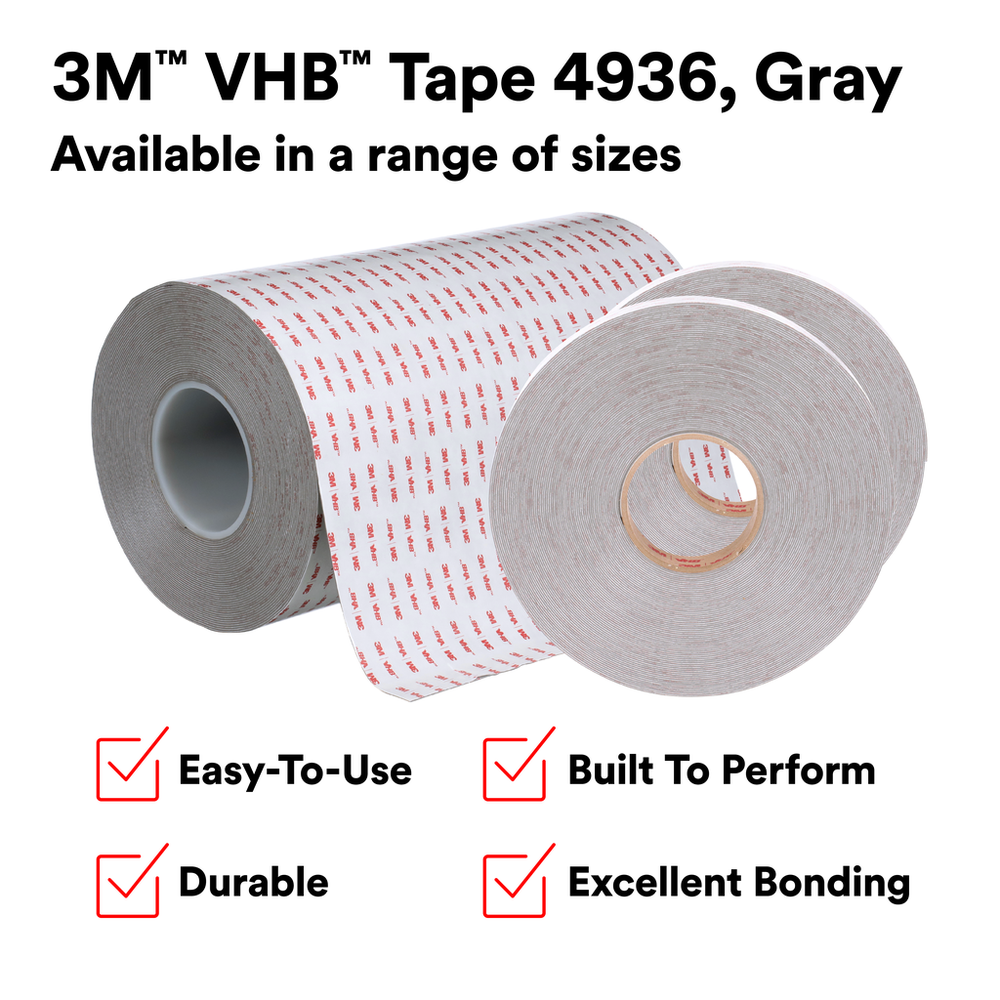

3M™ VHB™ Tape 4936, Gray, 10 in x 72 yd, 25 mil, 1 Roll/Case - 7010535831

Name: 3M™ VHB™ Tape 4936, Gray, 10 in x 72 yd, 25 mil, 1 Roll/Case - 7010535831
Brand: 3M Products & Supplies
SKU: 7010535831
Price: 3154.69 USD
Availability: InStock

SKU: 7010535831

MPN: 7010535831

Made to Order: For a lead time estimate, please send your request to [email protected]

3M ID: CY998785927

5 Digit UPC: #VALUE!

$3,154.69 each

Hurry up! Current stock:

Quantity:

Product Description

3M™ VHB™ Tape 4936 is a double-sided tape comprised of a multi-purpose acrylic adhesive with a conformable, foam core backed on a 3 mil thick 54# densified kraft paper liner, delivering a total thickness of 25 mil (0.6 mm) when applied. This tape provides an excellent balance of strength, conformability, and adhesion to high and medium surface energy materials, making it a smooth, seamless alternative to rivets, welds, and screws. These unique attributes equip 3M™ VHB™ Tape 4936 to take on many bonding and sealing applications, including attaching metal panels to frames and stiffener attachment. Discover new ways to design thanks to the versatility, viscoelasticity, and powerful bonding potential of 3M™ VHB™ Tape 4936.

Features

MULTI-SURFACE: Intended to adhere to a variety of High Surface Energy (HSE) and Medium Surface Energy (MSE) substrates; these may include aluminum, stainless steel, galvanized steel, acrylic, polycarbonate, and ABS

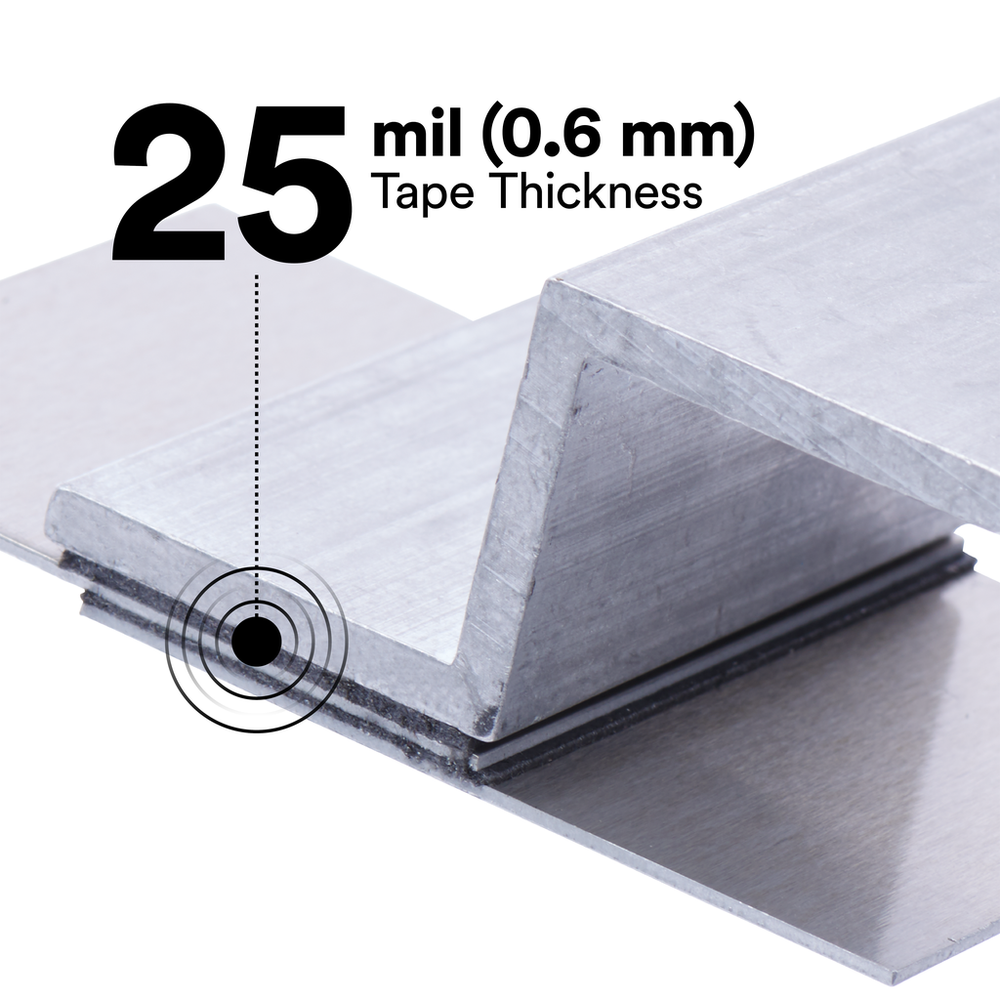

SMOOTH AND SEAMLESS: With a thickness of 25 mil (0.6 mm), this tape is designed as an alternative to mechanical fasteners, such as rivets, welds, and screws, or liquid adhesives
A VERSATILE OPTION: Commonly used in applications across a variety of markets, such as transportation, appliance, electronics, construction, sign and display, and general industrial
BUILT TO PERFORM: Delivers excellent shear strength, conformability, and surface adhesion thanks to an acrylic foam core and multi-purpose adhesive

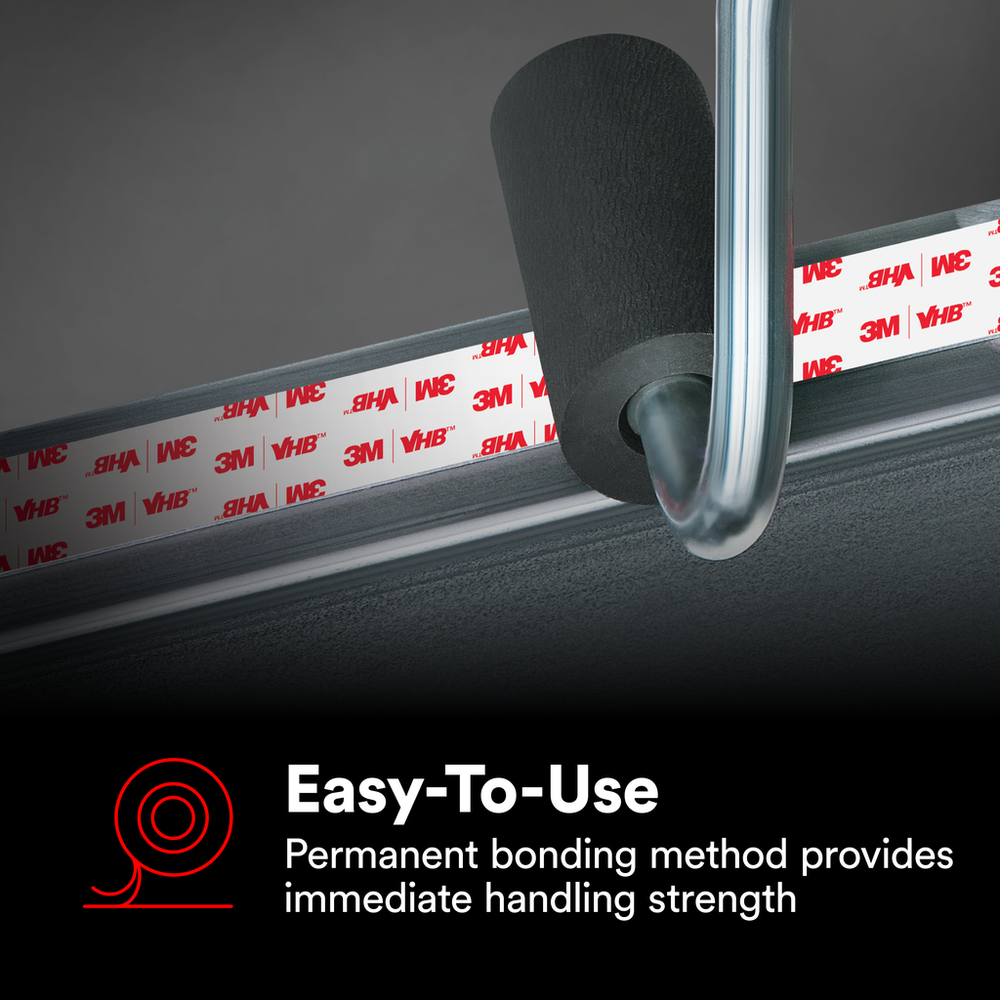

FAST AND EASY-TO-USE: A permanent bonding method that provides immediate handling strength; no need to fixture or wait for a cure
DURABLE: Offers excellent outdoor durability and performance, resisting both high and low temperatures, as well as moisture

Spec Sheet

Downloads

Document Brochure 2

Spec Sheet

Document Brochure 1

Specifications

Shelf Life	730
Country of Origin	United States
Industries	Appliance, Construction, Electronics, General Industrial, Metalworking, Signage
Maximum Operating Temperature (Celsius) UOM	Degree
Core Size (Imperial)	3.0
Application	Trim & Molding Attachment; Wall & Door Panel Attachment
Overall Width (Imperial) UOM	in
Overall Width (Imperial)	10.0
Maximum Operating Temperature (Celsius)	149.0
Total Tape Thickness without Liner (Metric) UOM	mm
Overall Width (Metric)	254.0
Overall Length (Imperial)	72.0
Product Color	Gray
Adhesive Type	Acrylic
Overall Length (Imperial) UOM	yd
Total Tape Thickness without Liner (Metric)	0.6
Overall Width (Metric) UOM	mm
Overall Length (Metric)	65.84
Foam Type	Conformable
Overall Length (Metric) UOM	m
Indoor/Outdoor	Indoor/Outdoor
Core Size (Imperial) UOM	in
